text version of content this owner's manual page from owners manual to the vehicle Fiat Barchetta, year of production 1995 - 2005:

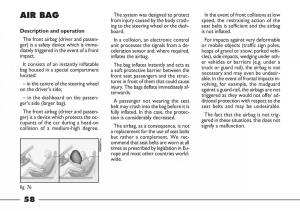

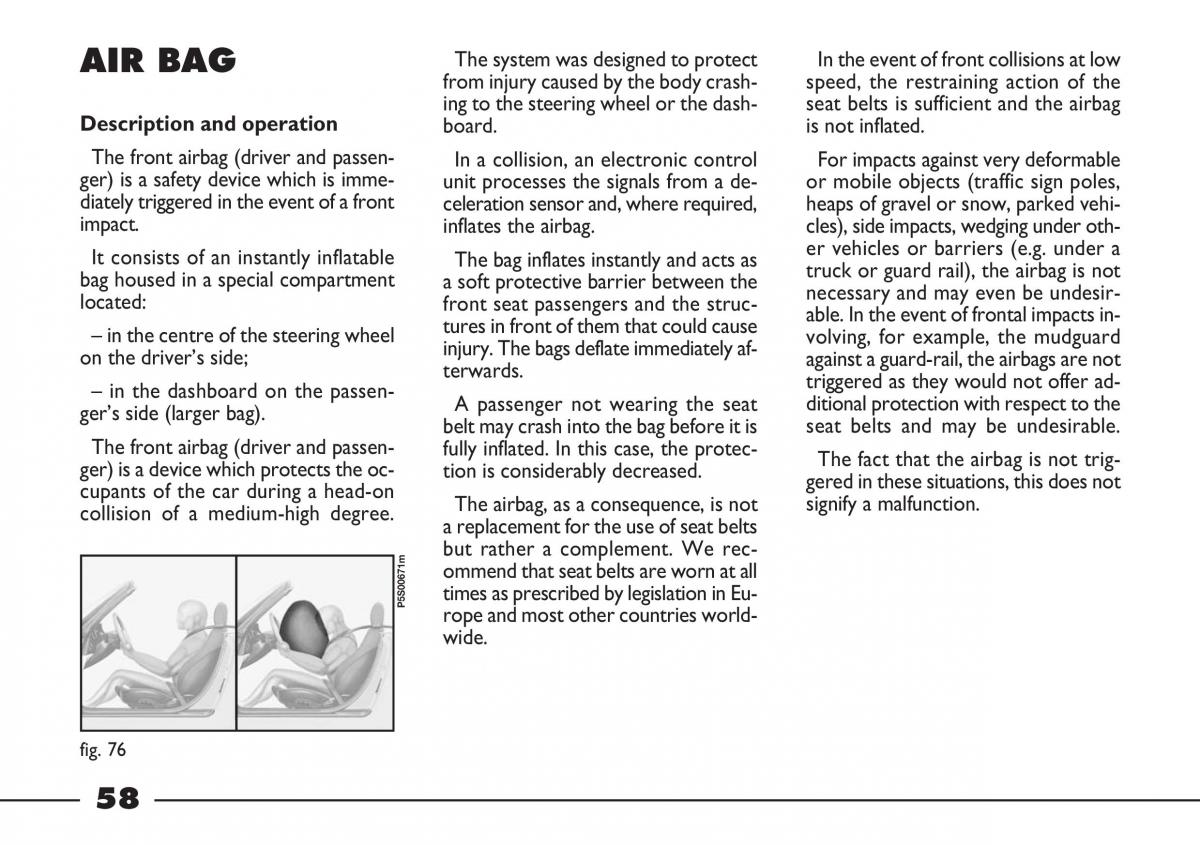

AIR BAG The system was designed to protect In the event of front collisions at low from injury caused by the body crash- speed, the restraining action of the ing to the steering wheel or the dash- seat belts is sufficient and the airbag Description and operation board. is not inflated. The front airbag (driver and passen- In a collision, an electronic controlFor impacts against very deformable ger) is a safety device which is imme- unit processes the signals from a de- or mobile objects (traffic sign poles, diately triggered in the event of a front celeration sensor and, where required, heaps of gravel or snow, parked vehi- impact. inflates the airbag. cles), side impacts, wedging under oth- It consists of an instantly inflatable er vehicles or barriers (e.g. under a The bag inflates instantly and acts as truck or guard rail), the airbag is not bag housed in a special compartment a soft protective barrier between the necessary and may even be undesir- located: front seat passengers and the struc- tures in front of them that could cause able. In the event of frontal impacts in- – in the centre of the steering wheel injury. The bags deflate immediately af- volving, for example, the mudguard on the driver’s side; terwards. against a guard-rail, the airbags are not – in the dashboard on the passen- triggered as they would not offer ad- ditional protection with respect to the ger’s side (larger bag). A passenger not wearing the seat belt may crash into the bag before it is seat belts and may be undesirable. The front airbag (driver and passen- fully inflated. In this case, the protec- The fact that the airbag is not trig- ger) is a device which protects the oc- tion is considerably decreased. gered in these situations, this does not cupants of the car during a head-on signify a malfunction. The airbag, as a consequence, is not collision of a medium-high degree. a replacement for the use of seat belts but rather a complement. We rec- ommend that seat belts are worn at all P5S00671mtimes as prescribed by legislation in Eu- rope and most other countries world- wide. fig. 76 58
