text version of content this owner's manual page from owners manual to the vehicle Seat Altea, year of production 2004 - 2015:

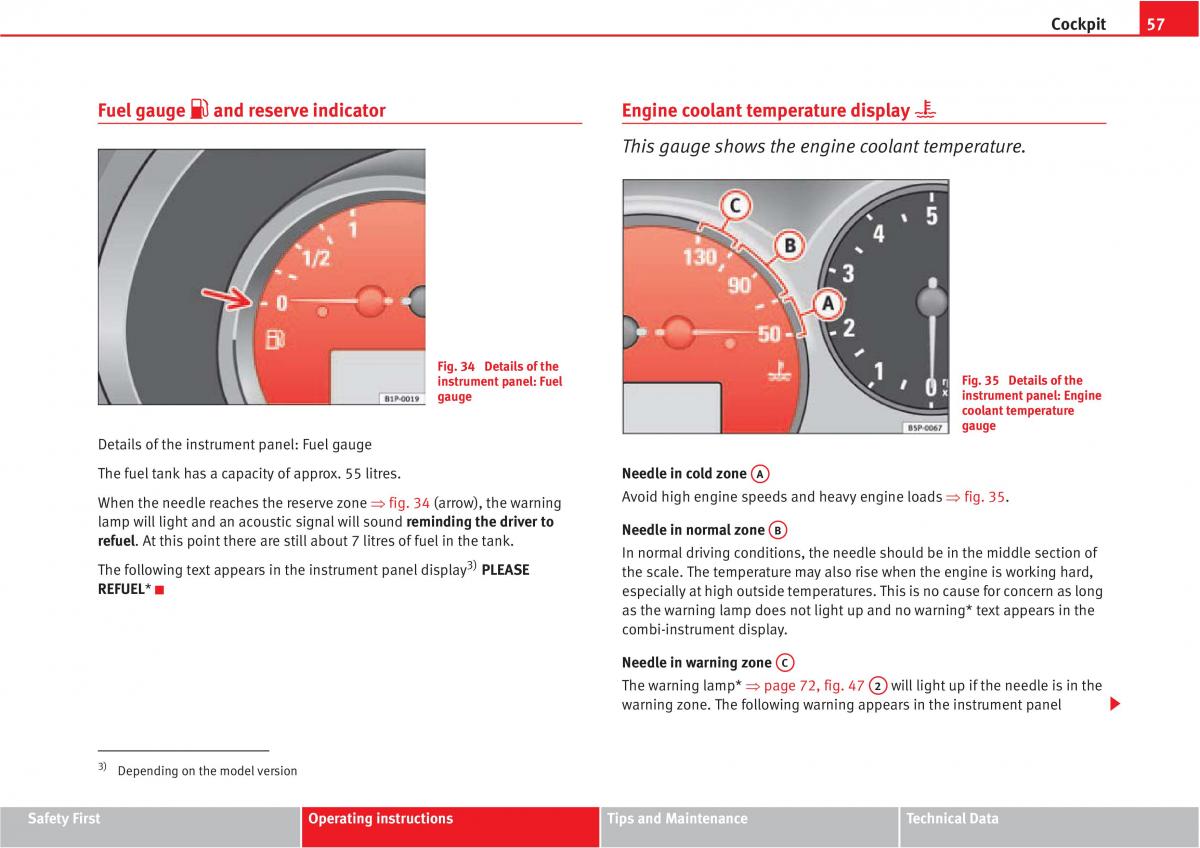

Cockpit 57
Fuel gauge z and reserve indicator Engine coolant temperature display v
This gauge shows the engine coolant temperature.
Fig. 34 Details of the
instrument panel: Fuel Fig. 35 Details of the
gauge instrument panel: Engine
coolant temperature
gauge
Details of the instrument panel: Fuel gauge
The fuel tank has a capacity of approx. 55 litres. Needle in cold zone A
A
When the needle reaches the reserve zone fig. 34 (arrow), the warning Avoid high engine speeds and heavy engine loadsfig. 35.
lamp will light and an acoustic signal will sound reminding the driver to B
refuel. At this point there are still about 7 litres of fuel in the tank.Needle in normal zone A
In normal driving conditions, the needle shoul d be in the middle section of
The following text appears in the instrument panel display 3) PLEASE the scale. The temperature may also rise when the engine is working hard,
REFUEL* especially at high outside temperatures. This is no cause for concern as long
as the warning lamp does not light up and no warning* text appears in the
combi-instrument display.
C
Needle in warning zone A
The warning lamp* page72, fig. 47 2 will light up if the needle is in the
A
warning zone. The following warning appears in the instrument panel
3)Depending on the model version
