Maintenance

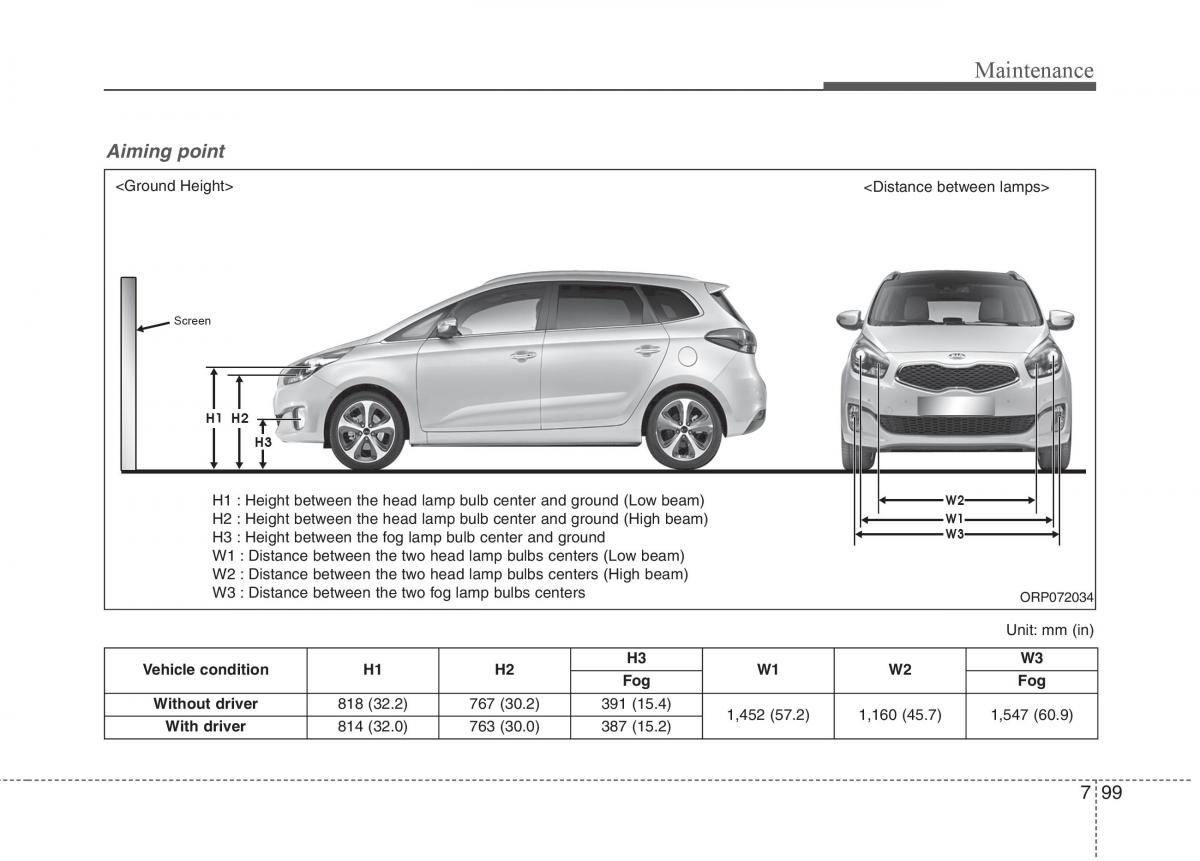

Aiming point
H1 : Height between the head lamp bulb center and ground (Low beam)
H2 : Height between the head lamp bulb center and ground (High beam)
H3 : Height between the fog lamp bulb center and ground
W1 :Distance between the two head lamp bulbs centers (Low beam)
W2 :Distance between the two head lamp bulbs centers (High beam)
W3 :Distance between the two fog lamp bulbs centers ORP072034
Unit: mm (in)
H3 W3
Vehicle condition H1 H2 W1 W2
Fog Fog
Without driver 818 (32.2) 767 (30.2) 391 (15.4)
1,452 (57.2)1,160 (45.7) 1,547 (60.9)
With driver 814 (32.0) 763 (30.0) 387 (15.2)
799
