text version of content this owner's manual page from owners manual to the vehicle KIA Ceed, year of production 2012:

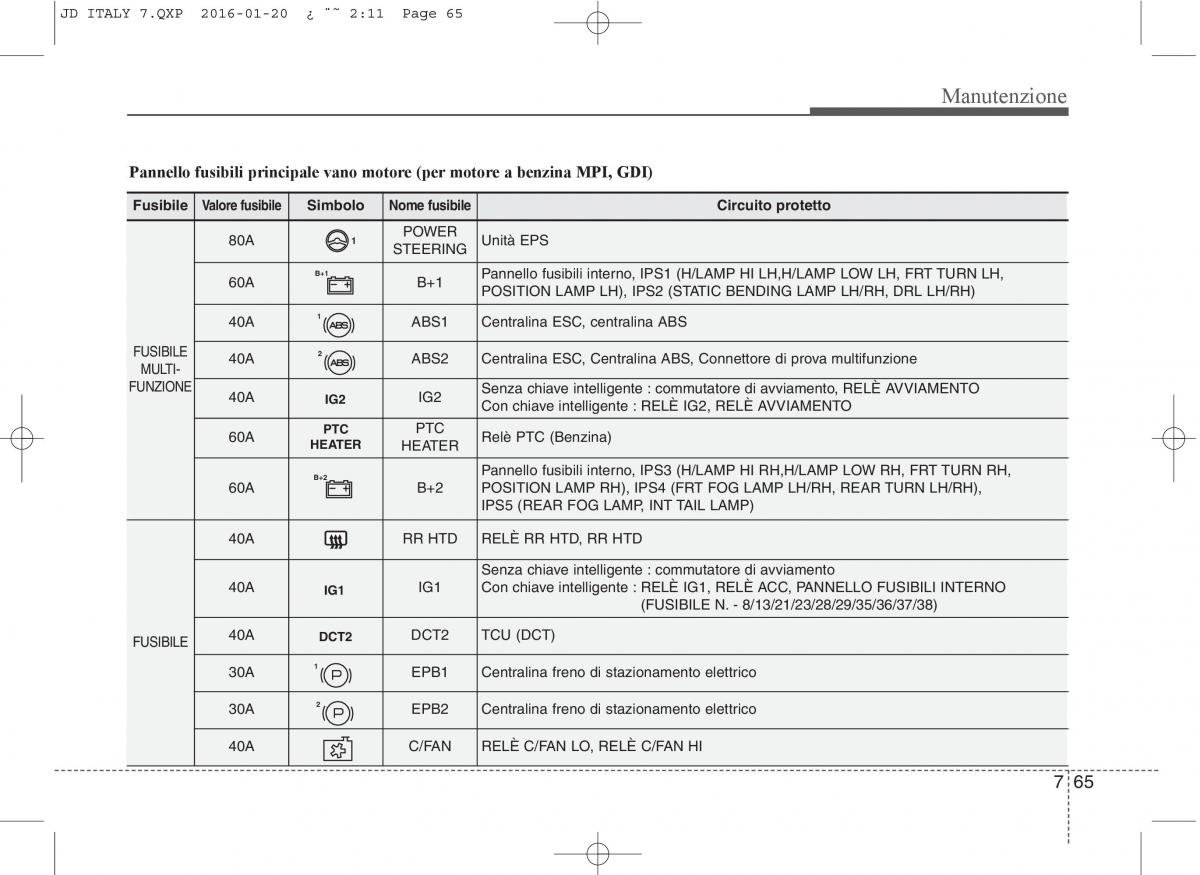

JD ITALY 7.QXP 2016-01-20 ¿ ¨˜ 2:11 Page 65 Manutenzione Pannello fusibili principale vano motore (per motore a benzina MPI, GDI) Fusibile Valore fusibile Simbolo Nome fusibile Circuito protetto 80A 1 POWER Unità EPS STEERING 60A B+1 B+1 Pannello fusibili interno, IPS1 (H/LAMP HI LH,H/LAMP LOW LH, FRT TURN LH, POSITION LAMP LH), IPS2 (STATIC BENDING LAMP LH/RH, DRL LH/RH) 40A 1 ABS1 Centralina ESC, centralina ABS FUSIBILE 40A 2 ABS2 Centralina ESC, Centralina ABS, Connettore di prova multifunzione MULTI- FUNZIONE 40A IG2 Senza chiave intelligente : commutatore di avviamento, RELÈ AVVIAMENTO IG2 Con chiave intelligente : RELÈ IG2, RELÈ AVVIAMENTO 60A PTC PTC Relè PTC (Benzina) HEATER HEATER B+2 Pannello fusibili interno, IPS3 (H/LAMP HI RH,H/LAMP LOW RH, FRT TURN RH, 60A B+2 POSITION LAMP RH), IPS4 (FRT FOG LAMP LH/RH, REAR TURN LH/RH), IPS5 (REAR FOG LAMP, INT TAIL LAMP) 40A RR HTD RELÈ RR HTD, RR HTD Senza chiave intelligente : commutatore di avviamento 40A IG1 IG1 Con chiave intelligente : RELÈ IG1, RELÈ ACC, PANNELLO FUSIBILI INTERNO (FUSIBILE N.- 8/13/21/23/28/29/35/36/37/38) FUSIBILE 40A DCT2 DCT2 TCU (DCT) 30A 1 EPB1 Centralina freno di stazionamento elettrico 30A 2 EPB2 Centralina freno di stazionamento elettrico 40A C/FAN RELÈ C/FAN LO, RELÈ C/FAN HI 765

Download PDF

Click here to download a pdf file with an instruction manual for KIA Ceed
year of production from: 2012

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

KIA Ceed II 2 manuale del proprietario
pages 579 - 585

KIA Ceed II 2 manuale del proprietario
page 582 / 649

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

KIA Ceed II 2 manuale del proprietario / page 582
