owners manual VW Golf VII

owners manual VW Golf VII - year of production: 2012 - VW Golf VII 7 SportWagen Variant owners manual EN

Document: pdf (6.46 MB) 439 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

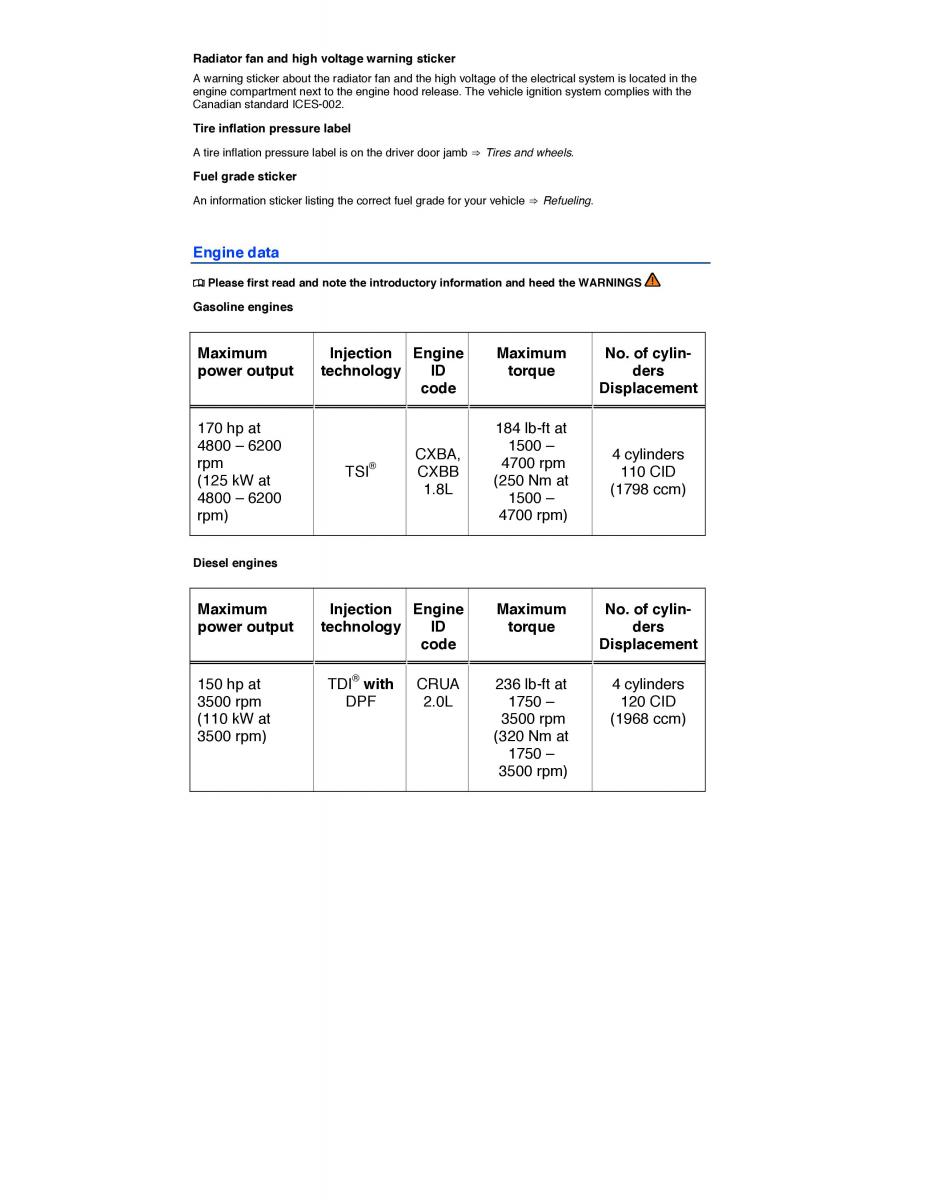

Radiator fan and high voltage warning sticker A warning sticker about the radiator fan and the high voltage of the electrical system is located in the engine compartment next to the engine hood release. The vehicle ignition system complies with the Canadian standard ICES-002. Tire inflation pressure label A tire inflation pressure label is on the driver door jamb ⇒ Tires and wheels. Fuel grade sticker An information sticker listing the correct fuel grade for your vehicle ⇒ Refueling. Engine data ¤ Please first read and note the introductory information and heed the WARNINGS Gasoline engines Maximum Injection Engine Maximum No. of cylin- power output technology ID torque ders code Displacement 170 hp at 184 lb-ft at 4800 – 6200 CXBA, 1500 – 4 cylinders rpm TSI® CXBB 4700 rpm 110 CID (125 kW at 1.8L (250 Nm at (1798 ccm) 4800 – 6200 1500 – rpm) 4700 rpm) Diesel engines Maximum Injection Engine Maximum No. of cylin- power output technology ID torque ders code Displacement ® 150 hp at TDI with CRUA 236 lb-ft at 4 cylinders 3500 rpm DPF 2.0L 1750 – 120 CID (110 kW at 3500 rpm (1968 ccm) 3500 rpm) (320 Nm at 1750 – 3500 rpm)
