owners manual KIA Ceed

owners manual KIA Ceed - year of production: 2012 - KIA Ceed II 2 manuale del proprietario IT

Document: pdf (40.48 MB) 649 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle KIA Ceed, year of production 2012:

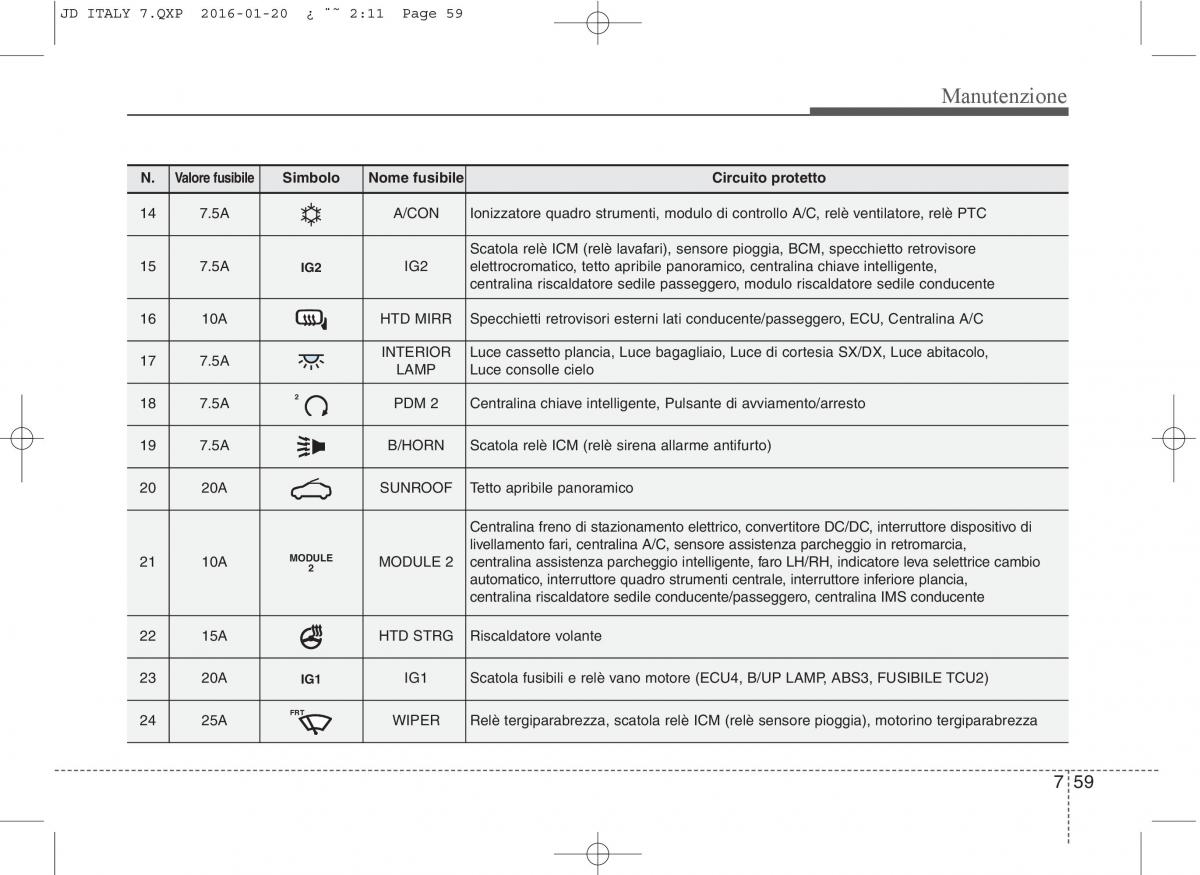

JD ITALY 7.QXP 2016-01-20 ¿ ¨˜ 2:11 Page 59 Manutenzione N. Valore fusibile Simbolo Nome fusibile Circuito protetto 14 7.5A A/CON Ionizzatore quadro strumenti, modulo di controllo A/C, relè ventilatore, relè PTC Scatola relè ICM (relè lavafari), sensore pioggia, BCM, specchietto retrovisore 15 7.5A IG2 IG2 elettrocromatico, tetto apribile panoramico, centralina chiave intelligente, centralina riscaldatore sedile passeggero, modulo riscaldatore sedile conducente 16 10A HTD MIRR Specchietti retrovisori esterni lati conducente/passeggero, ECU, Centralina A/C 17 7.5A INTERIOR Luce cassetto plancia, Luce bagagliaio, Luce di cortesia SX/DX, Luce abitacolo, LAMP Luce consolle cielo 18 7.5A 2 PDM 2 Centralina chiave intelligente, Pulsante di avviamento/arresto 19 7.5A B/HORN Scatola relè ICM (relè sirena allarme antifurto) 20 20A SUNROOF Tetto apribile panoramico Centralina freno di stazionamento elettrico, convertitore DC/DC, interruttore dispositivo di livellamento fari, centralina A/C, sensore assistenza parcheggio in retromarcia, 21 10A MODULE MODULE 2 centralina assistenza parcheggio intelligente, faro LH/RH, indicatore leva selettrice cambio 2 automatico, interruttore quadro strumenti centrale, interruttore inferiore plancia, centralina riscaldatore sedile conducente/passeggero, centralina IMS conducente 22 15A HTD STRG Riscaldatore volante 23 20A IG1 IG1 Scatola fusibili e relè vano motore (ECU4, B/UP LAMP, ABS3, FUSIBILE TCU2) 24 25A FRT WIPER Relè tergiparabrezza, scatola relè ICM (relè sensore pioggia), motorino tergiparabrezza 759
