text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

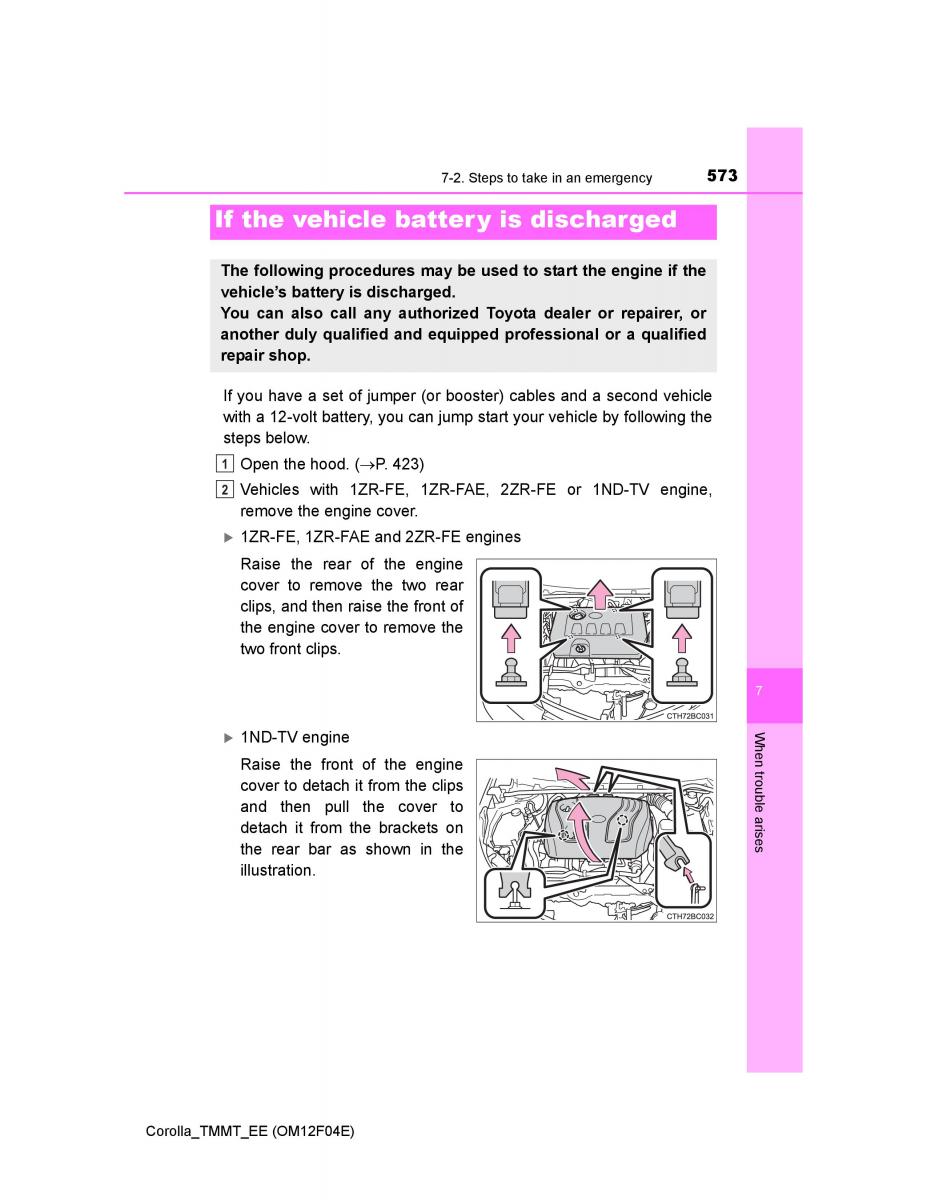

7-2. Steps to take in an emergency573 If the vehicle battery is discharged The following procedures may be used to start the engine if the vehicle’s battery is discharged. You can also call any authorized Toyota dealer or repairer, or another duly qualified and equipped professional or a qualified repair shop. If you have a set of jumper (orboo ster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below. 1 Open the hood. (P. 423) 2 Vehicles with 1ZR-FE, 1ZR-FAE, 2ZR-FE or 1ND-TV engine, remove the engine cover.  1ZR-FE, 1ZR-FAE and 2ZR-FE engines Raise the rear of the engine cover to remove the two rear clips, and then raise the front of the engine cover to remove the two front clips. 7  1ND-TV engine W hen Raise the front of the engine troub cover to detach it from the clips and then pull the cover to le detach it from the brackets on arise the rear bar as shown in the s illustration. Corolla_TMMT_EE (OM12F04E)
