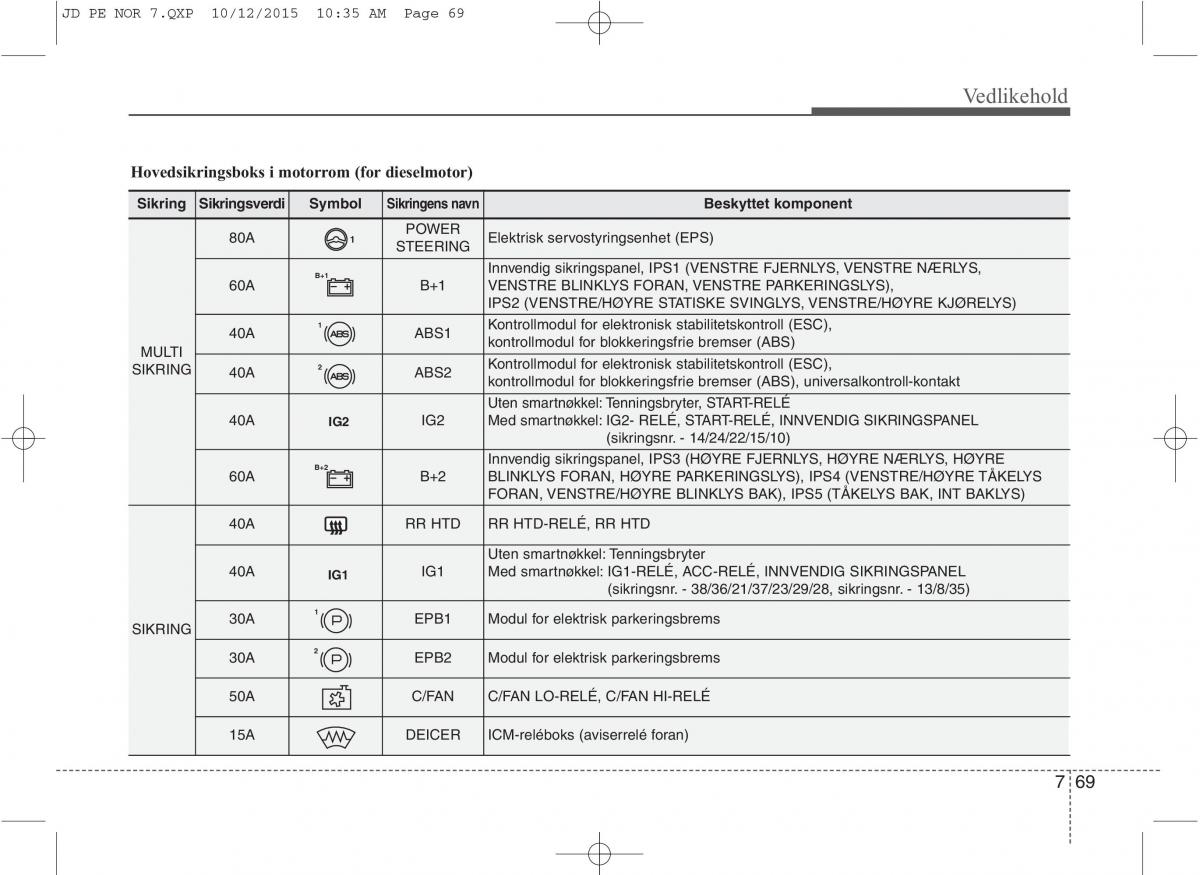

JD PE NOR 7.QXP 10/12/2015 10:35 AM Page 69
Vedlikehold
Hovedsikringsboks i motorrom (for dieselmotor)
Sikring Sikringsverdi Symbol Sikringens navn Beskyttet komponent
80A POWER Elektrisk servostyringsenhet (EPS)
1 STEERING
B+1 Innvendig sikringspanel, IPS1 (VENSTRE FJERNLYS, VENSTRE NÆRLYS,
60A B+1 VENSTRE BLINKLYS FORAN, VENSTRE PARKERINGSLYS),
IPS2 (VENSTRE/HØYRE STATISKE SVINGLYS, VENSTRE/HØYRE KJØRELYS)
40A 1 ABS1 Kontrollmodul for elektronisk stabilitetskontroll (ESC),
MULTI kontrollmodul for blokkeringsfrie bremser (ABS)
SIKRING 40A 2 ABS2 Kontrollmodul for elektronisk stabilitetskontroll (ESC),
kontrollmodul for blokkeringsfrie bremser (ABS), universalkontroll-kontakt
Uten smartnøkkel:Tenningsbryter, START-RELÉ
40A IG2 IG2 Med smartnøkkel: IG2- RELÉ, START-RELÉ, INNVENDIG SIKRINGSPANEL
(sikringsnr. - 14/24/22/15/10)
Innvendig sikringspanel, IPS3 (HØYRE FJERNLYS, HØYRE NÆRLYS, HØYRE
60A B+2 B+2 BLINKLYS FORAN, HØYRE PARKERINGSLYS), IPS4 (VENSTRE/HØYRE TÅKELYS
FORAN, VENSTRE/HØYRE BLINKLYS BAK), IPS5 (TÅKELYS BAK, INT BAKLYS)
40A RR HTD RR HTD-RELÉ, RR HTD
Uten smartnøkkel:Tenningsbryter
40A IG1 IG1 Med smartnøkkel:IG1-RELÉ, ACC-RELÉ, INNVENDIG SIKRINGSPANEL
(sikringsnr. - 38/36/21/37/23/29/28, sikringsnr. - 13/8/35)
30A 1 EPB1 Modul for elektrisk parkeringsbrems
SIKRING
30A 2 EPB2 Modul for elektrisk parkeringsbrems
50A C/FAN C/FAN LO-RELÉ, C/FAN HI-RELÉ
15A DEICER ICM-reléboks (aviserrelé foran)
769
