text version of content this owner's manual page from owners manual to the vehicle Lexus GX, year of production 2009:

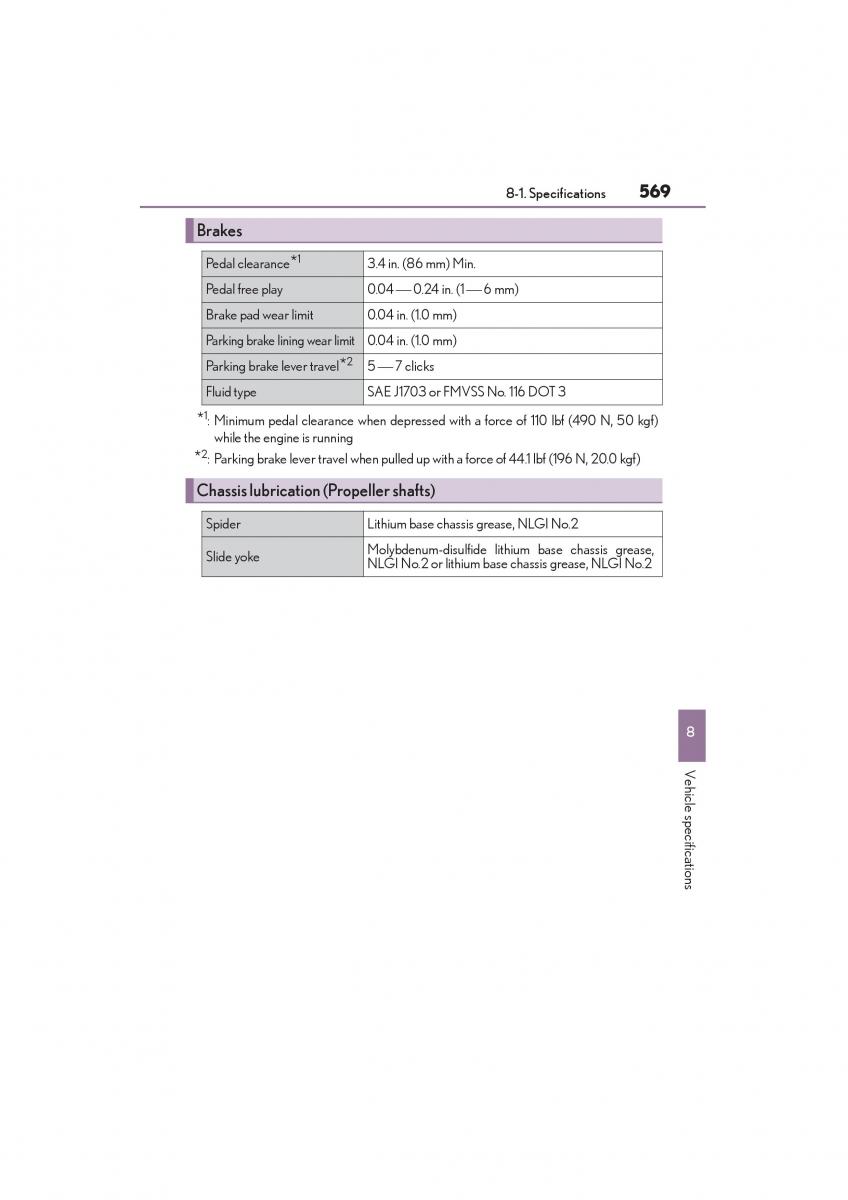

GX460_OM_OM60L72U_(U).book Page 569 Friday, May 16, 2014 3:03 PM 8-1. Specifications569 Brakes 1 Pedal clearance* 3.4 in. (86 mm) Min. Pedal free play 0.04  0.24 in. (1  6 mm) Brake pad wear limit 0.04 in. (1.0 mm) Parking brake lining wear limit0.04 in. (1.0 mm) 2 Parking brake lever travel*5  7 clicks Fluid type SAE J1703 or FMVSS No. 116 DOT 3 1 *: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running 2 * : Parking brake lever travel when pulled up with a force of 44.1 lbf (196 N, 20.0 kgf) Chassis lubrication (Propeller shafts) Spider Lithium base chassis grease, NLGI No.2 Slide yoke Molybdenum-disulfide lithium base chassis grease, NLGI No.2 or lithium base chassis grease, NLGI No.2 8 V e h i cle spe c if ic at ion s GX460_OM_OM60L72U_(U)
