owners manual Toyota Avensis

owners manual Toyota Avensis - year of production: 2015 - Toyota Avensis IV 4 owners manual EN

Document: pdf (41.57 MB) 648 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2015:

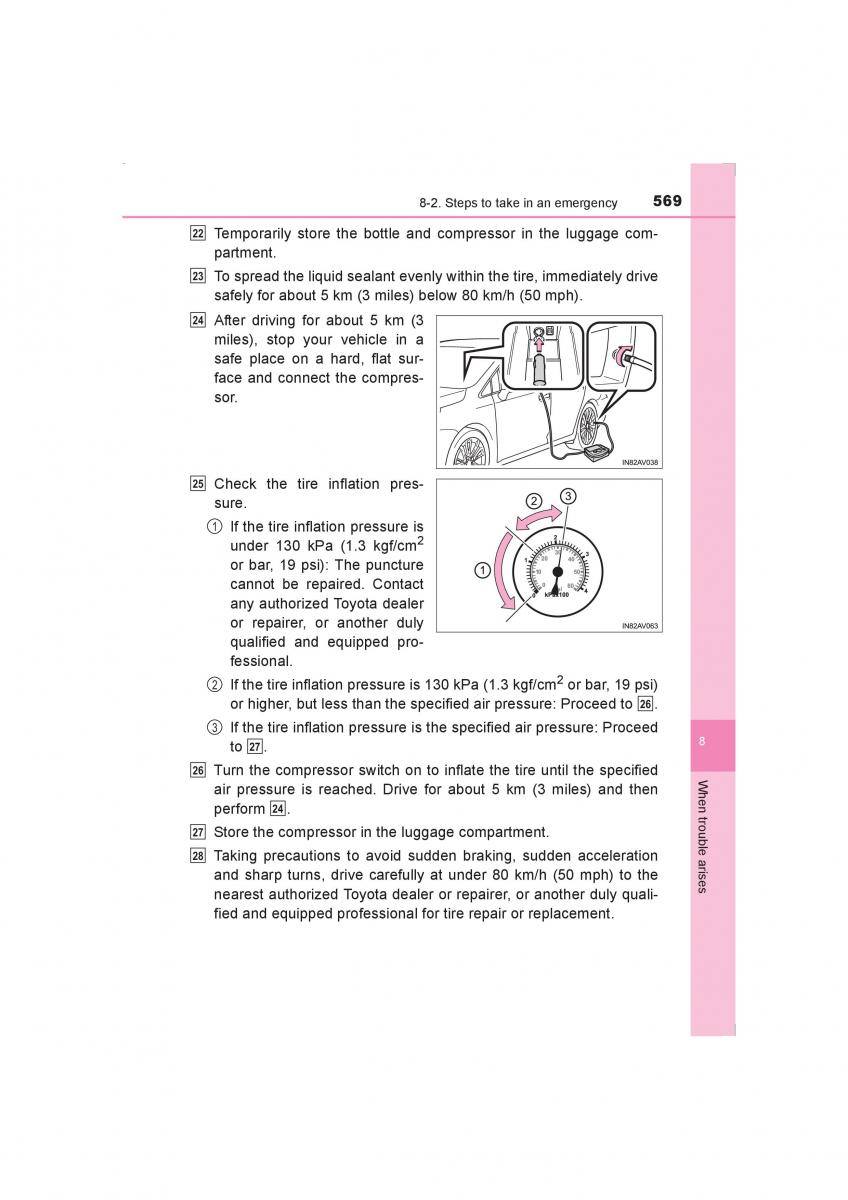

AVENSIS_OM_OM20C20E_(EE).book Page 569 Thursday, January 29, 2015 1:47 PM 8-2. Steps to take in an emergency569 22 Temporarily store the bottle and compressor in the luggage com- partment. 23 To spread the liquid sealant evenly within the tire, immediately drive safely for about 5 km (3 miles) below 80 km/h (50 mph). 24 After driving for about 5 km (3 miles), stop your vehicle in a safe place on a hard, flat sur- face and connect the compres- sor. 25 Check the tire inflation pres- sure. 1 If the tire inflation pressure is 2 under 130 kPa (1.3 kgf/cm or bar, 19 psi): The puncture cannot be repaired. Contact any authorized Toyota dealer or repairer, or another duly qualified and equipped pro- fessional. 2 If the tire inflation pressure is 130 kPa (1.3 kgf/cm2 or bar, 19 psi) 26 or higher, but less than the specified air pressure: Proceed to . 3 If the tire inflation pressure is the specified air pressure: Proceed 27 8 to . 26 Turn the compressor switch on to inflate the tire until the specifiedW air pressure is reached. Drive for about 5 km (3 miles) and then hen 24 trou perform . 27 Store the compressor in the luggage compartment. bl 28 Taking precautions to avoid sudden braking, sudden acceleration e ari s and sharp turns, drive carefully at under 80 km/h (50 mph) to the e nearest authorized Toyota dealer or repairer, or another duly quali-s fied and equipped professional for tire repair or replacement. AVENSIS_OM_OM20C20E_(EE)

Download PDF

Click here to download a pdf file with an instruction manual for Toyota Avensis
year of production from: 2015

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Toyota Avensis IV 4 owners manual
pages 566 - 572

Toyota Avensis IV 4 owners manual
page 569 / 648
