Wartung

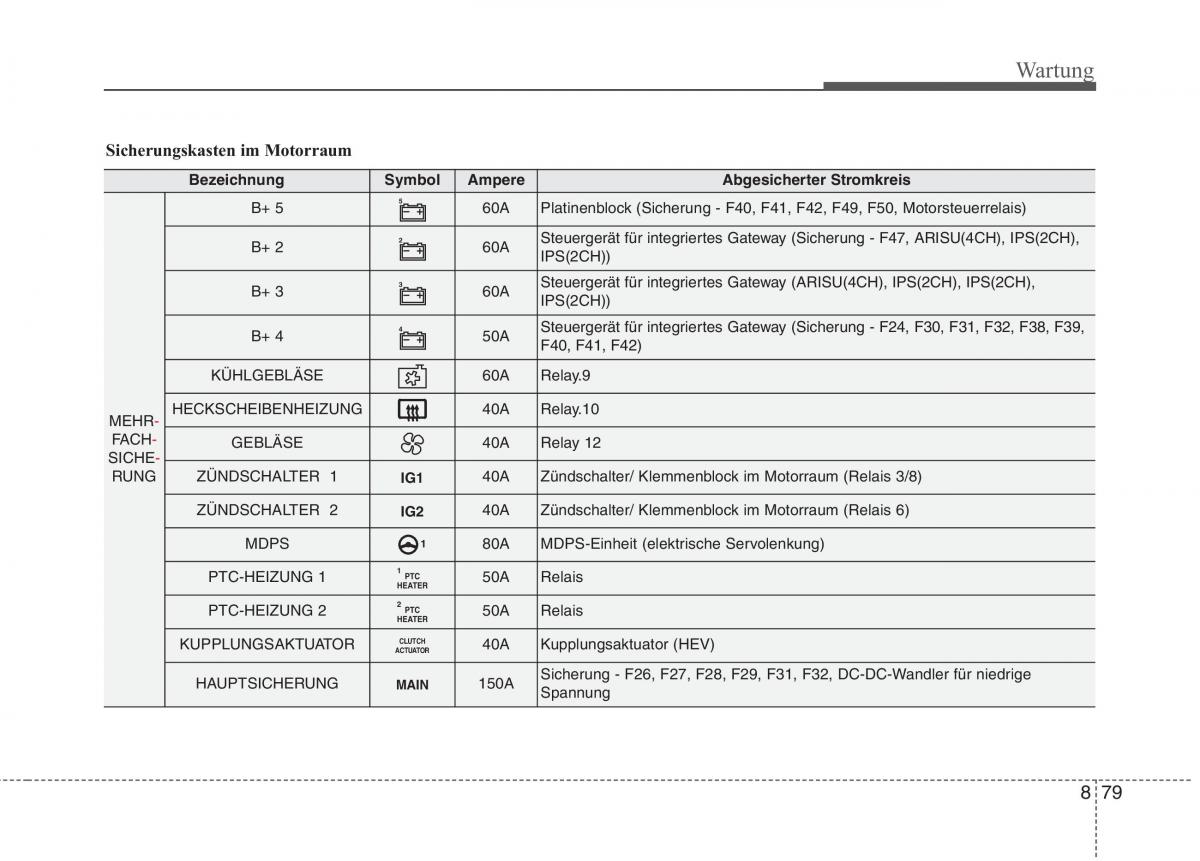

Sicherungskasten im Motorraum
Bezeichnung Symbol Ampere Abgesicherter Stromkreis
B+ 5 5 60A Platinenblock (Sicherung - F40, F41, F42, F49, F50, Motorsteuerrelais)
B+ 2 2 60A Steuergerät für integriertes Gateway (Sicherung - F47, ARISU(4CH), IPS(2CH),
IPS(2CH))
B+ 3 3 60A Steuergerät für integriertes Gateway (ARISU(4CH), IPS(2CH), IPS(2CH),
IPS(2CH))
B+ 4 4 50A Steuergerät für integriertes Gateway (Sicherung - F24, F30, F31, F32, F38, F39,
F40, F41, F42)
KÜHLGEBLÄSE 60A Relay.9
MEHR- HECKSCHEIBENHEIZUNG 40A Relay.10
FACH- GEBLÄSE 40A Relay 12
SICHE-
RUNG ZÜNDSCHALTER 1 IG1 40A Zündschalter/ Klemmenblock im Motorraum (Relais 3/8)
ZÜNDSCHALTER 2 IG2 40A Zündschalter/ Klemmenblock im Motorraum (Relais 6)
MDPS 1 80A MDPS-Einheit (elektrische Servolenkung)
PTC-HEIZUNG 1 1 PTC 50A Relais
HEATER
PTC-HEIZUNG 2 2 PTC 50A Relais
HEATER
KUPPLUNGSAKTUATOR CLUTCH 40A Kupplungsaktuator (HEV)
ACTUATOR
HAUPTSICHERUNG MAIN 150A Sicherung - F26, F27, F28, F29, F31, F32, DC-DC-Wandler für niedrige
Spannung
879
