text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

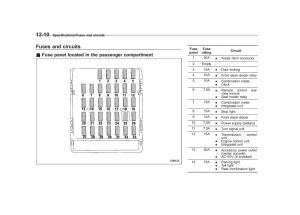

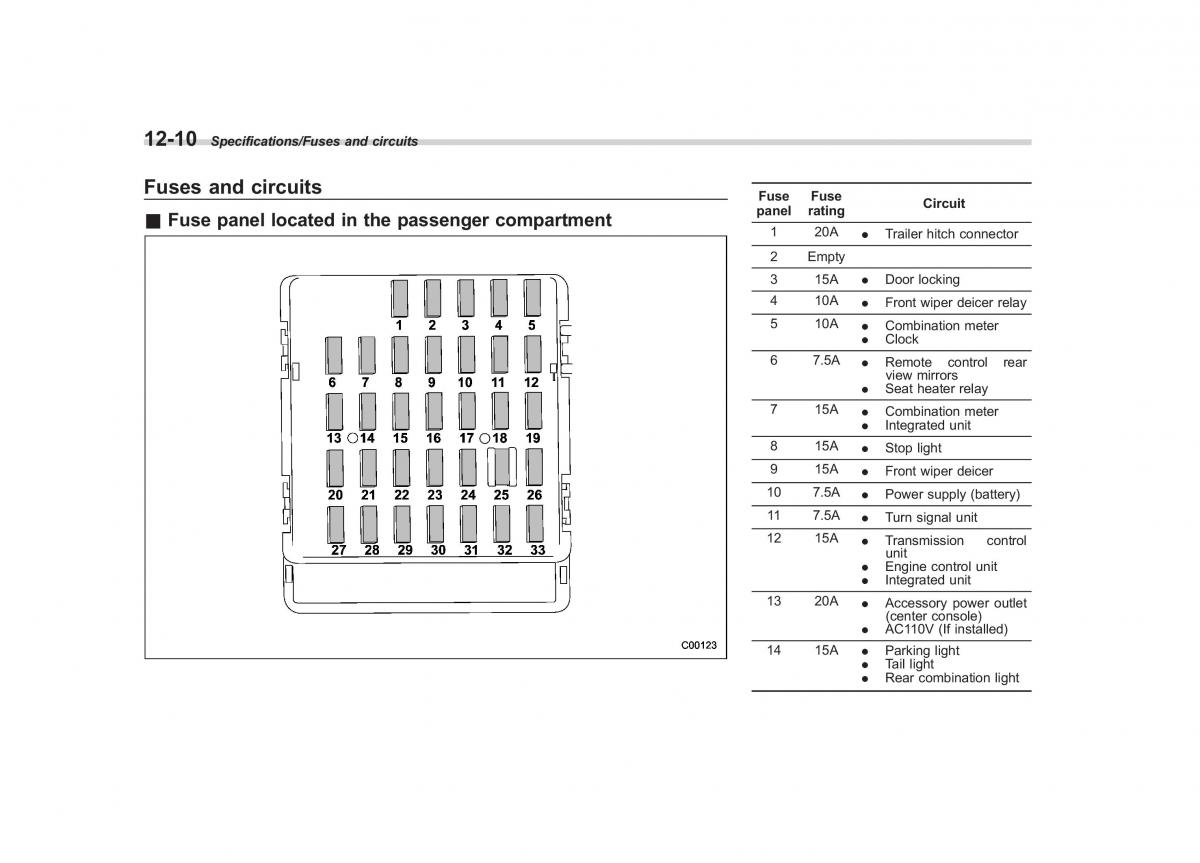

12-10 Specifications/Fuses and circuits Fuses and circuits FuseFuse panelrating Circuit &Fusepanel located in the passenger compartment 1 20A. Trailer hitch connector 2 Empty 3 15A. Door locking 4 10A. Front wiper deicer relay 5 10A. Combination meter . Clock 6 7.5A.Remotecontrolrear view mirrors . Seat heater relay 7 15A. Combination meter . Integrated unit 8 15A. Stop light 9 15A. Front wiper deicer 10 7.5A.Power supply (battery) 11 7.5A.Turn signal unit 12 15A. Transmissioncontrol unit . Engine control unit . Integrated unit 13 20A. Accessory power outlet (center console) . AC110V (If installed) 14 15A. Parking light . Tail light . Rear combination light
