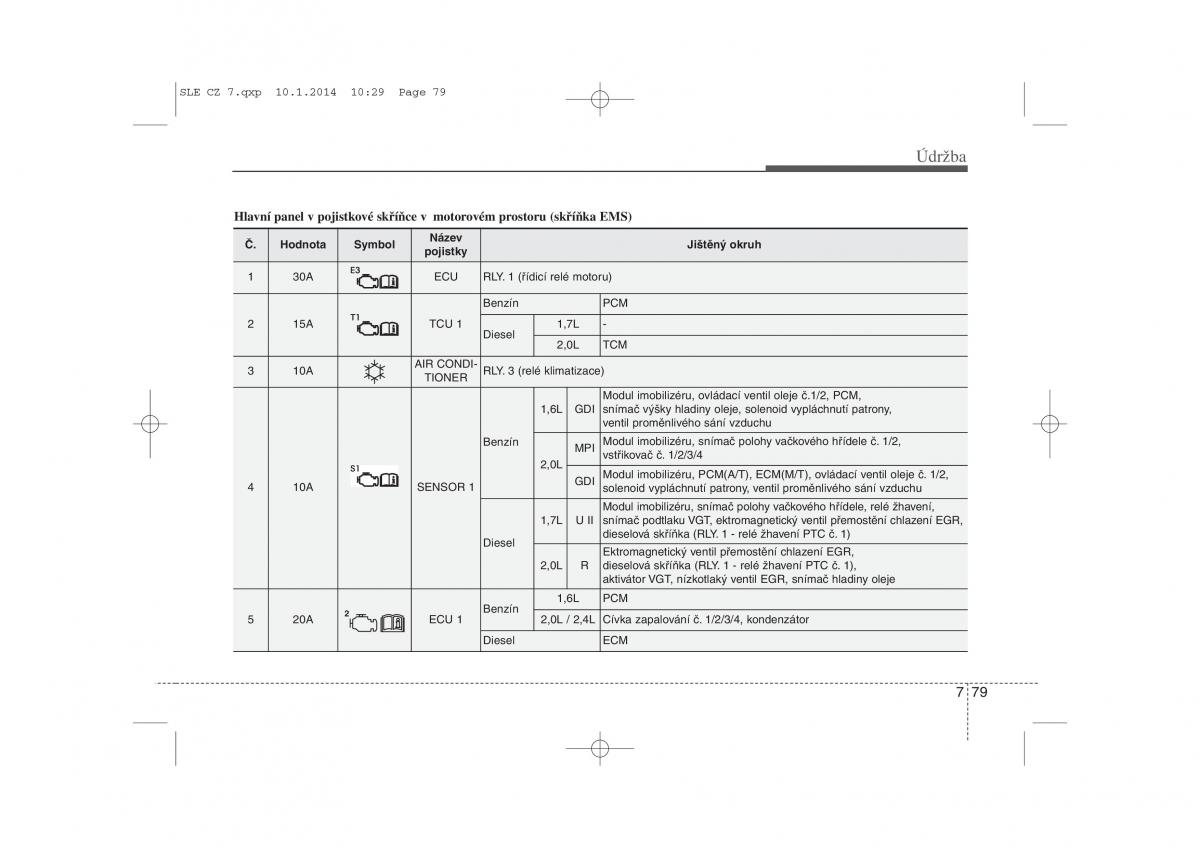

SLE CZ 7.qxp 10.1.2014 10:29 Page 79
Údržba
Hlavní panel v pojistkové skříňce v motorovém prostoru (skříňka EMS)
Č. Hodnota Symbol Název Jitěný okruh
pojistky
1 30A ECU RLY. 1 (řídicí relé motoru)
Benzín PCM
2 15A TCU 1 1,7L -
Diesel
2,0L TCM
3 10A AIR CONDI- RLY.3 (relé klimatizace)
TIONER
Modul imobilizéru, ovládací ventil oleje č.1/2, PCM,
1,6L GDI snímač výky hladiny oleje, solenoid vypláchnutí patrony,
ventil proměnlivého sání vzduchu
Benzín MPI Modul imobilizéru, snímač polohy vačkového hřídele č. 1/2,
vstřikovač č. 1/2/3/4
2,0L
GDI Modul imobilizéru, PCM(A/T), ECM(M/T), ovládací ventil oleje č. 1/2,
4 10A SENSOR 1 solenoid vypláchnutí patrony, ventil proměnlivého sání vzduchu
Modul imobilizéru, snímač polohy vačkového hřídele, relé žhavení,
1,7L U II snímač podtlaku VGT, ektromagnetický ventil přemostění chlazení EGR,
Diesel dieselová skříňka (RLY. 1 - relé žhavení PTC č. 1)
Ektromagnetický ventil přemostění chlazení EGR,
2,0L R dieselová skříňka (RLY.1 - relé žhavení PTC č.1),
aktivátor VGT, nízkotlaký ventil EGR, snímač hladiny oleje
1,6L PCM
2 Benzín
5 20A ECU 1 2,0L / 2,4L Cívka zapalování č. 1/2/3/4, kondenzátor
Diesel ECM
779
