text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 2012:

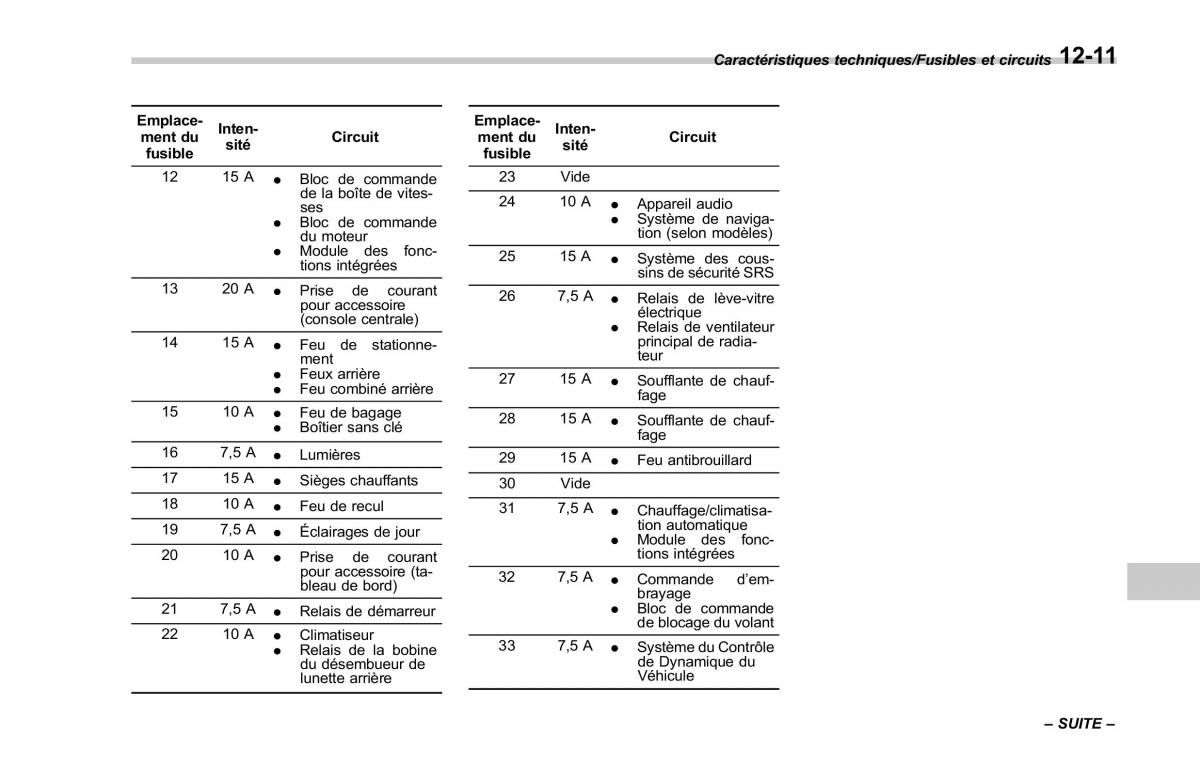

Caractéristiques techniques/Fusibles et circuits 12-11
Emplace- Inten- Emplace- Inten-
ment dusité Circuit ment dusité Circuit
fusible fusible
12 15 A.Bloc de commande23Vide
de la boîte de vites-2410 A.Appareil audio
ses .Système de naviga-
. Bloc de commande tion (selon modèles)
du moteur
. Module des fonc-2515 A.Système des cous-
tions intégrées sins de sécurité SRS
13 20 A.Prisedecourant26 7,5 A.Relais de lève-vitre
pour accessoire électrique
(console centrale) .Relais de ventilateur
14 15 A.Feu de stationne- principal de radia-
ment teur
. Feux arrière 27 15 A. Soufflante de chauf-
. Feu combiné arrière fage
15 10 A.Feu de bagage28 15 A. Soufflante de chauf-
. Boîtier sans clé fage
16 7,5 A.Lumières 29 15 A. Feu antibrouillard
17 15 A.Sièges chauffants30Vide
18 10 A.Feu de recul 31 7,5 A.Chauffage/climatisa-
19 7,5 A.Éclairages de jour tion automatique
.Module des fonc-
20 10 A.Prisedecourant tions intégrées
pour accessoire (ta-327,5 A.Commanded’em-
bleau de bord) brayage
21 7,5 A.Relais de démarreur .Bloc de commande
22 10 A deblocageduvolant
. Climatiseur 33 7,5 A.SystèmeduContrôle
. Relais de la bobine de Dynamique du
du désembueur de Véhicule
lunette arrière
– SUITE –
