text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

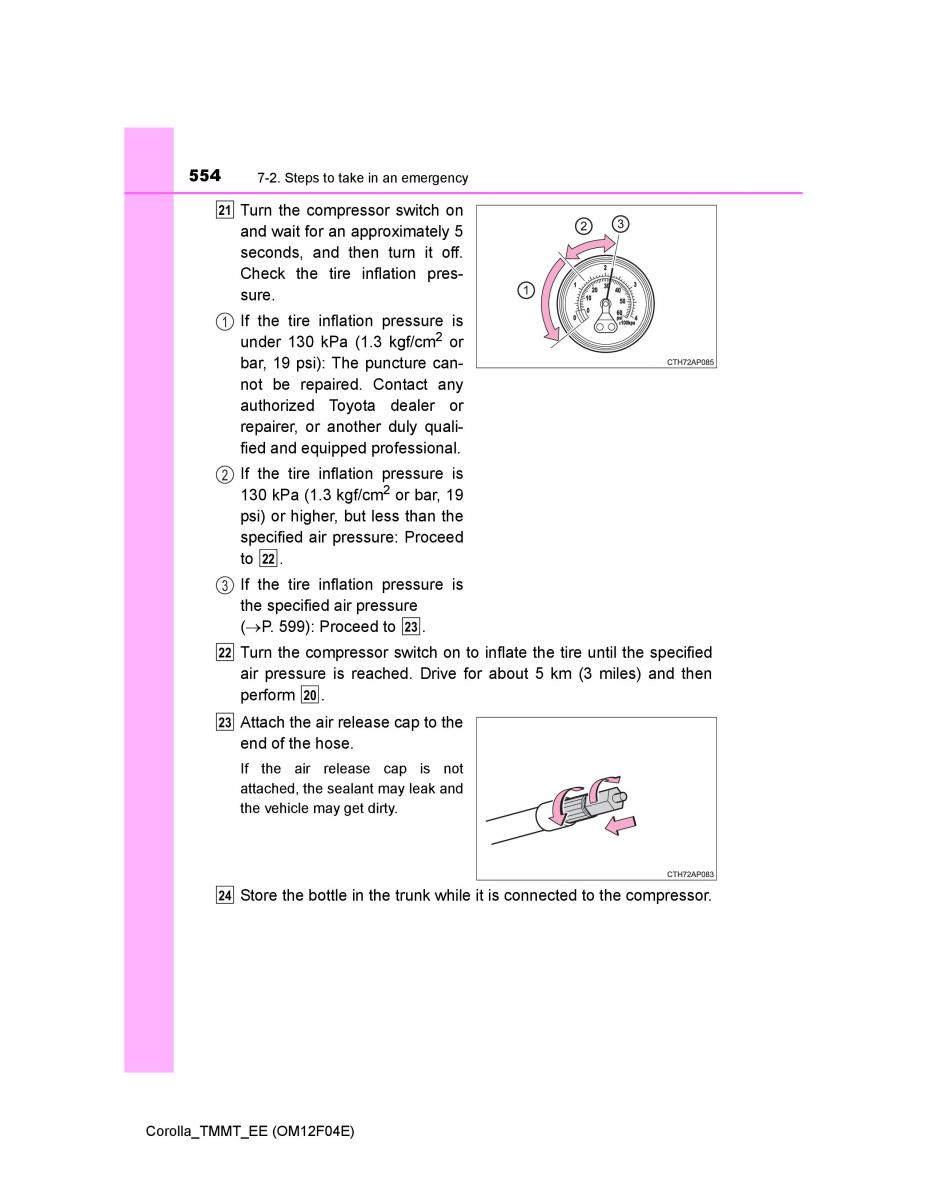

554 7-2. Steps to take in an emergency 21 Turn the compressor switch on and wait for an approximately 5 seconds, and then turn it off. Check the tire inflation pres- sure. 1 If the tire inflation pressure is 2 under 130 kPa (1.3 kgf/cm or bar, 19 psi): The puncture can- not be repaired. Contact any authorized Toyota dealer or repairer, or another duly quali- fied and equipped professional. 2 If the tire inflation pressure is 2 130 kPa (1.3 kgf/cm or bar, 19 psi) or higher, but less than the specified air pressure: Proceed 22 to . 3 If the tire inflation pressure is the specified air pressure (P. 599): Proceed to 23 . 22 Turn the compressor switch on to inflate the tire until the specified air pressure is reached. Drive for about 5 km (3 miles) and then 20 perform . 23 Attach the air release cap to the end of the hose. If the air release cap is not attached, the sealant may leak and the vehicle may get dirty. 24 Store the bottle in the trunk while it is connected to the compressor. Corolla_TMMT_EE (OM12F04E)
