AVENSIS_OM_OM20C20E_(EE).book Page 554 Thursday, January 29, 2015 1:47 PM

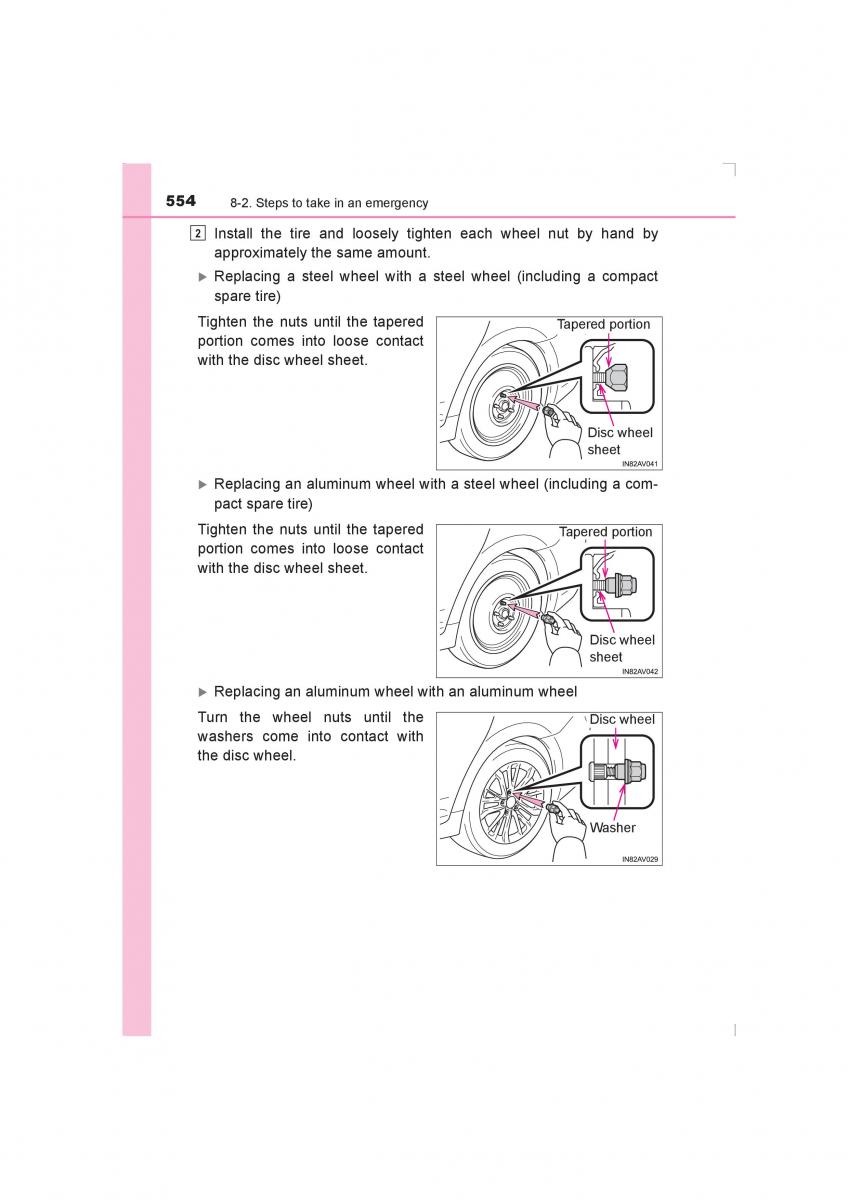

554 8-2. Steps to take in an emergency
2 Install the tire and loosely tighten each wheel nut by hand by
approximately the same amount.
X Replacing a steel wheel with a steel wheel (including a compact
spare tire)
Tighten the nuts until the tapered Tapered portion
portion comes into loose contact
with the disc wheel sheet.
Disc wheel
sheet
X Replacing an aluminum wheel with a steel wheel (including a com-
pact spare tire)
Tighten the nuts until the tapered Tapered portion
portion comes into loose contact
with the disc wheel sheet.
Disc wheel
sheet
X Replacing an aluminum wheel with an aluminum wheel
Turn the wheel nuts until the Disc wheel
washers come into contact with
the disc wheel.
Washer
AVENSIS_OM_OM20C20E_(EE)
