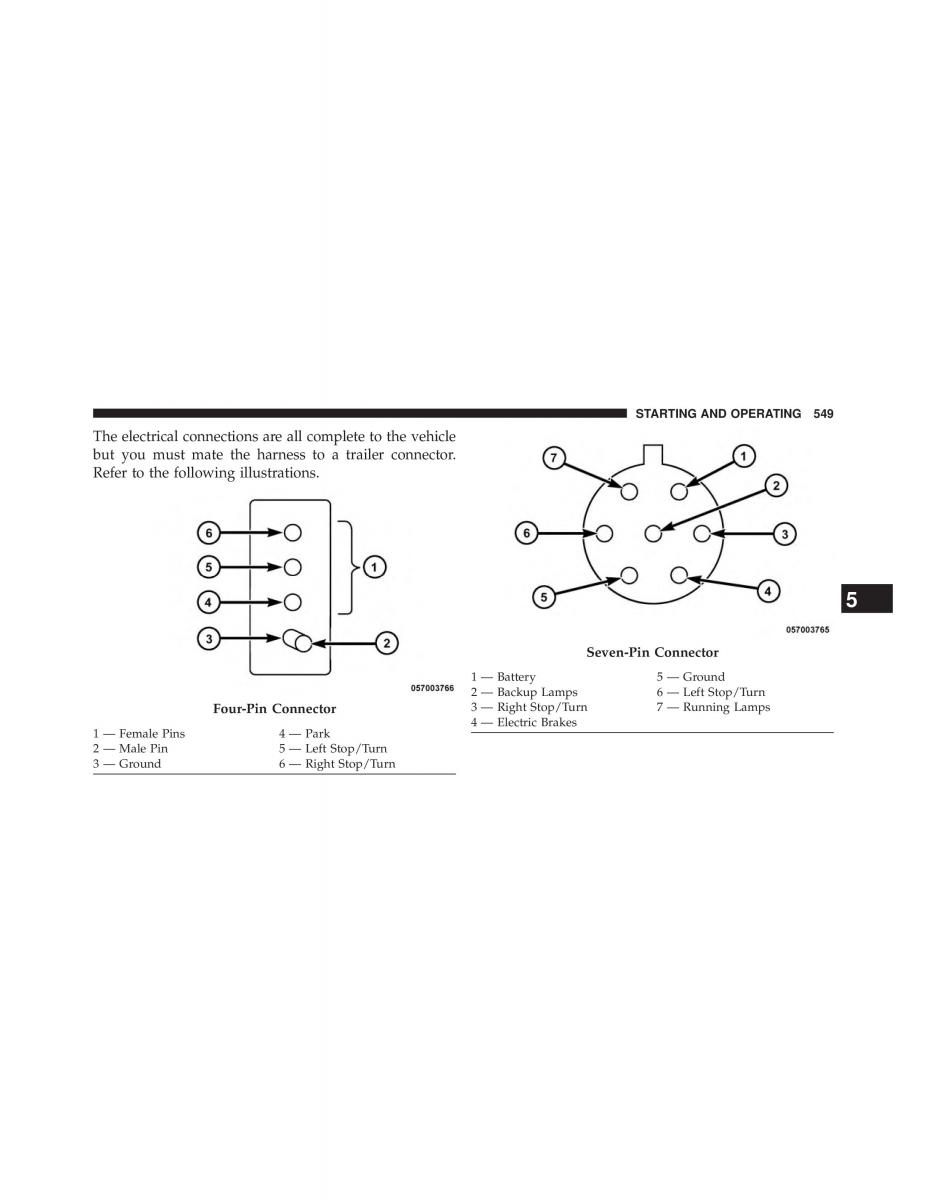

STARTINGANDOPERATING 549
The electrical connections are all complete to the vehicle
but you must mate the harness to a trailer connector.
Refer to the following illustrations.
5
Seven-Pin Connector
1 — Battery 5 — Ground
2 — Backup Lamps6 — Left Stop/Turn
Four-Pin Connector 3 — Right Stop/Turn7 — Running Lamps
4 — Electric Brakes
1 — Female Pins 4 — Park
2 — Male Pin 5 — Left Stop/Turn
3 — Ground 6 — Right Stop/Turn
