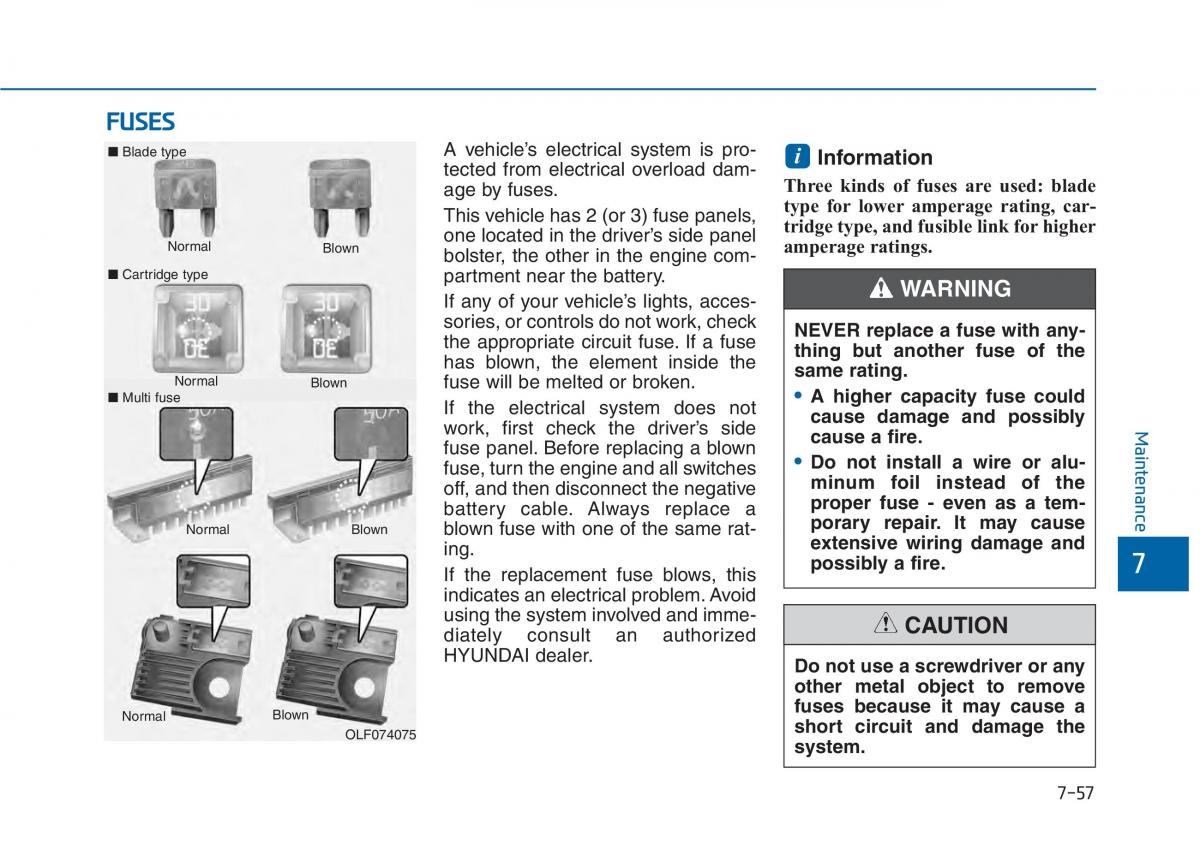

FFUUSSEESS
■Blade type A vehicle’s electrical system is pro-
i Information
tected from electrical overload dam-
age by fuses. Three kinds of fuses are used: blade
This vehicle has 2 (or 3) fuse panels,type for lower amperage rating, car-
one located in the driver’s side panel tridge type, and fusible link for higher
Normal Blown amperage ratings.
bolster, the other in the engine com-
■Cartridge type partment near the battery. WARNING
If any of your vehicle’s lights, acces-
sories, or controls do not work, checkNEVER replace a fuse with any-
the appropriate circuit fuse. If a fuse
thing but another fuse of the
has blown, the element inside the
Normal Blown fuse will be melted or broken. same rating.
■Multi fuse • A higher capacity fuse could
If the electrical system does not
cause damage and possibly
work, first check the driver’s side Maintenance
fuse panel. Before replacing a blowncause a fire.
fuse, turn the engine and all switches• Do not install a wire or alu-
off, and then disconnect the negativeminum foil instead of the
proper fuse - even as a tem-
battery cable. Always replace a
Normal Blown porary repair. It may cause
blown fuse with one of the same rat-
ing. extensive wiring damage and
possibly a fire. 7
If the replacement fuse blows, this
indicates an electrical problem.Avoid
using the system involved and imme- CAUTION
diately consult an authorized
HYUNDAI dealer. Do not use a screwdriver or any
other metal object to remove
Normal Blown fuses because it may cause a
OLF074075 short circuit and damage the
system.
7-57
