text version of content this owner's manual page from owners manual to the vehicle Subaru XV, year of production 2011:

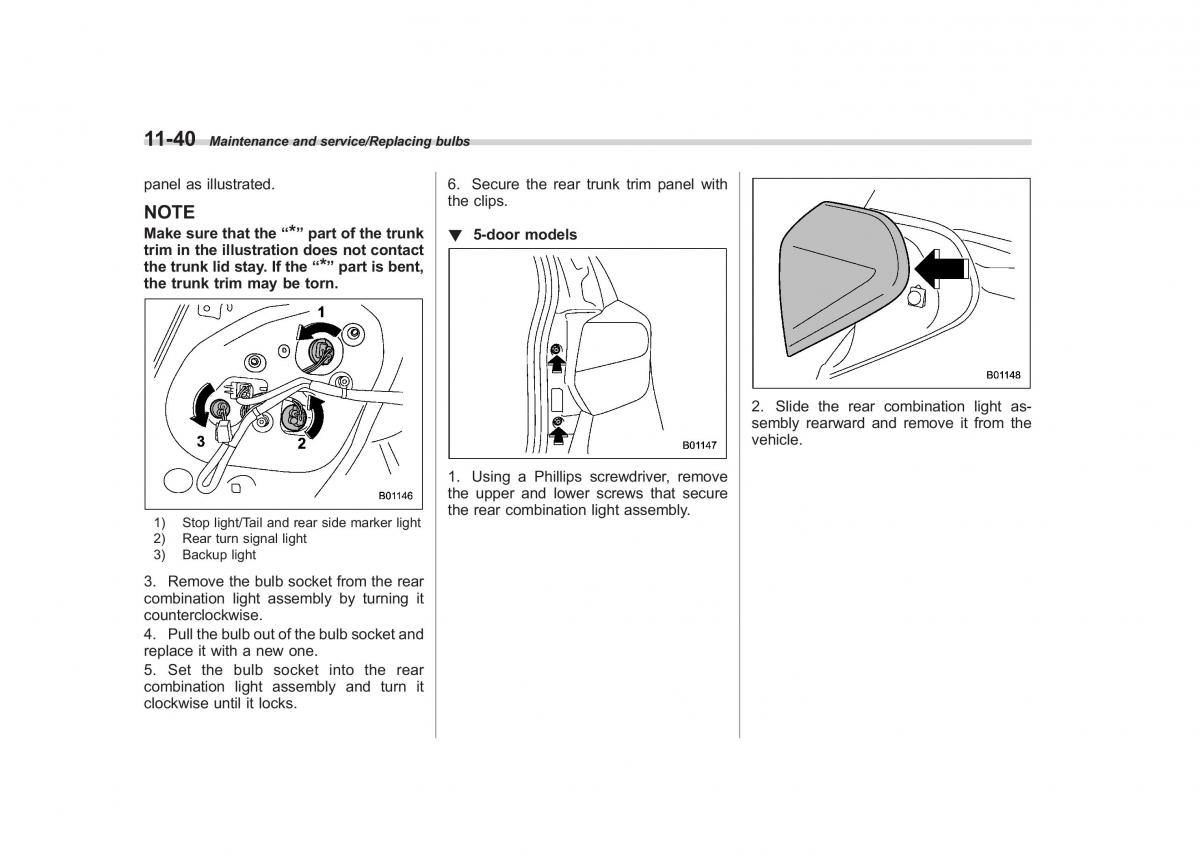

11-40 Maintenance and service/Replacing bulbs panel as illustrated. 6. Secure the rear trunk trim panel with NOTE the clips. Makesurethat the “*” part of the trunk! 5-door models trim in the illustration does not contact the trunk lid stay. If the “*” part is bent, the trunk trim may be torn. 2. Slide the rear combination light as- sembly rearward and remove it from the vehicle. 1. Using a Phillips screwdriver, remove the upper and lower screws that secure the rear combination light assembly. 1)Stop light/Tail and rear side marker light 2)Rear turn signal light 3)Backup light 3. Remove the bulb socket from the rear combination light assembly by turning it counterclockwise. 4. Pull the bulb out of the bulb socket and replace it with a new one. 5. Set the bulb socket into the rear combination light assembly and turn it clockwise until it locks.
