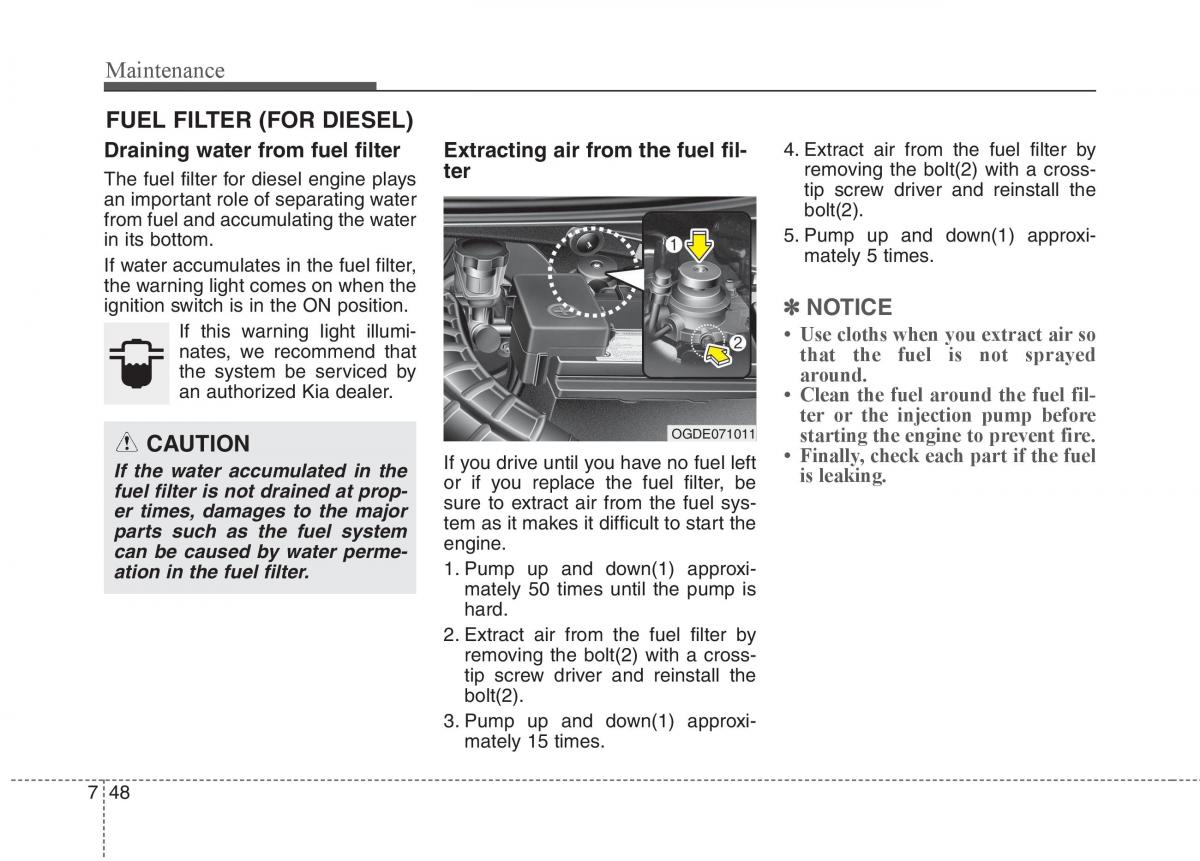

Maintenance
FUEL FILTER (FOR DIESEL)
Draining water from fuel filter Extracting air from the fuel fil- 4.Extract air from the fuel filter by
ter removing the bolt(2) with a cross-
The fuel filter for diesel engine plays tip screw driver and reinstall the
an important role of separating water bolt(2).
from fuel and accumulating the water
in its bottom. 5. Pump up and down(1) approxi-
If water accumulates in the fuel filter, mately 5 times.
the warning light comes on when the
ignition switch is in the ON position. ✽✽ NOTICE
If this warning light illumi- Use cloths when you extract air so
nates, we recommend that that the fuel is not sprayed
the system be serviced by around.
an authorized Kia dealer. Clean the fuel around the fuel fil-
ter or the injection pump before
CAUTION OGDE071011 starting the engine to prevent fire.
If you drive until you have no fuel left Finally, check each part if the fuel
If the water accumulated in the is leaking.
or if you replace the fuel filter, be
fuel filter is not drained at prop-
sure to extract air from the fuel sys-
er times, damages to the major
tem as it makes it difficult to start the
parts such as the fuel system
engine.
can be caused by water perme-
ation in the fuel filter. 1. Pump up and down(1) approxi-
mately 50 times until the pump is
hard.
2. Extract air from the fuel filter by
removing the bolt(2) with a cross-
tip screw driver and reinstall the
bolt(2).
3. Pump up and down(1) approxi-
mately 15 times.
7 48
