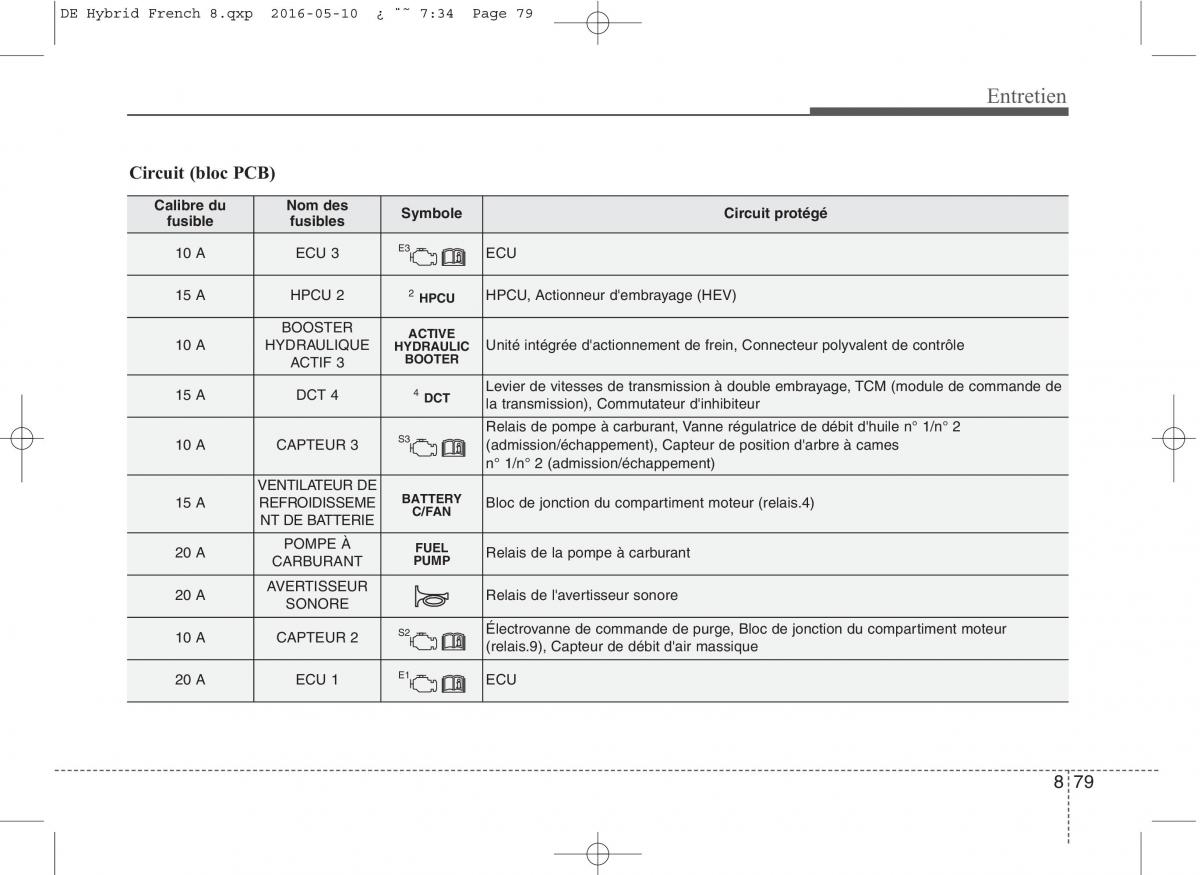

DE Hybrid French 8.qxp 2016-05-10 ¿ ¨˜ 7:34 Page 79
Entretien
Circuit (bloc PCB)
Calibre du Nom des Symbole Circuit protégé
fusible fusibles
10 A ECU 3 E3 ECU
15 A HPCU 2 2 HPCU HPCU, Actionneur d'embrayage (HEV)
BOOSTER ACTIVE
10 A HYDRAULIQUE HYDRAULIC Unité intégrée d'actionnement de frein, Connecteur polyvalent de contrôle
ACTIF 3 BOOTER
15 A DCT 4 4 Levier de vitesses de transmission à double embrayage, TCM (module de commande de
DCT la transmission), Commutateur d'inhibiteur
Relais de pompe à carburant, Vanne régulatrice de débit d'huile n° 1/n° 2
10 A CAPTEUR 3 S3 (admission/échappement), Capteur de position d'arbre à cames
n° 1/n° 2 (admission/échappement)
VENTILATEUR DE
15 A REFROIDISSEME BATTERY Bloc de jonction du compartiment moteur (relais.4)
NT DE BATTERIE C/FAN
20 A POMPE À FUEL Relais de la pompe à carburant
CARBURANT PUMP
20 A AVERTISSEUR Relais de l'avertisseur sonore
SONORE
10 A CAPTEUR 2 S2 Électrovanne de commande de purge, Bloc de jonction du compartiment moteur
(relais.9), Capteur de débit d'air massique
20 A ECU 1 E1 ECU
879
