text version of content this owner's manual page from owners manual to the vehicle Hyundai i30N, year of production 2017:

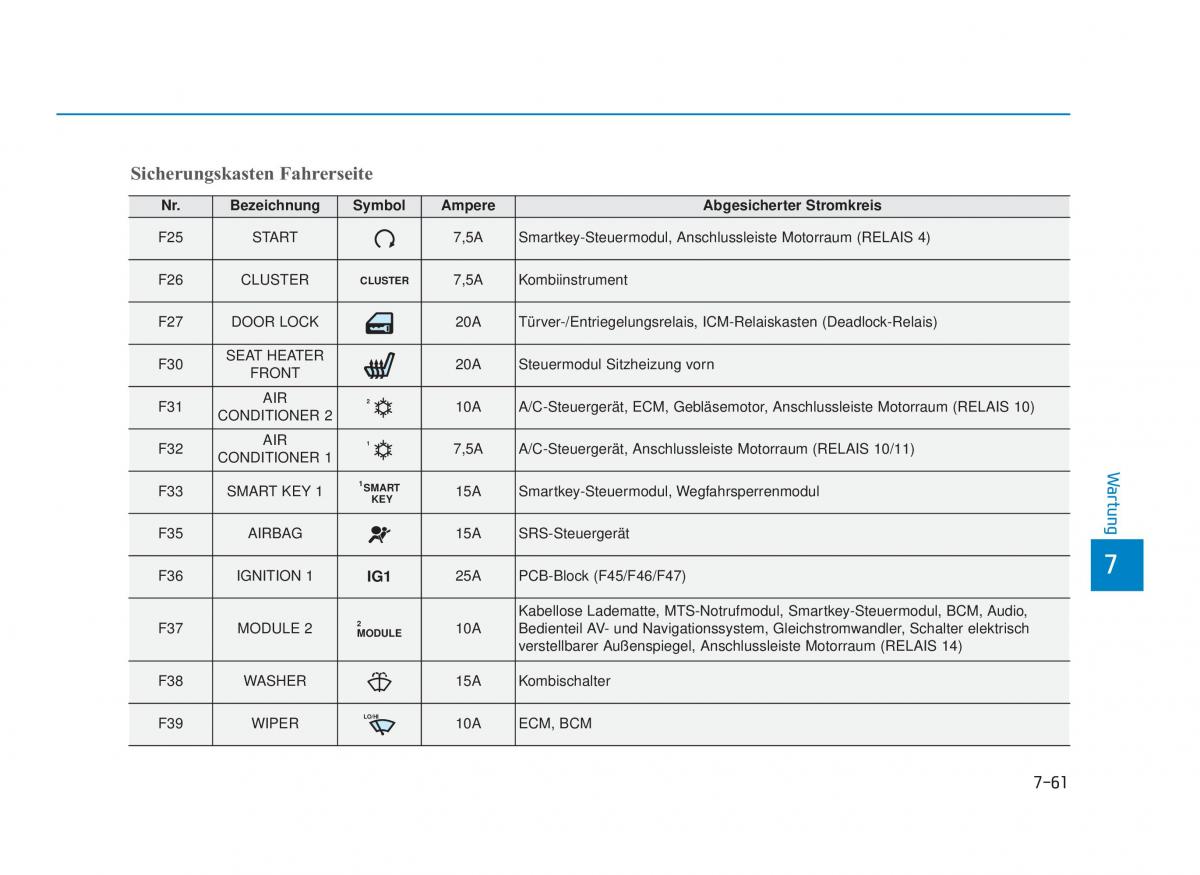

PDeN GER 7.qxp 16.08.2017 13:45 Page 61 Sicherungskasten Fahrerseite Nr. Bezeichnung Symbol Ampere Abgesicherter Stromkreis F25 START 7,5A Smartkey-Steuermodul, Anschlussleiste Motorraum (RELAIS 4) F26 CLUSTER CLUSTER 7,5A Kombiinstrument F27 DOOR LOCK 20A Türver-/Entriegelungsrelais, ICM-Relaiskasten (Deadlock-Relais) F30 SEAT HEATER 20A Steuermodul Sitzheizung vorn FRONT F31 AIR 2 10A A/C-Steuergerät, ECM, Gebläsemotor, Anschlussleiste Motorraum (RELAIS 10) CONDITIONER 2 F32 AIR 1 7,5A A/C-Steuergerät, Anschlussleiste Motorraum (RELAIS 10/11) CONDITIONER 1 W F33 SMART KEY 1 1SMART 15A Smartkey-Steuermodul, Wegfahrsperrenmodul artung KEY F35 AIRBAG 15A SRS-Steuergerät F36 IGNITION 1 IG1 25A PCB-Block (F45/F46/F47) 7 Kabellose Ladematte, MTS-Notrufmodul, Smartkey-Steuermodul, BCM, Audio, F37 MODULE 2 2 10A Bedienteil AV- und Navigationssystem, Gleichstromwandler, Schalter elektrisch MODULE verstellbarer Außenspiegel, Anschlussleiste Motorraum (RELAIS 14) F38 WASHER 15A Kombischalter F39 WIPER LO/HI 10A ECM, BCM 7-61
