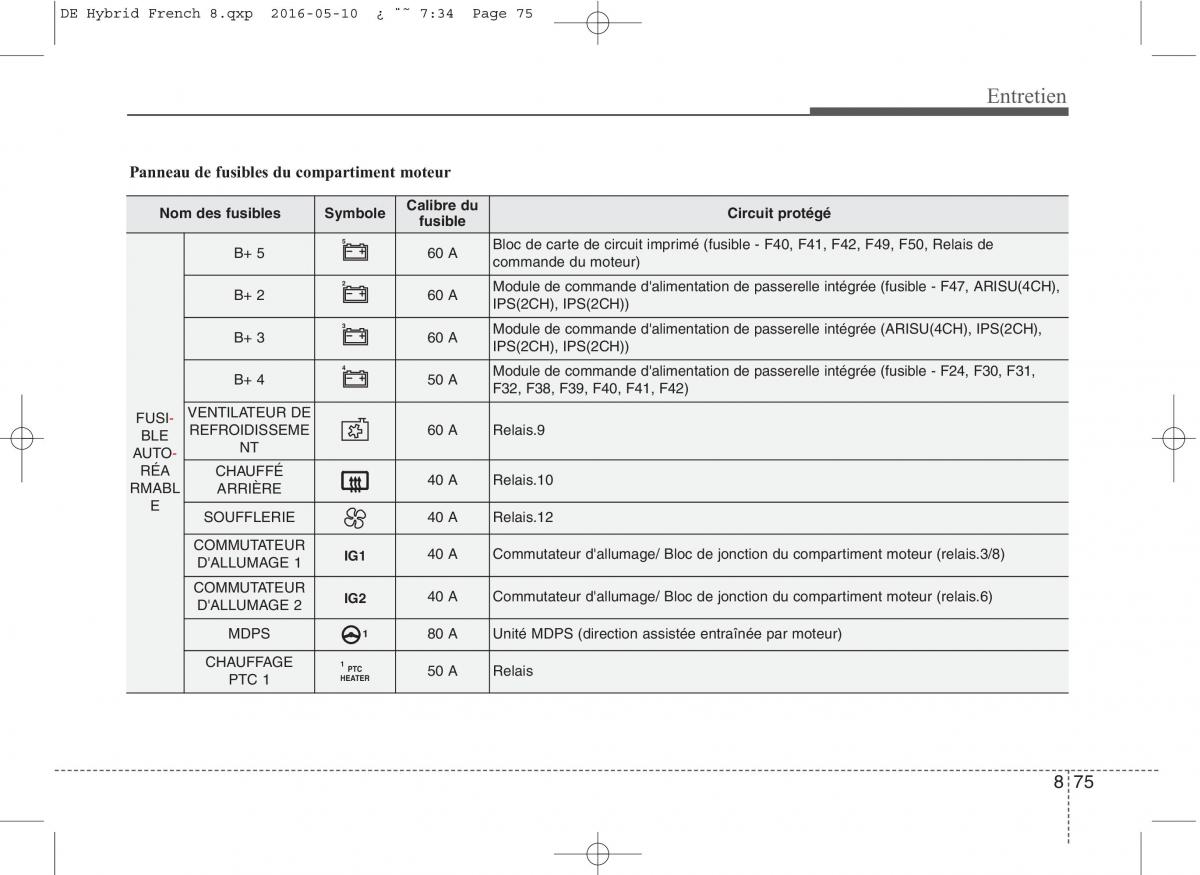

DE Hybrid French 8.qxp 2016-05-10 ¿ ¨˜ 7:34 Page 75
Entretien
Panneau de fusibles du compartiment moteur
Nom des fusibles Symbole Calibre du Circuit protégé
fusible
5 Bloc de carte de circuit imprimé (fusible - F40, F41, F42, F49, F50, Relais de
B+ 5 60 A commande du moteur)
2 Module de commande d'alimentation de passerelle intégrée (fusible - F47, ARISU(4CH),
B+ 2 60 A IPS(2CH), IPS(2CH))
3 Module de commande d'alimentation de passerelle intégrée (ARISU(4CH), IPS(2CH),
B+ 3 60 A IPS(2CH), IPS(2CH))
4 Module de commande d'alimentation de passerelle intégrée (fusible - F24, F30, F31,
B+ 4 50 A F32, F38, F39, F40, F41, F42)
FUSI- VENTILATEUR DE
BLE REFROIDISSEME 60 A Relais.9
AUTO- NT
RÉA CHAUFFÉ 40 A Relais.10
RMABL ARRIÈRE
E SOUFFLERIE 40 A Relais.12
COMMUTATEUR IG1 40 A Commutateur d'allumage/ Bloc de jonction du compartiment moteur (relais.3/8)
D'ALLUMAGE 1
COMMUTATEUR IG2 40 A Commutateur d'allumage/ Bloc de jonction du compartiment moteur (relais.6)
D'ALLUMAGE 2
MDPS 1 80 A Unité MDPS (direction assistée entraînée par moteur)
CHAUFFAGE 1 PTC 50 A Relais
PTC 1 HEATER
875
