Wartung

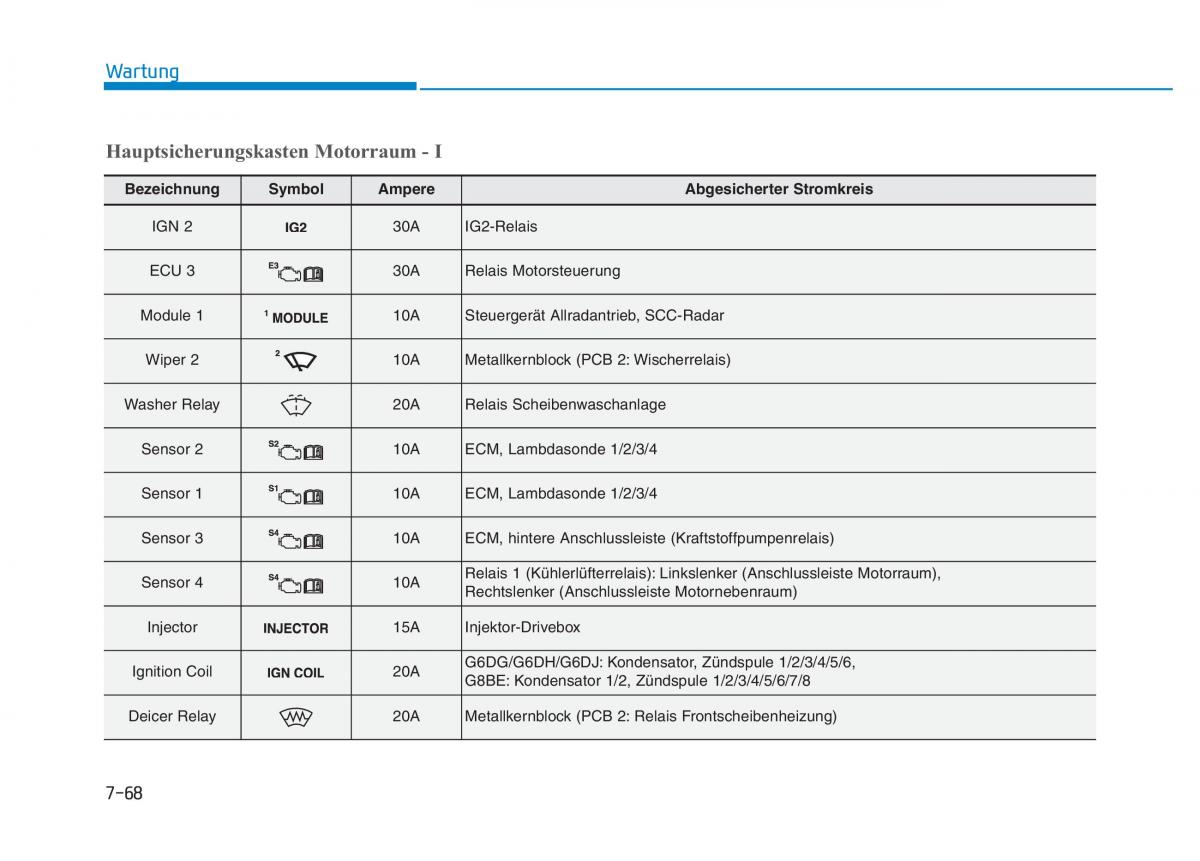

Hauptsicherungskasten Motorraum - I
BezeichnungSymbolAmpere Abgesicherter Stromkreis
IGN 2 30A IG2-Relais
ECU 3 30A Relais Motorsteuerung
Module 1 10A Steuergerät Allradantrieb, SCC-Radar
Wiper 2 10A Metallkernblock (PCB 2:Wischerrelais)
Washer Relay 20A Relais Scheibenwaschanlage
Sensor 2 10A ECM, Lambdasonde 1/2/3/4
Sensor 1 10A ECM, Lambdasonde 1/2/3/4
Sensor 3 10A ECM, hintere Anschlussleiste (Kraftstoffpumpenrelais)
Sensor 4 10A Relais 1 (Kühlerlüfterrelais): Linkslenker (Anschlussleiste Motorraum),
Rechtslenker (Anschlussleiste Motornebenraum)
Injector 15A Injektor-Drivebox
Ignition Coil 20A G6DG/G6DH/G6DJ:Kondensator, Zündspule 1/2/3/4/5/6,
G8BE:Kondensator 1/2, Zündspule 1/2/3/4/5/6/7/8
Deicer Relay 20A Metallkernblock (PCB 2: Relais Frontscheibenheizung)
7-68
