from owners manual to the vehicle Renault Trafic, year of production 2014:

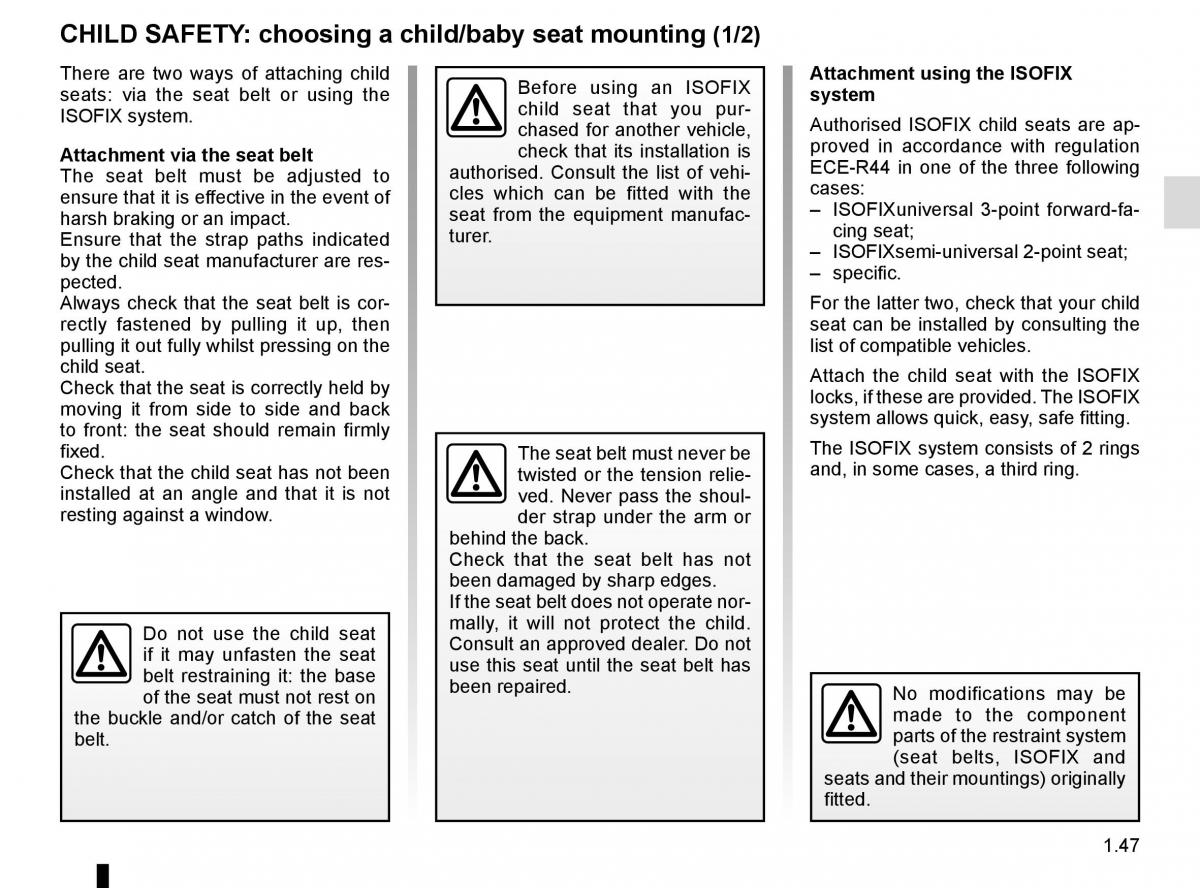

CHILD SAFETY: choosing a child/baby seat mounting (1/2)
There are two ways of attaching child Attachment using the ISOFIX
Before using an ISOFIX
seats: via the seat belt or using thesystem
ISOFIX system. child seat that you pur-
Authorised ISOFIX child seats are ap-
chased for another vehicle,
proved in accordance with regulation
Attachment via the seat belt check that its installation is
ECE-R44 in one of the three following
authorised. Consult the list of vehi-
The seat belt must be adjusted to
cases:
ensure that it is effective in the event of cles which can be fitted with the
– ISOFIXuniversal 3-point forward-fa-
harsh braking or an impact.seat from the equipment manufac-
turer. cing seat;
Ensure that the strap paths indicated – ISOFIXsemi-universal 2-point seat;
by the child seat manufacturer are res- – specific.
pected.
Always check that the seat belt is cor- For the latter two, check that your child
rectly fastened by pulling it up, thenseat can be installed by consulting the
pulling it out fully whilst pressing on the list of compatible vehicles.
child seat. Attach the child seat with the ISOFIX
Check that the seat is correctly held by locks, if these are provided. The ISOFIX
moving it from side to side and back
to front: the seat should remain firmly system allows quick, easy, safe fitting.
fixed. The seat belt must never be The ISOFIX system consists of 2 rings
Check that the child seat has not been and, in some cases, a third ring.
twisted or the tension relie-
installed at an angle and that it is not
resting against a window. ved. Never pass the shoul-
der strap under the arm or
behind the back.
Check that the seat belt has not
been damaged by sharp edges.
If the seat belt does not operate nor-
mally, it will not protect the child.
Do not use the child seat
Consult an approved dealer. Do not
if it may unfasten the seat
use this seat until the seat belt has
belt restraining it: the base
of the seat must not rest on been repaired. No modifications may be
the buckle and/or catch of the seat made to the component
belt. parts of the restraint system
(seat belts, ISOFIX and
seats and their mountings) originally
fitted.
1.47
