text version of content this owner's manual page from owners manual to the vehicle Mercedes SL, year of production 1989 - 2001:

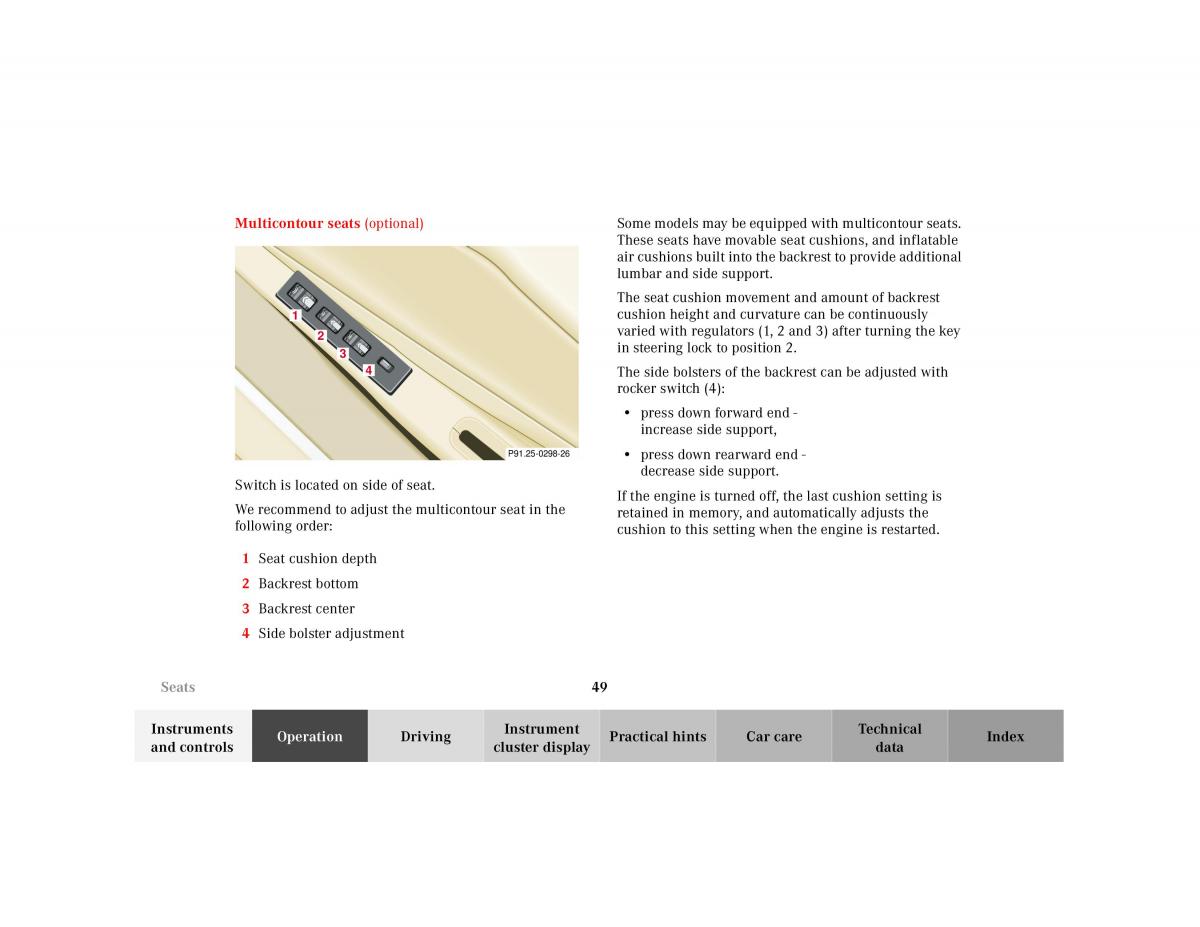

Multicontour seats (optional) Some models may be equipped with multicontour seats. These seats have movable seat cushions, and inflatable air cushions built into the backrest to provide additional lumbar and side support. The seat cushion movement and amount of backrest 1 cushion height and curvature can be continuously 2 varied with regulators (1, 2 and 3) after turning the key 3 in steering lock to position 2. 4 The side bolsters of the backrest can be adjusted with rocker switch (4): • press down forward end - increase side support, P91.25-0298-26 • press down rearward end - decrease side support. Switch is located on side of seat. If the engine is turned off, the last cushion setting is We recommend to adjust the multicontour seat in the retained in memory, and automatically adjusts the following order: cushion to this setting when the engine is restarted. 1 Seat cushion depth 2 Backrest bottom 3 Backrest center 4 Side bolster adjustment Seats 49 Instruments Operation Driving Instrument Practical hints Car care Technical Index and controls cluster display data
