text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2013:
UK AURIS_HV_HB_OM_EE_OM12J68E.book 528 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分

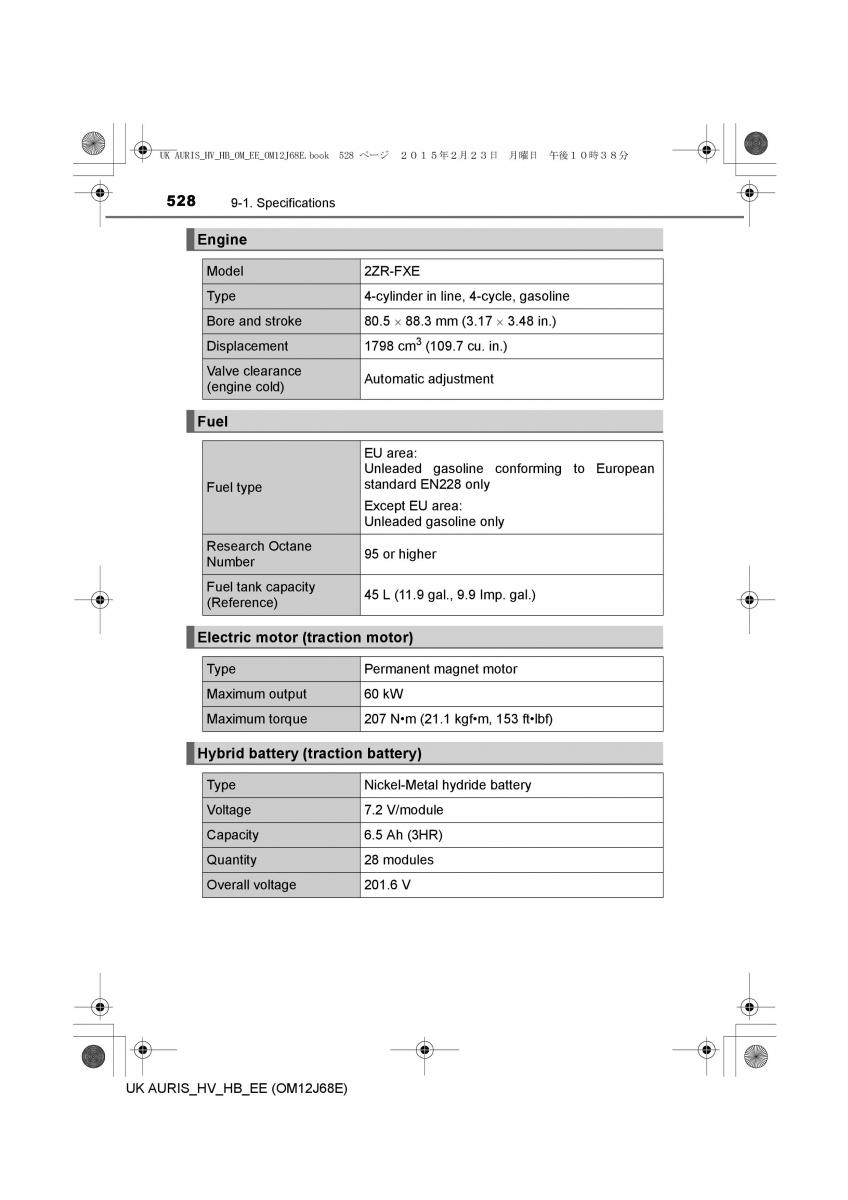

528 9-1. Specifications
Engine
Model 2ZR-FXE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 80.5 × 88.3 mm (3.17 × 3.48 in.)
3
Displacement 1798 cm (109.7 cu. in.)
Valve clearance Automatic adjustment
(engine cold)
Fuel
EU area:
Unleaded gasoline conforming to European
Fuel type standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane 95 or higher
Number
Fuel tank capacity 45 L (11.9 gal., 9.9 Imp. gal.)
(Reference)
Electric motor (traction motor)
Type Permanent magnet motor
Maximum output 60 kW
Maximum torque 207 Nm (21.1 kgfm, 153 ftlbf)
Hybrid battery (traction battery)
Type Nickel-Metal hydride battery
Voltage 7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 28 modules
Overall voltage 201.6 V
UK AURIS_HV_HB_EE (OM12J68E)
