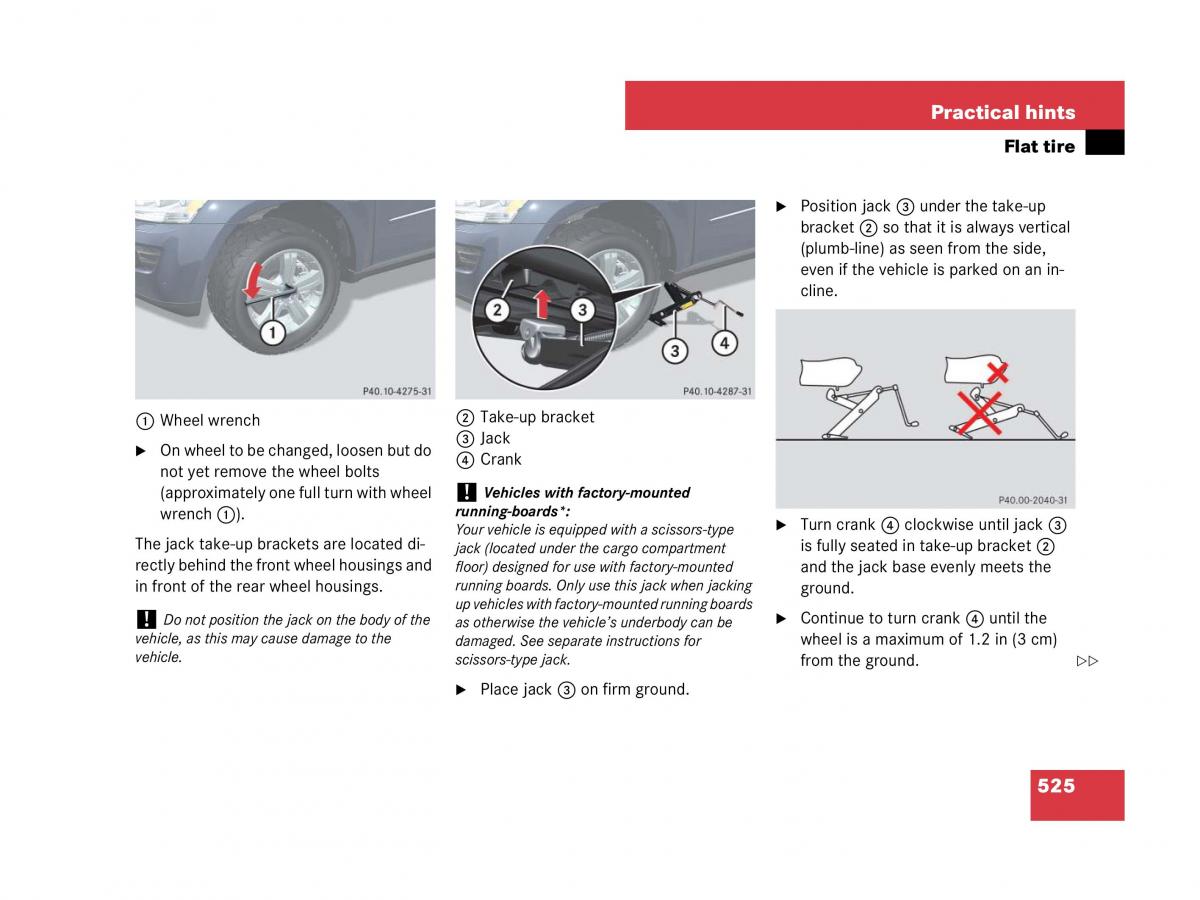

Practical hints
Flat tire
Position jack 3 under the take-up
bracket 2 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an in-
cline.
1Wheel wrench 2Take-up bracket
On wheel to be changed, loosen but do 3Jack
not yet remove the wheel bolts 4Crank
(approximately one full turn with wheel !Vehicles with factory-mounted
wrench1). running-boards*: Turn crank4 clockwise until jack3
The jack take-up brackets are located di-Your vehicle is equipped with a scissors-type
jack (located under the cargo compartment is fully seated in take-up bracket 2
rectly behind the front wheel housings and floor) designed for use with factory-mounted and the jack base evenly meets the
in front of the rear wheel housings.running boards. Only use this jack when jacking ground.
up vehicles with factory-mounted running boards Continue to turn crank 4 until the
!Do not position the jack on the body of the as otherwise the vehicles underbody can be
vehicle, as this may cause damage to the damaged. See separate instructions for wheel is a maximum of 1.2 in (3 cm)
vehicle. scissors-type jack. from the ground.
Place jack3 on firm ground.
525
