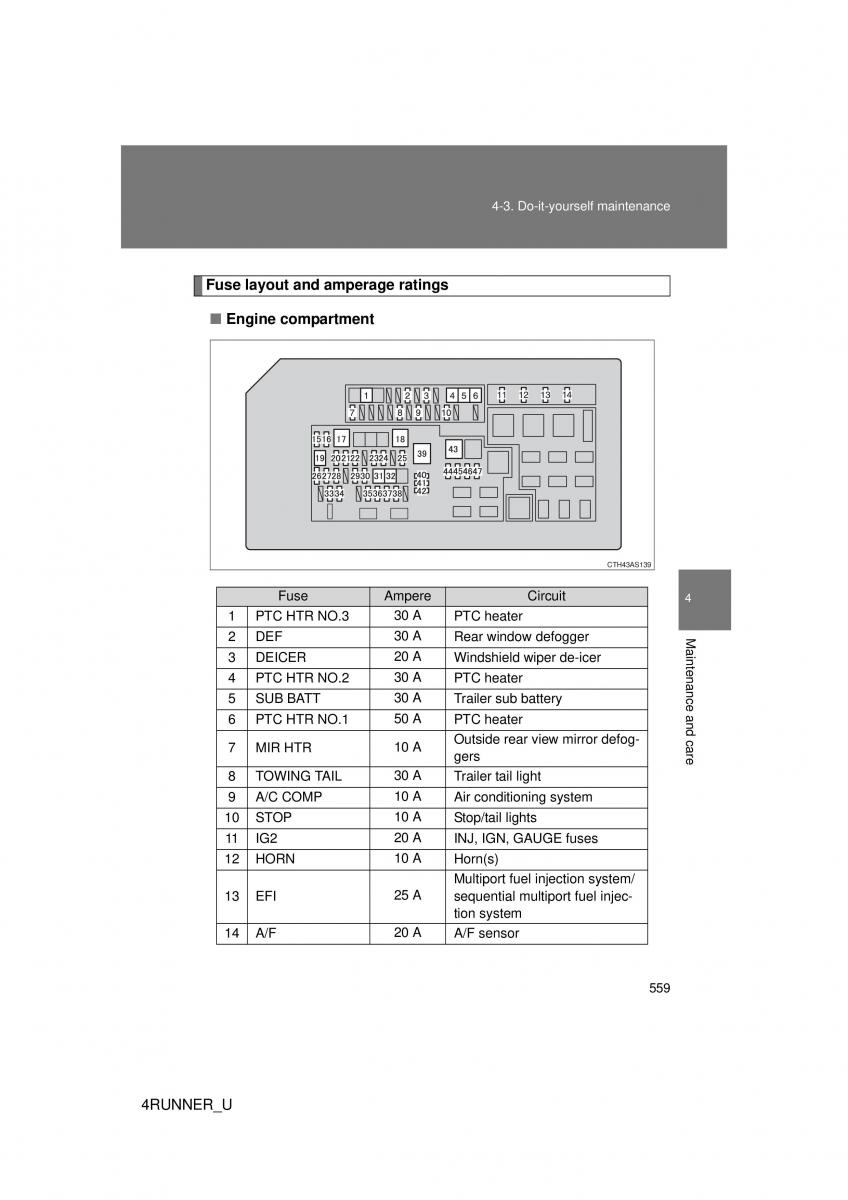

4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
■Engine compartment
CTH43AS139
Fuse Ampere Circuit 4
1 PTC HTR NO.3 30 A PTC heater
2 DEF 30 A Rear window defogger Mai
3 DEICER 20 A Windshield wiper de-icer n
4 PTC HTR NO.2 30 A PTC heater tenan
5 SUB BATT 30 A Trailer sub battery ce and care
6 PTC HTR NO.1 50 A PTC heater
7 MIR HTR 10 A Outside rear view mirror defog-
gers
8 TOWING TAIL 30 A Trailer tail light
9 A/C COMP 10 A Air conditioning system
10 STOP 10 A Stop/tail lights
11 IG2 20 A INJ, IGN, GAUGE fuses
12 HORN 10 A Horn(s)
Multiport fuel injection system/
13 EFI 25 A sequential multiport fuel injec-
tion system
14 A/F 20 A A/F sensor
559
4RUNNER_U
