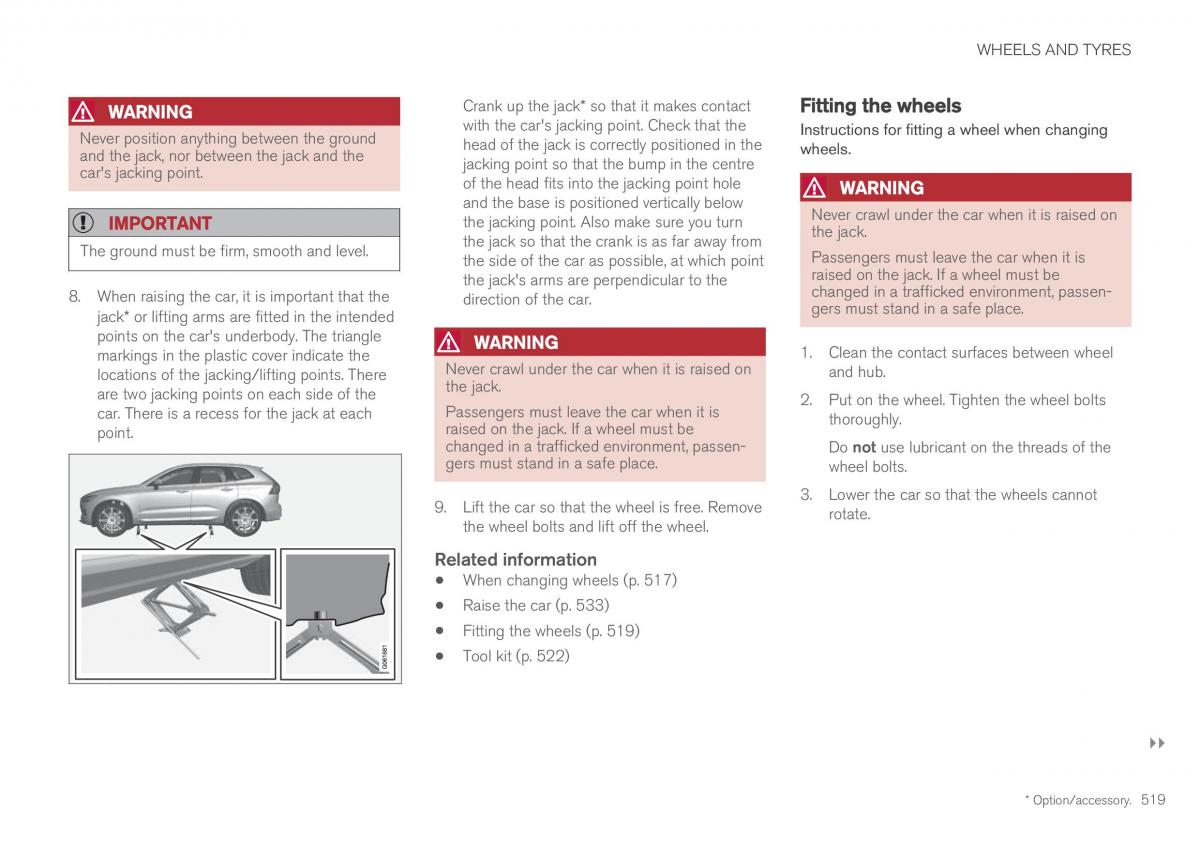

WHEELS AND TYRES
WARNING Crank up the jack* so that it makes contactFitting the wheels
Never position anything between the groundwith the cars jacking point. Check that theInstructions for fitting a wheel when changing
and the jack, nor between the jack and thehead of the jack is correctly positioned in thewheels.
cars jacking point. jacking point so that the bump in the centre
of the head fits into the jacking point holeWARNING
and the base is positioned vertically belowNever crawl under the car when it is raised on
IMPORTANT the jacking point. Also make sure you turnthe jack.
The ground must be firm, smooth and level.the jack so that the crank is as far away from
the side of the car as possible, at which pointPassengers must leave the car when it is
the jacks arms are perpendicular to theraised on the jack. If a wheel must be
8. When raising the car, it is important that thedirection of the car. changed in a trafficked environment, passen-
jack* or lifting arms are fitted in the intended gers must stand in a safe place.
points on the cars underbody. The triangleWARNING
markings in the plastic cover indicate the 1. Clean the contact surfaces between wheel
locations of the jacking/lifting points. ThereNever crawl under the car when it is raised onand hub.
are two jacking points on each side of thethe jack. 2. Put on the wheel. Tighten the wheel bolts
car. There is a recess for the jack at eachPassengers must leave the car when it isthoroughly.
point. raised on the jack. If a wheel must be
changed in a trafficked environment, passen-Do not use lubricant on the threads of the
gers must stand in a safe place. wheel bolts.
9.Lift the car so that the wheel is free. Remove3.Lower the car so that the wheels cannot
the wheel bolts and lift off the wheel.rotate.
Related information
When changing wheels (p. 517)
•
Raise the car (p. 533)
•
Fitting the wheels (p. 519)
•
Tool kit (p. 522)
•
}}
* Option/accessory. 519
