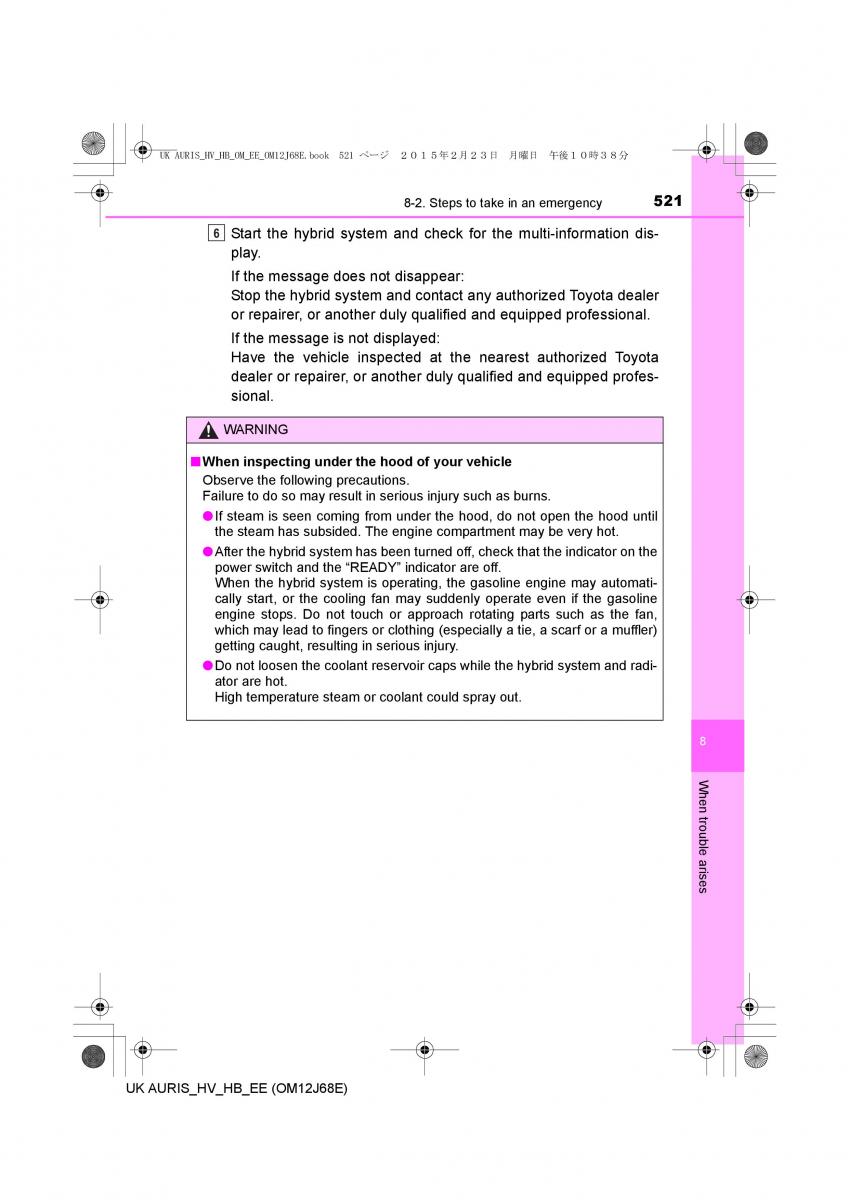

UK AURIS_HV_HB_OM_EE_OM12J68E.book 521 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分
8-2. Steps to take in an emergency521
6 Start the hybrid system and check for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
●After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
●Do not loosen the coolant reservoir caps while the hybrid system and radi-
ator are hot.
High temperature steam or coolant could spray out.
8
W
hen
trou
bl
e ari
s
e
s
UK AURIS_HV_HB_EE (OM12J68E)
