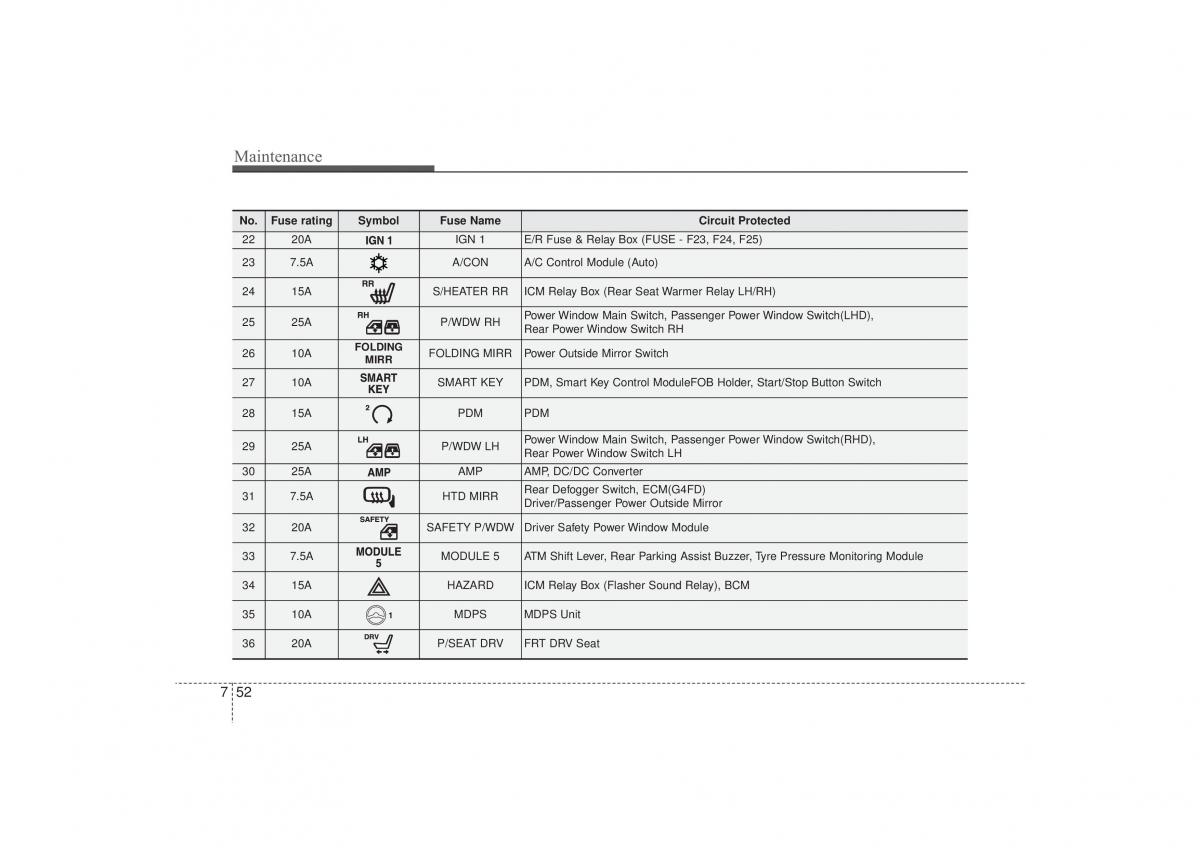

EL(FL) UK 7.QXP 3/4/2015 9:07 PM Page 52
Maintenance
No. Fuse ratingSymbol Fuse Name Circuit Protected
22 20A IGN 1 E/R Fuse & Relay Box (FUSE - F23, F24, F25)
23 7.5A A/CON A/C Control Module (Auto)
24 15A S/HEATER RRICM Relay Box (Rear Seat Warmer Relay LH/RH)
25 25A P/WDW RH Power Window Main Switch, Passenger Power Window Switch(LHD),
Rear Power Window Switch RH
26 10A FOLDING FOLDING MIRR Power Outside Mirror Switch
MIRR
27 10A SMART KEY PDM, Smart Key Control ModuleFOB Holder, Start/Stop Button Switch
28 15A PDM PDM
29 25A P/WDW LH Power Window Main Switch, Passenger Power Window Switch(RHD),
Rear Power Window Switch LH
30 25A AMP AMP, DC/DC Converter
31 7.5A HTD MIRR Rear Defogger Switch, ECM(G4FD)
Driver/Passenger Power Outside Mirror
32 20A SAFETY P/WDW Driver Safety Power Window Module
33 7.5A MODULE 5 ATM Shift Lever, Rear Parking Assist Buzzer, Tyre Pressure Monitoring Module
34 15A HAZARD ICM Relay Box (Flasher Sound Relay), BCM
35 10A MDPS MDPS Unit
36 20A P/SEAT DRV FRT DRV Seat
7 52
