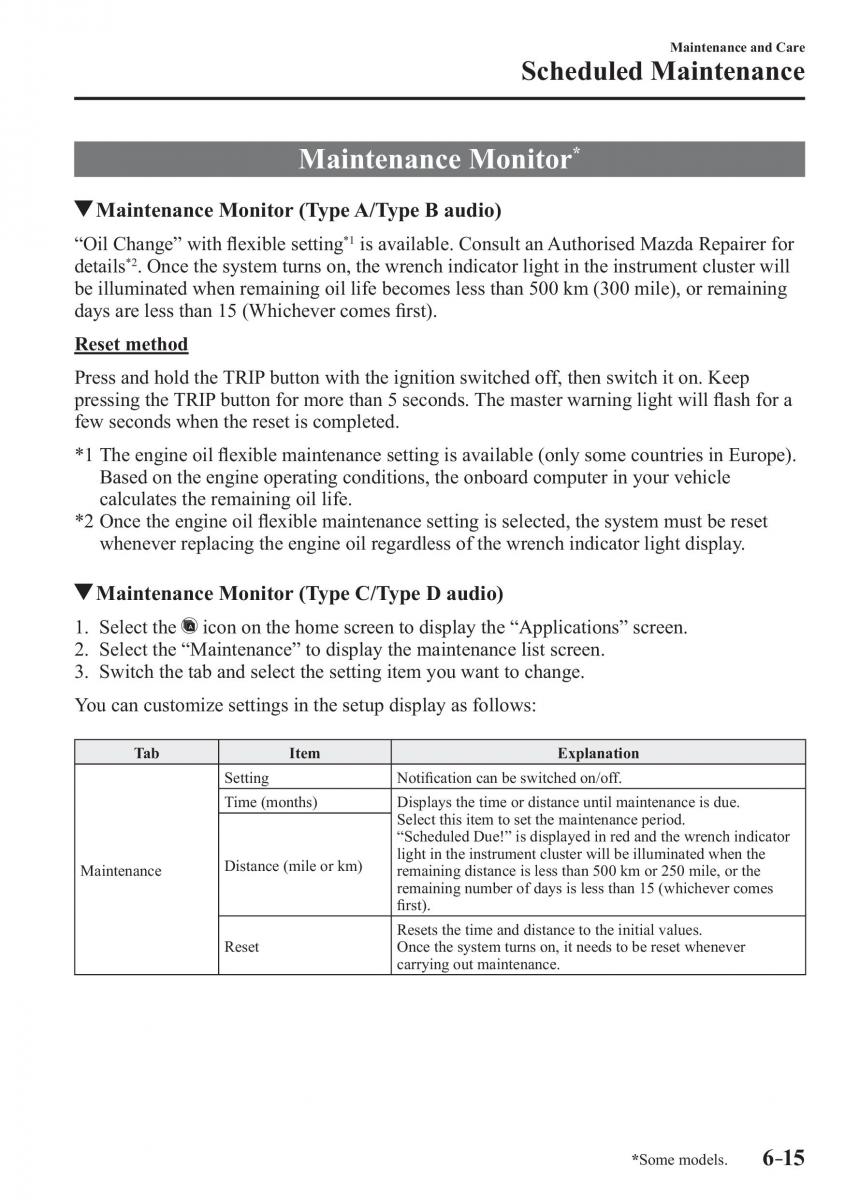

Maintenance and Care
Scheduled Maintenance
Maintenance Monitor *
Maintenance Monitor (Type A/Type B audio)
*1
“Oil Change” with fl exible setting is available. Consult an Authorised Mazda Repairer for
*2
details . Once the system turns on, the wrench indicator light in the instrument cluster will
be illuminated when remaining oil life becomes less than 500 km (300 mile), or remaining
days are less than 15 (Whichever comes fi rst).
method Reset
Press and hold the TRIP button with the ignition switched off, then switch it on. Keep
pressing the TRIP button for more than 5 seconds. The master warning light will fl ash for a
few seconds when the reset is completed.
The engine *1 oil fl exible maintenance setting is available (only some countries in Europe).
Based on the engine operating conditions, the onboard computer in your vehicle
calculates the remaining oil life.
Once the *2 engine oil fl exible maintenance setting is selected, the system must be reset
whenever replacing the engine oil regardless of the wrench indicator light display.
Maintenance Monitor (Type C/Type D audio)
Select the 1. icon on the home screen to display the “Applications” screen.
2. Select the “Maintenance” to display the maintenance list screen.
3. Switch the tab and select the setting item you want to change.
Y ou can customize settings in the setup display as follows:
Tab Item Explanation
Setting Notifi cation can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
“Scheduled Due!” is displayed in red and the wrench indicator
Distance (mile or km) light in the instrument cluster will be illuminated when the
Maintenance remaining distance is less than 500 km or 250 mile, or the
remaining number of days is less than 15 (whichever comes
fi rst).
Resets the time and distance to the initial values.
Reset Once the system turns on, it needs to be reset whenever
carrying out maintenance.
*Some models. 6–15
