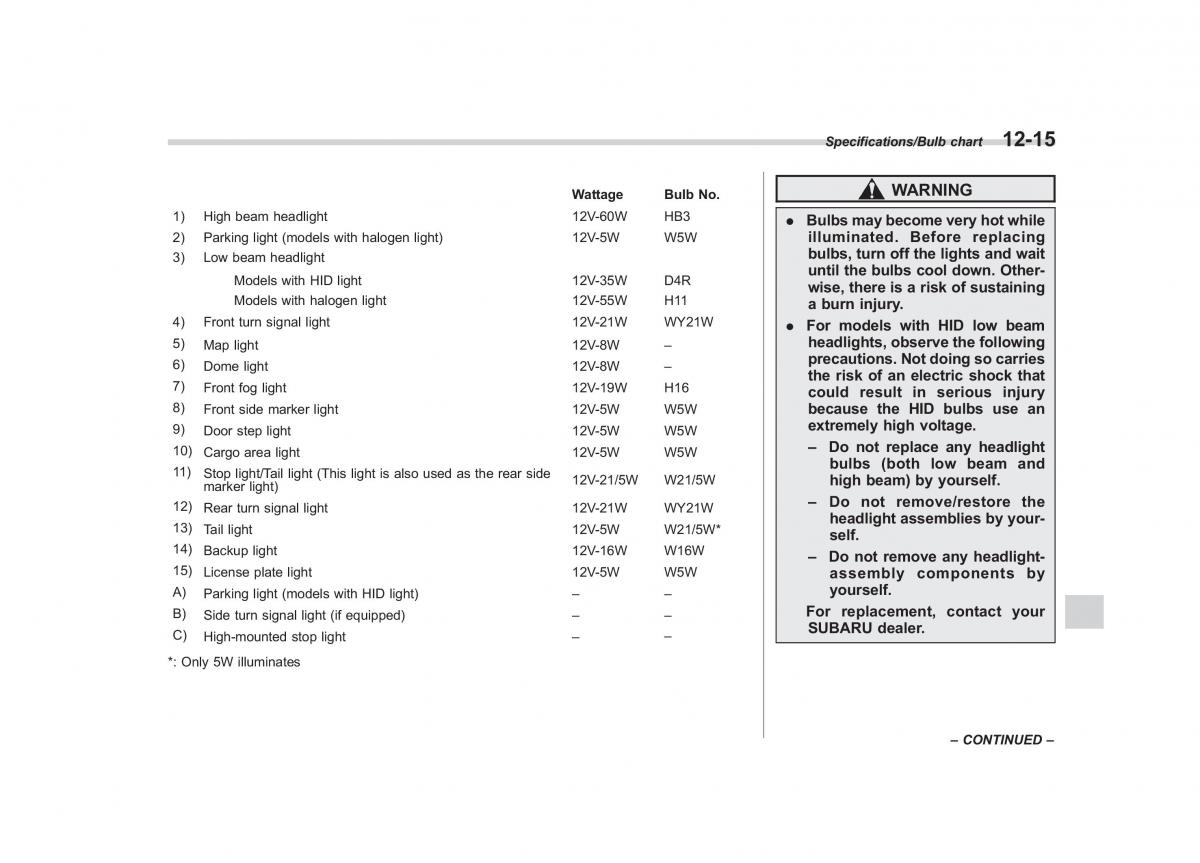

Specifications/Bulb chart12-15
Wattage Bulb No. WARNING
1) High beam headlight 12V-60W HB3 . Bulbsmaybecomeveryhotwhile
2) Parking light (models with halogen light)12V-5WW5W illuminated. Before replacing
3) Low beam headlight bulbs, turn off the lights and wait
until the bulbs cool down. Other-
Models with HID light 12V-35W D4R wise, there is a risk of sustaining
Models with halogen light 12V-55W H11 a burn injury.
4) Front turn signal light 12V-21W WY21W . For models with HID low beam
5) Map light 12V-8W – headlights, observe the following
6) Domelight 12V-8W – precautions. Not doing so carries
the risk of an electric shock that
7) Front fog light 12V-19W H16 could result in serious injury
8) Front side marker light 12V-5W W5W because the HID bulbs use an
9) Door step light 12V-5W W5W extremely high voltage.
10) Cargo area light 12V-5W W5W – Do not replace any headlight
11)Stop light/Tail light (This light is also used as the rear sidebulbs (both low beam and
marker light) 12V-21/5WW21/5W high beam) by yourself.
12) Rear turn signal light 12V-21W WY21W – Do not remove/restore the
13) headlight assemblies by your-
Tail light 12V-5W W21/5W* self.
14) Backup light 12V-16W W16W – Do not remove any headlight-
15) License plate light 12V-5W W5W assembly components by
A) yourself.
Parking light (models with HID light)––
B) For replacement, contact your
Side turn signal light (if equipped)––
C) High-mounted stop light – – SUBARUdealer.
*: Only 5W illuminates
– CONTINUED –
