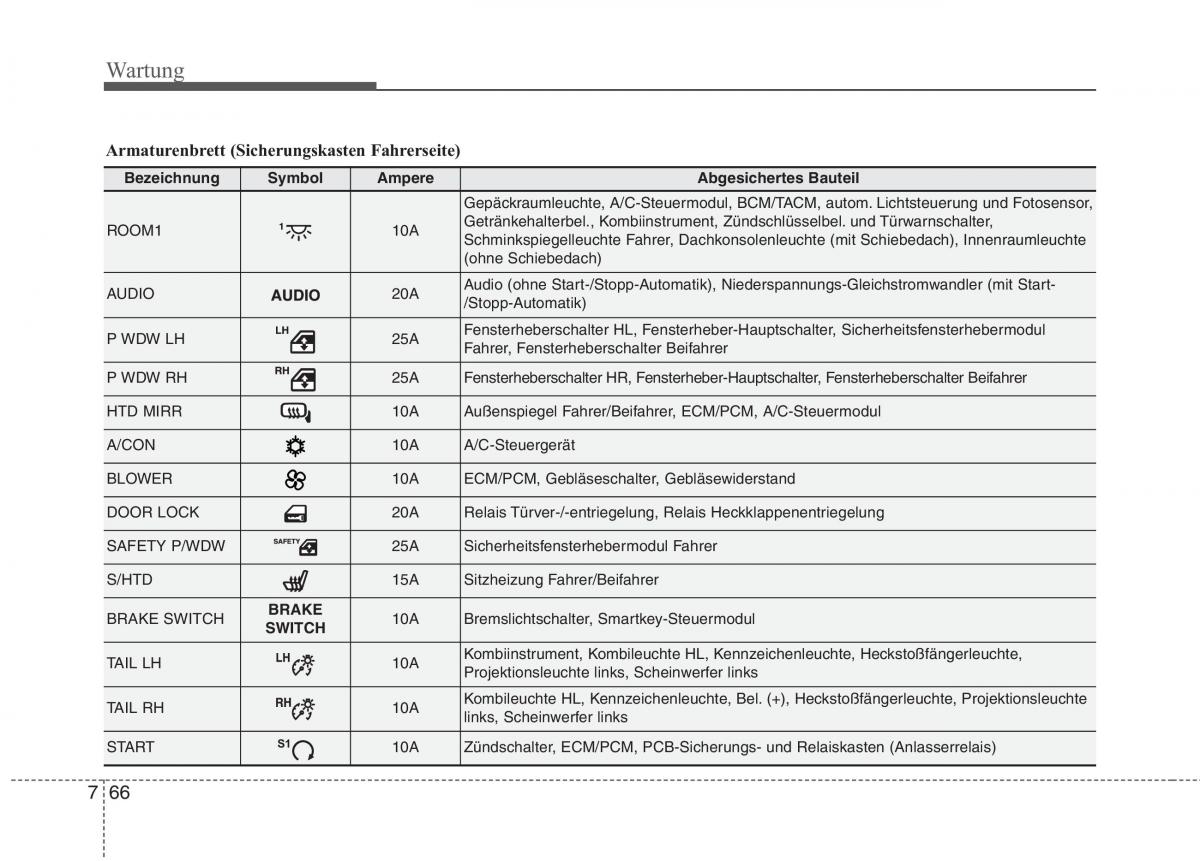

Wartung
Armaturenbrett (Sicherungskasten Fahrerseite)
Bezeichnung Symbol Ampere Abgesichertes Bauteil
Gepäckraumleuchte, A/C-Steuermodul, BCM/TACM, autom.Lichtsteuerung und Fotosensor,
ROOM1 10A Getränkehalterbel., Kombiinstrument, Zündschlüsselbel. und Türwarnschalter,
Schminkspiegelleuchte Fahrer, Dachkonsolenleuchte (mit Schiebedach), Innenraumleuchte
(ohne Schiebedach)
AUDIO 20A Audio (ohne Start-/Stopp-Automatik), Niederspannungs-Gleichstromwandler (mit Start-
/Stopp-Automatik)
P WDW LH 25A Fensterheberschalter HL, Fensterheber-Hauptschalter, Sicherheitsfensterhebermodul
Fahrer, Fensterheberschalter Beifahrer
P WDW RH 25A Fensterheberschalter HR, Fensterheber-Hauptschalter, Fensterheberschalter Beifahrer
HTD MIRR 10A Außenspiegel Fahrer/Beifahrer, ECM/PCM, A/C-Steuermodul
A/CON 10A A/C-Steuergerät
BLOWER 10A ECM/PCM, Gebläseschalter, Gebläsewiderstand
DOOR LOCK 20A Relais Türver-/-entriegelung, Relais Heckklappenentriegelung
SAFETY P/WDW 25A Sicherheitsfensterhebermodul Fahrer
S/HTD 15A Sitzheizung Fahrer/Beifahrer
BRAKE SWITCH BRAKE 10A Bremslichtschalter, Smartkey-Steuermodul
SWITCH
TAIL LH 10A Kombiinstrument, Kombileuchte HL, Kennzeichenleuchte, Heckstoßfängerleuchte,
Projektionsleuchte links, Scheinwerfer links
TAIL RH 10A Kombileuchte HL, Kennzeichenleuchte, Bel. (+), Heckstoßfängerleuchte, Projektionsleuchte
links, Scheinwerfer links
START S1 10A Zündschalter, ECM/PCM, PCB-Sicherungs- und Relaiskasten (Anlasserrelais)
7 66
