text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2009 - 2013:

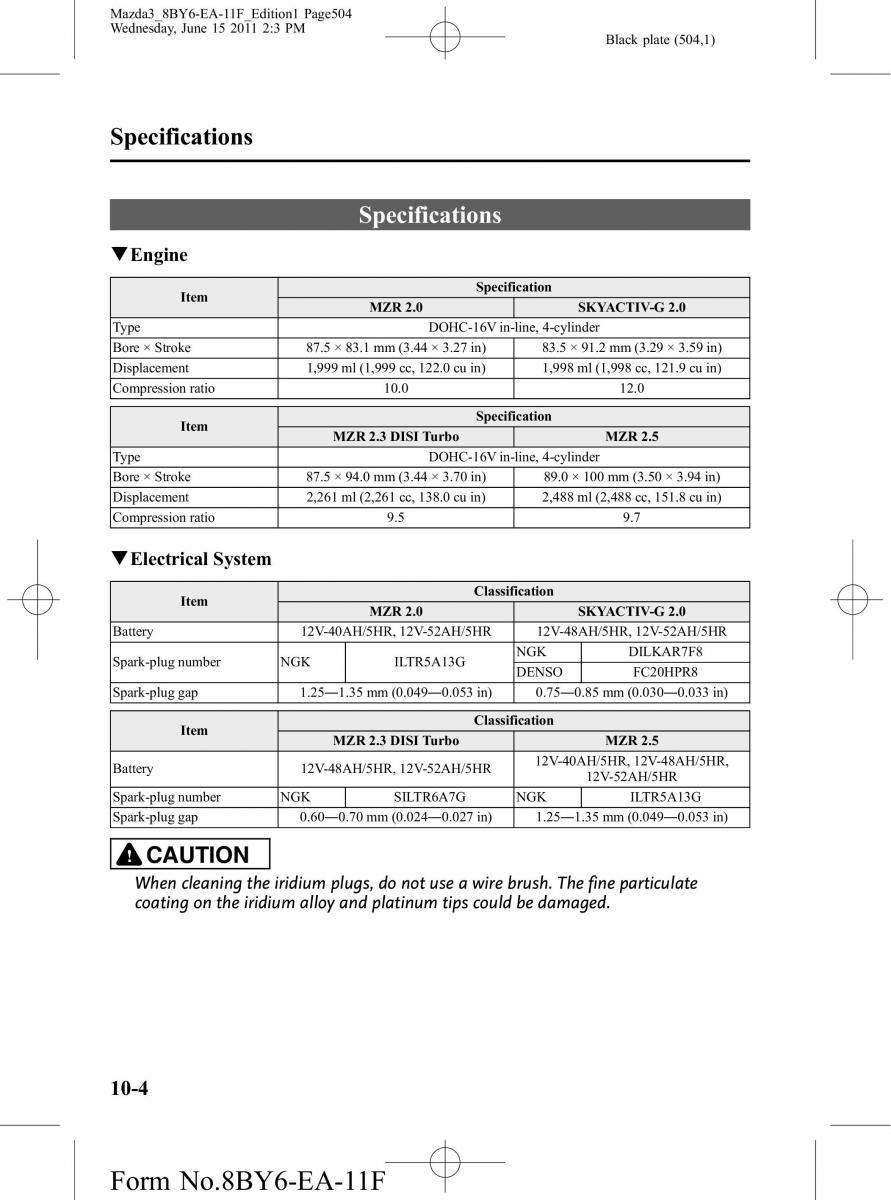

Mazda3_8BY6-EA-11F_Edition1 Page504 Wednesday, June 15 2011 2:3 PM Black plate (504,1) Specifications Specifications qEngine Item Specification MZR2.0 SKYACTIV-G2.0 Type DOHC-16Vin-line, 4-cylinder Bore × Stroke 87.5 × 83.1 mm (3.44 × 3.27 in)83.5 × 91.2 mm (3.29 × 3.59 in) Displacement 1,999 ml (1,999 cc, 122.0 cu in)1,998 ml (1,998 cc, 121.9 cu in) Compression ratio 10.0 12.0 Item Specification MZR2.3DISITurbo MZR2.5 Type DOHC-16Vin-line, 4-cylinder Bore × Stroke 87.5 × 94.0 mm (3.44 × 3.70 in)89.0 × 100 mm (3.50 × 3.94 in) Displacement 2,261 ml (2,261 cc, 138.0 cu in)2,488 ml (2,488 cc, 151.8 cu in) Compression ratio 9.5 9.7 qElectrical System Item Classification MZR2.0 SKYACTIV-G2.0 Battery 12V-40AH/5HR,12V-52AH/5HR12V-48AH/5HR,12V-52AH/5HR Spark-plug numberNGK ILTR5A13G NGK DILKAR7F8 DENSO FC20HPR8 Spark-plug gap 1.25―1.35mm(0.049―0.053in)0.75―0.85mm(0.030―0.033in) Item Classification MZR2.3DISITurbo MZR2.5 Battery 12V-48AH/5HR,12V-52AH/5HR12V-40AH/5HR,12V-48AH/5HR, 12V-52AH/5HR Spark-plug numberNGK SILTR6A7G NGK ILTR5A13G Spark-plug gap 0.60―0.70mm(0.024―0.027in)1.25―1.35mm(0.049―0.053in) CAUTION Whencleaningtheiridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged. 10-4 Form No.8BY6-EA-11F
