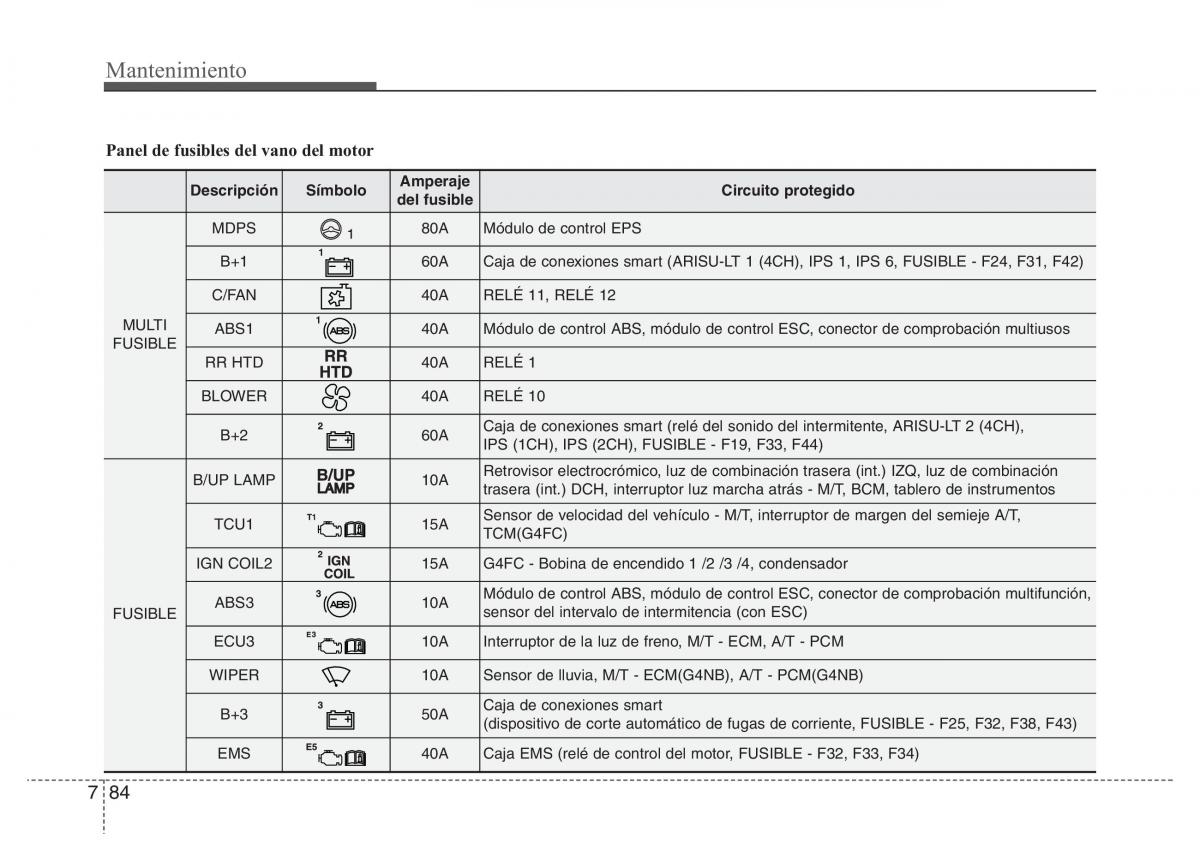

Mantenimiento
Panel de fusibles del vano del motor
DescripciónSímboloAmperaje Circuito protegido
del fusible
MDPS 80A Módulo de control EPS
B+1 60A Caja de conexiones smart (ARISU-LT 1 (4CH), IPS 1, IPS 6, FUSIBLE - F24, F31, F42)
C/FAN 40A RELÉ 11, RELÉ 12
MULTI ABS1 40A Módulo de control ABS, módulo de control ESC, conector de comprobación multiusos
FUSIBLE
RR HTD 40A RELÉ 1
BLOWER 40A RELÉ 10
B+2 60A Caja de conexiones smart (relé del sonido del intermitente, ARISU-LT 2 (4CH),
IPS (1CH), IPS (2CH), FUSIBLE - F19, F33, F44)
B/UP LAMP 10A Retrovisor electrocrómico, luz de combinación trasera (int.) IZQ, luz de combinación
trasera (int.) DCH, interruptor luz marcha atrás - M/T, BCM, tablero de instrumentos
TCU1 15A Sensor de velocidad del vehículo - M/T, interruptor de margen del semieje A/T,
TCM(G4FC)
IGN COIL2 15A G4FC - Bobina de encendido 1 /2 /3 /4, condensador
ABS3 10A Módulo de control ABS, módulo de control ESC, conector de comprobación multifunción,
FUSIBLE sensor del intervalo de intermitencia (con ESC)
ECU3 10A Interruptor de la luz de freno, M/T - ECM, A/T - PCM
WIPER 10A Sensor de lluvia, M/T - ECM(G4NB), A/T - PCM(G4NB)
B+3 50A Caja de conexiones smart
(dispositivo de corte automático de fugas de corriente, FUSIBLE - F25, F32, F38, F43)
EMS 40A Caja EMS (relé de control del motor, FUSIBLE - F32, F33, F34)
