UK AURIS_HV_HB_OM_EE_OM12J68E.book 503 ページ 㧞㧜㧝５年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟８分

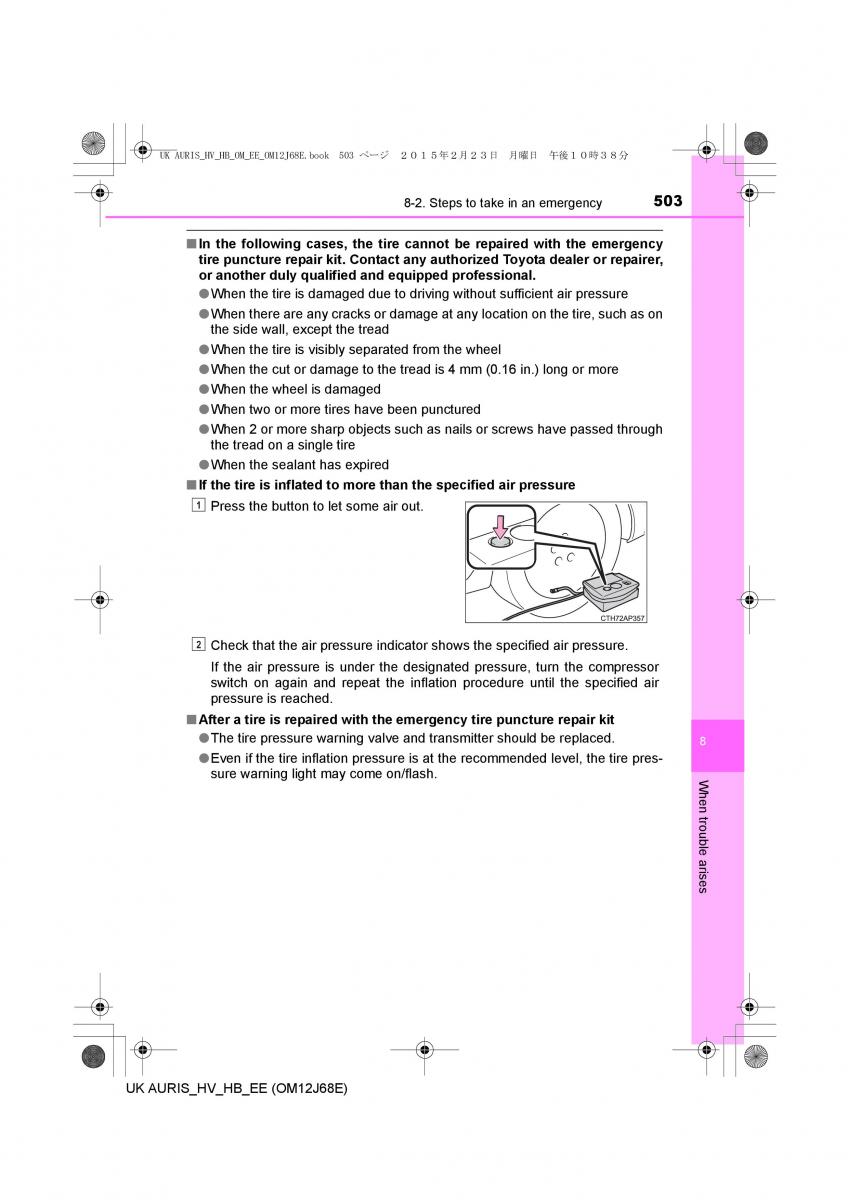

8-2. Steps to take in an emergency503
■In the following cases, the tire cannot be repaired with the emergency
tire puncture repair kit. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional.
●When the tire is damaged due to driving without sufficient air pressure
●When there are any cracks or damage at any location on the tire, such as on
the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When 2 or more sharp objects such as nails or screws have passed through
the tread on a single tire
●When the sealant has expired
■If the tire is inflated to more than the specified air pressure
1 Press the button to let some air out.
2 Check that the air pressure indicator shows the specified air pressure.
If the air pressure is under the designated pressure, turn the compressor
switch on again and repeat the inflation procedure until the specified air
pressure is reached.
■After a tire is repaired with the emergency tire puncture repair kit
●The tire pressure warning valve and transmitter should be replaced.8
●Even if the tire inflation pressure is at the recommended level, the tire pres-
sure warning light may come on/flash. W
hen
trou
bl
e ari
s
e
s
UK AURIS_HV_HB_EE (OM12J68E)
