text version of content this owner's manual page from owners manual to the vehicle Subaru Forester, year of production 2012:

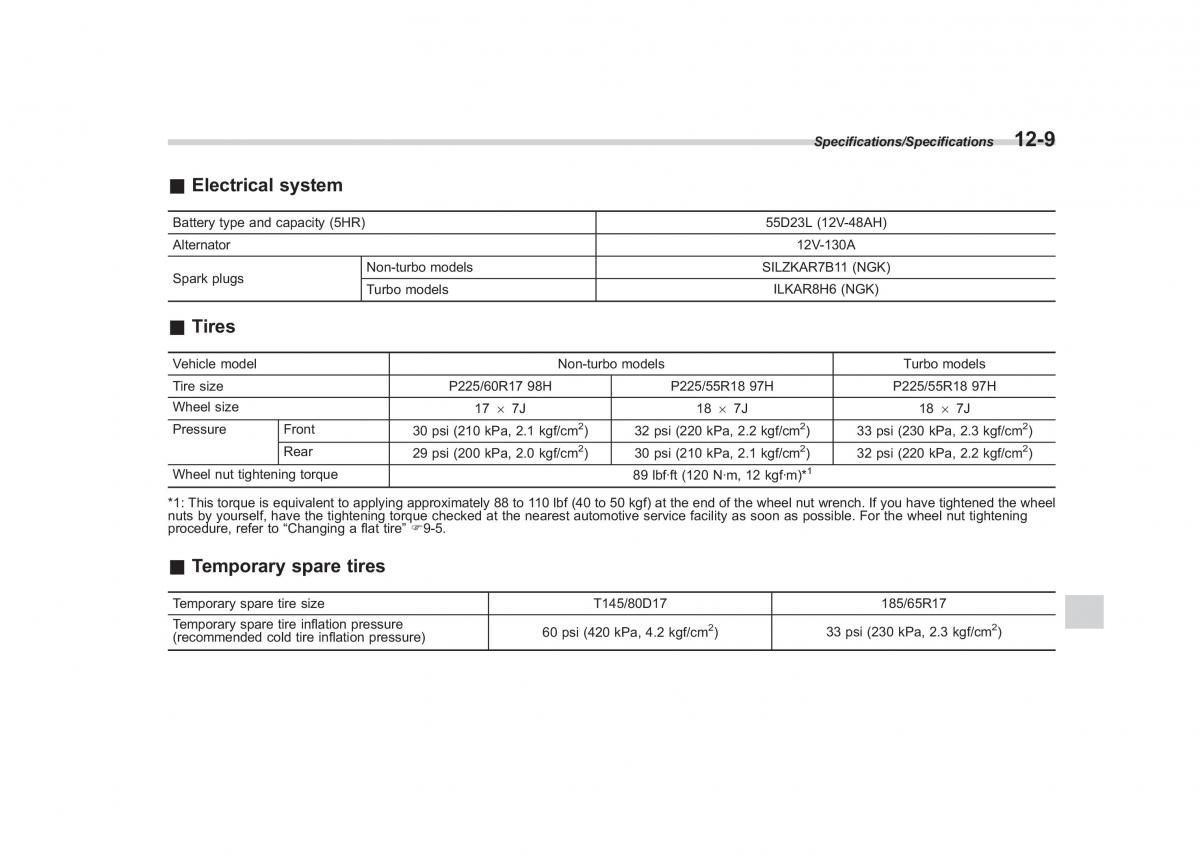

Specifications/Specifications12-9
&Electrical system
Battery type and capacity (5HR) 55D23L (12V-48AH)
Alternator 12V-130A
Non-turbo models SILZKAR7B11 (NGK)
Spark plugs
Turbo models ILKAR8H6 (NGK)
&Tires
Vehicle model Non-turbo models Turbo models
Tire size P225/60R17 98H P225/55R18 97H P225/55R18 97H
Wheel size 17 6 7J 18 6 7J 18 6 7J
Pressure Front 2 2 2
30 psi (210 kPa, 2.1 kgf/cm ) 32 psi (220 kPa, 2.2 kgf/cm ) 33 psi (230 kPa, 2.3 kgf/cm )
Rear 2 2 2
29 psi (200 kPa, 2.0 kgf/cm ) 30 psi (210 kPa, 2.1 kgf/cm ) 32 psi (220 kPa, 2.2 kgf/cm )
Wheel nut tightening torque 1
89 lbf·ft (120 N·m, 12 kgf·m)*
*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel
nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening
procedure, refer to “Changing a flat tire” F9-5.
&Temporary spare tires
Temporary spare tire size T145/80D17 185/65R17
Temporary spare tire inflation pressure 2 2
(recommended cold tire inflation pressure) 60 psi (420 kPa, 4.2 kgf/cm ) 33 psi (230 kPa, 2.3 kgf/cm )
