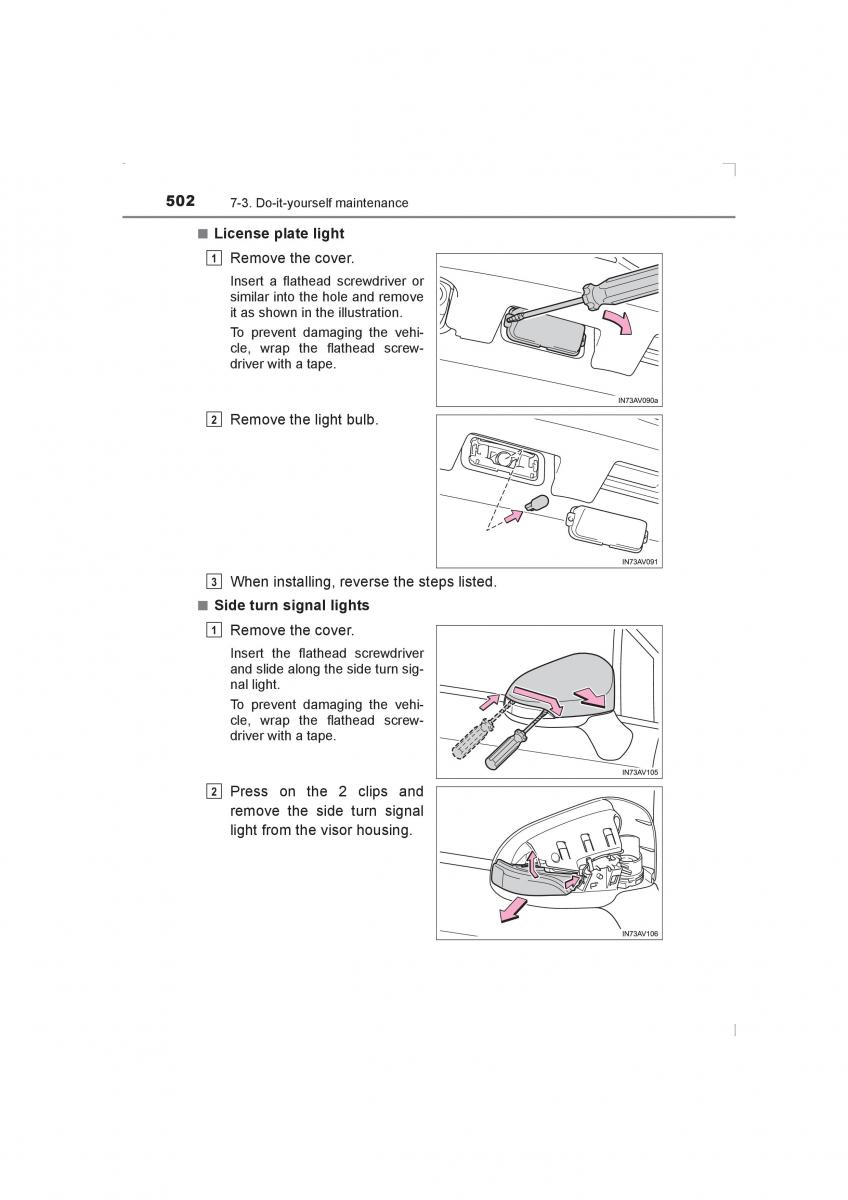

AVENSIS_OM_OM20C20E_(EE).book Page 502 Thursday, January 29, 2015 1:47 PM
502 7-3. Do-it-yourself maintenance
■ License plate light
1 Remove the cover.
Insert a flathead screwdriver or
similar into the hole and remove
it as shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
2 Remove the light bulb.
3 When installing, reverse the steps listed.
■ Side turn signal lights
1 Remove the cover.
Insert the flathead screwdriver
and slide along the side turn sig-
nal light.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
2 Press on the 2 clips and
remove the side turn signal
light from the visor housing.
AVENSIS_OM_OM20C20E_(EE)
