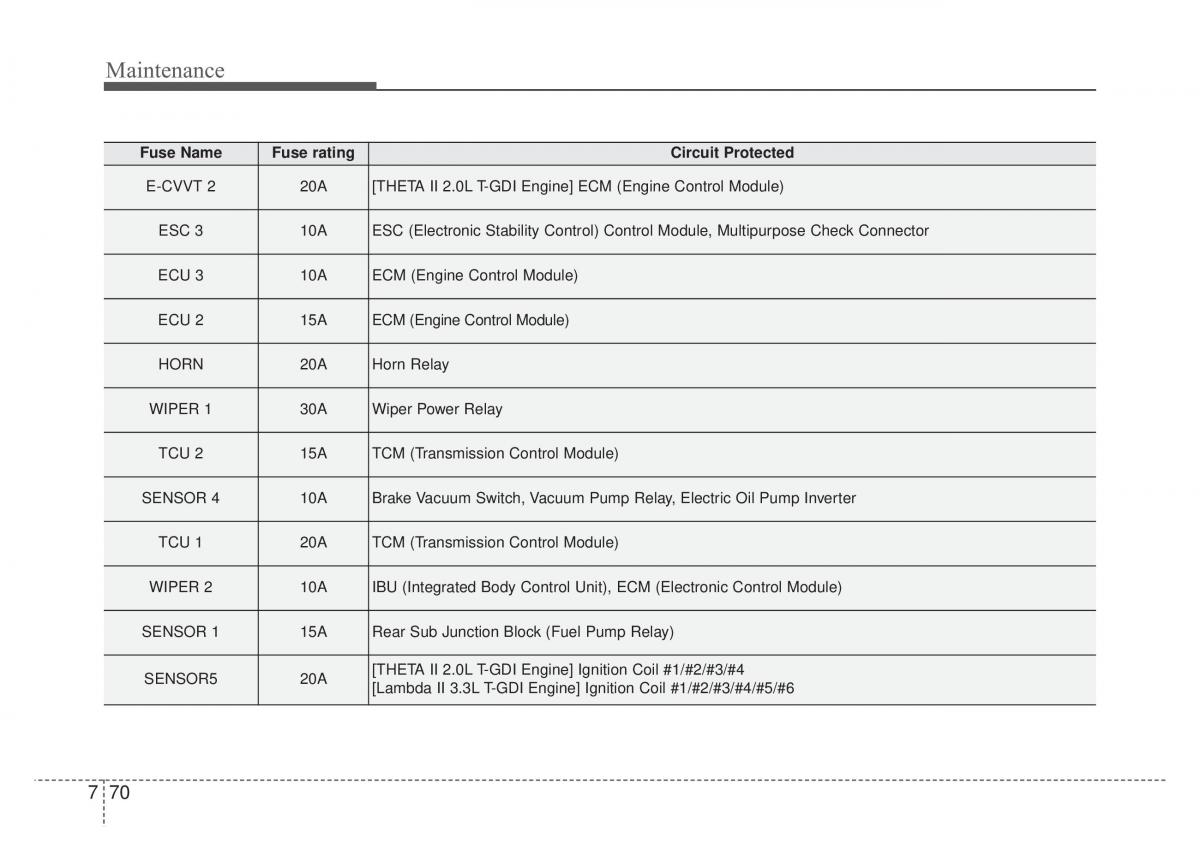

Maintenance
Fuse NameFuse rating Circuit Protected
E-CVVT 2 20A [THETA II 2.0L T-GDI Engine] ECM (Engine Control Module)
ESC 3 10A ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
ECU 3 10A ECM (Engine Control Module)
ECU 2 15A ECM (Engine Control Module)
HORN 20A Horn Relay
WIPER 1 30A Wiper Power Relay
TCU 2 15A TCM (Transmission Control Module)
SENSOR 4 10A Brake Vacuum Switch, Vacuum Pump Relay, Electric Oil Pump Inverter
TCU 1 20A TCM (Transmission Control Module)
WIPER 2 10A IBU (Integrated Body Control Unit), ECM (Electronic Control Module)
SENSOR 1 15A Rear Sub Junction Block (Fuel Pump Relay)
SENSOR5 20A [THETA II 2.0L T-GDI Engine] Ignition Coil #1/#2/#3/#4
[Lambda II 3.3L T-GDI Engine] Ignition Coil #1/#2/#3/#4/#5/#6
7 70
