text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

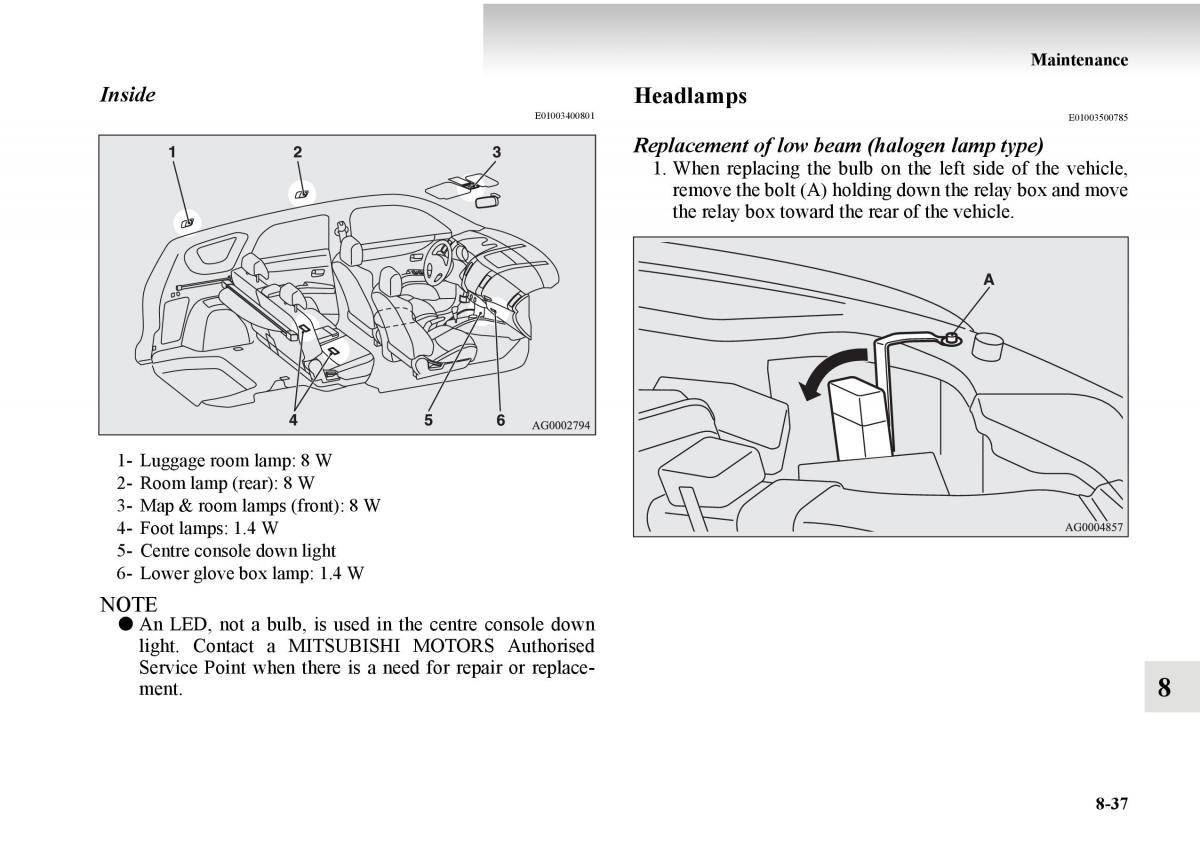

Maintenance Inside Headlamps E01003400801 E01003500785 Replacement of low beam (halogen lamp type) 1. When replacing the bulb on the left side of the vehicle, remove the bolt (A) holding down the relay box and move the relay box toward the rear of the vehicle. 1- Luggage room lamp: 8 W 2- Room lamp (rear): 8 W 3- Map & room lamps (front): 8 W 4- Foot lamps: 1.4 W 5- Centre console down light 6- Lower glove box lamp: 1.4 W NOTE ●An LED, not a bulb, is used in the centre console down light. Contact a MITSUBISHI MOTORS Authorised Service Point when there is a need for repair or replace- ment. 8 8-37
