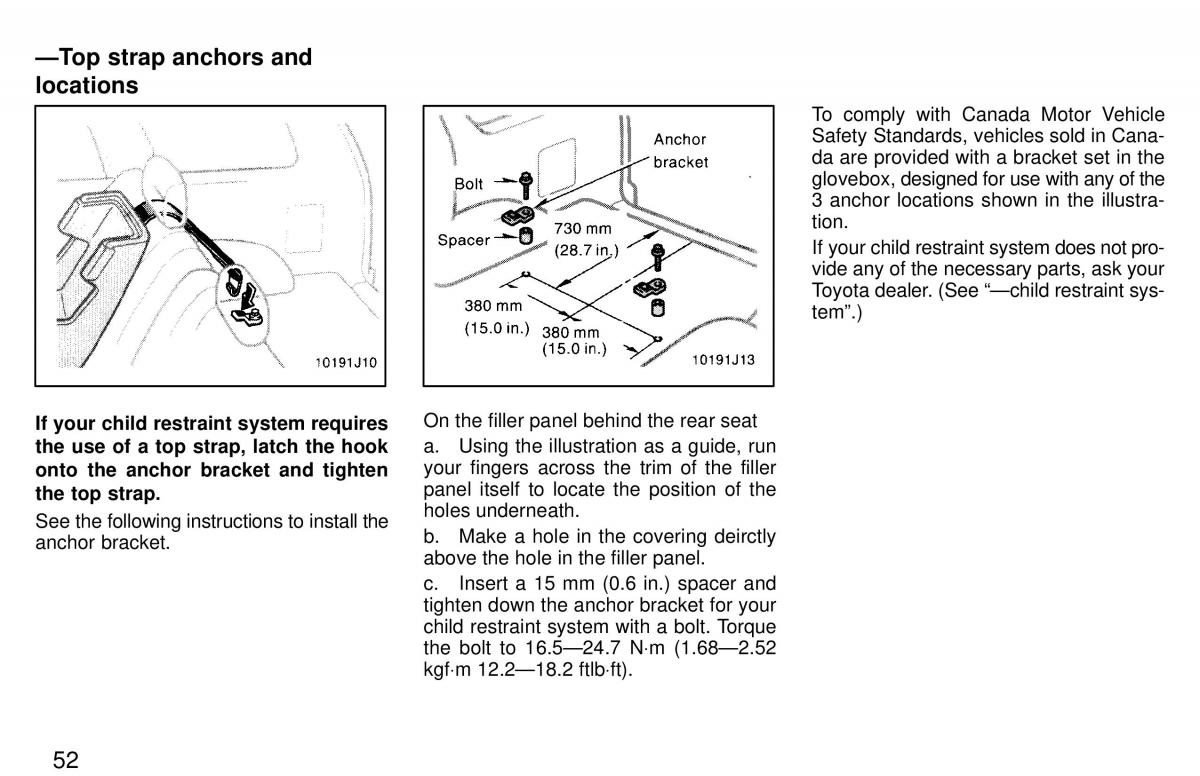

—Top strap anchors and locations To comply with Canada Motor Vehicle Safety Standards, vehicles sold in Cana- da are provided with a bracket set in the glovebox, designed for use with any of the 3 anchor locations shown in the illustra- tion. If your child restraint system does not pro- vide any of the necessary parts, ask your Toyota dealer. (See “—child restraint sys- tem”.) On the filler panel behind the rear seat If your child restraint system requires a. Using the illustration as a guide, run the use of a top strap, latch the hook your fingers across the trim of the filler onto the anchor bracket and tighten the top strap. panel itself to locate the position of the See the following instructions to install theholes underneath. anchor bracket. b. Make a hole in the covering deirctly above the hole in the filler panel. c. Insert a 15 mm (0.6 in.) spacer and tighten down the anchor bracket for your child restraint system with a bolt. Torque the bolt to 16.5—24.7 N⋅m (1.68—2.52 kgf⋅m 12.2—18.2 ftlb⋅ft). 52
