text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 1997 - 2002:

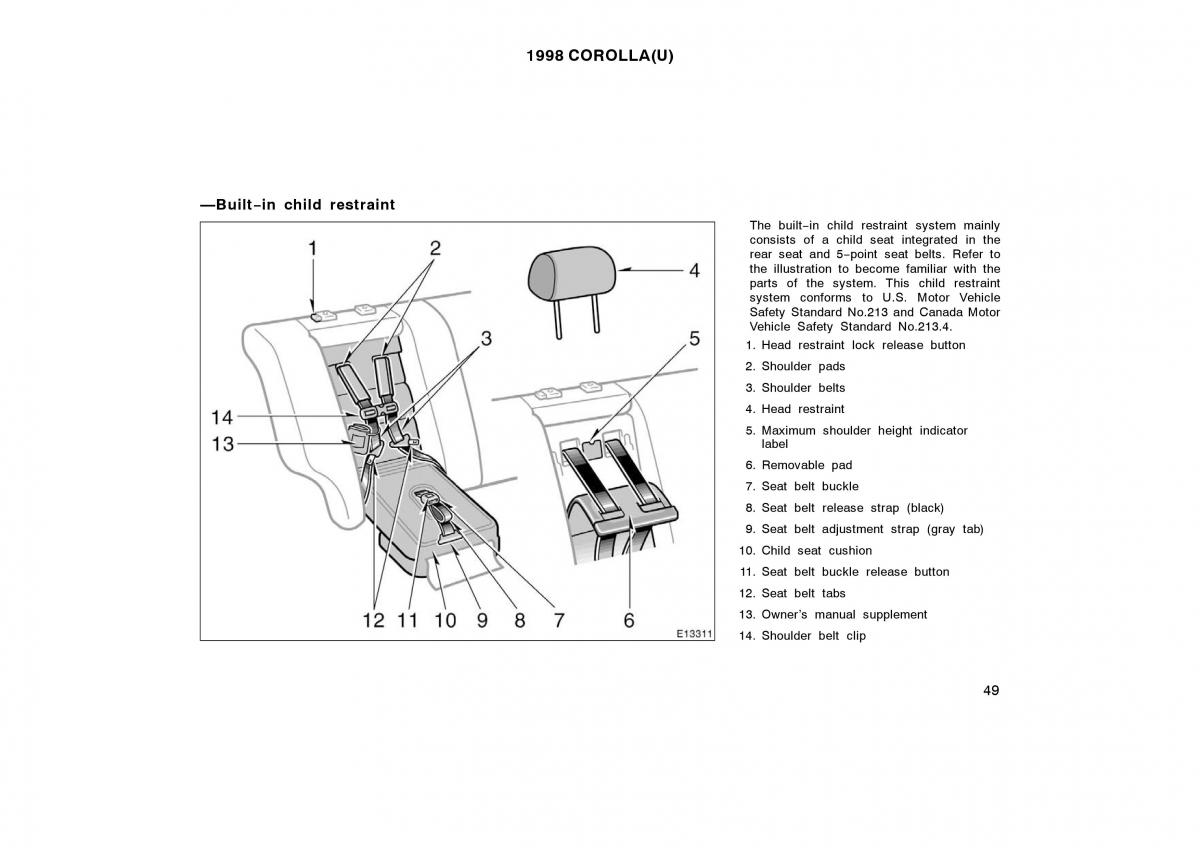

1998 COROLLA(U) —Built−in child restraint The built−in child restraint system mainly consists of a child seat integrated in the rear seat and −5point seat belts. Refer to the illustration to become familiar with the parts of the system. This child restraint system conforms to U.S. Motor Vehicle Safety Standard No.213 and Canada Motor Vehicle Safety Standard No.213.4. 1. Head restraint lock release button 2. Shoulder pads 3. Shoulder belts 4. Head restraint 5. Maximum shoulder height indicator label 6. Removable pad 7. Seat belt buckle 8. Seat belt release strap (black) 9. Seat belt adjustment strap (gray tab) 10. Child seat cushion 11. Seat belt buckle release button 12. Seat belt tabs 13. Owner’s manual supplement 14. Shoulder belt clip 49
