text version of content this owner's manual page from owners manual to the vehicle VW Transporter T4, year of production 1990 - 2003:

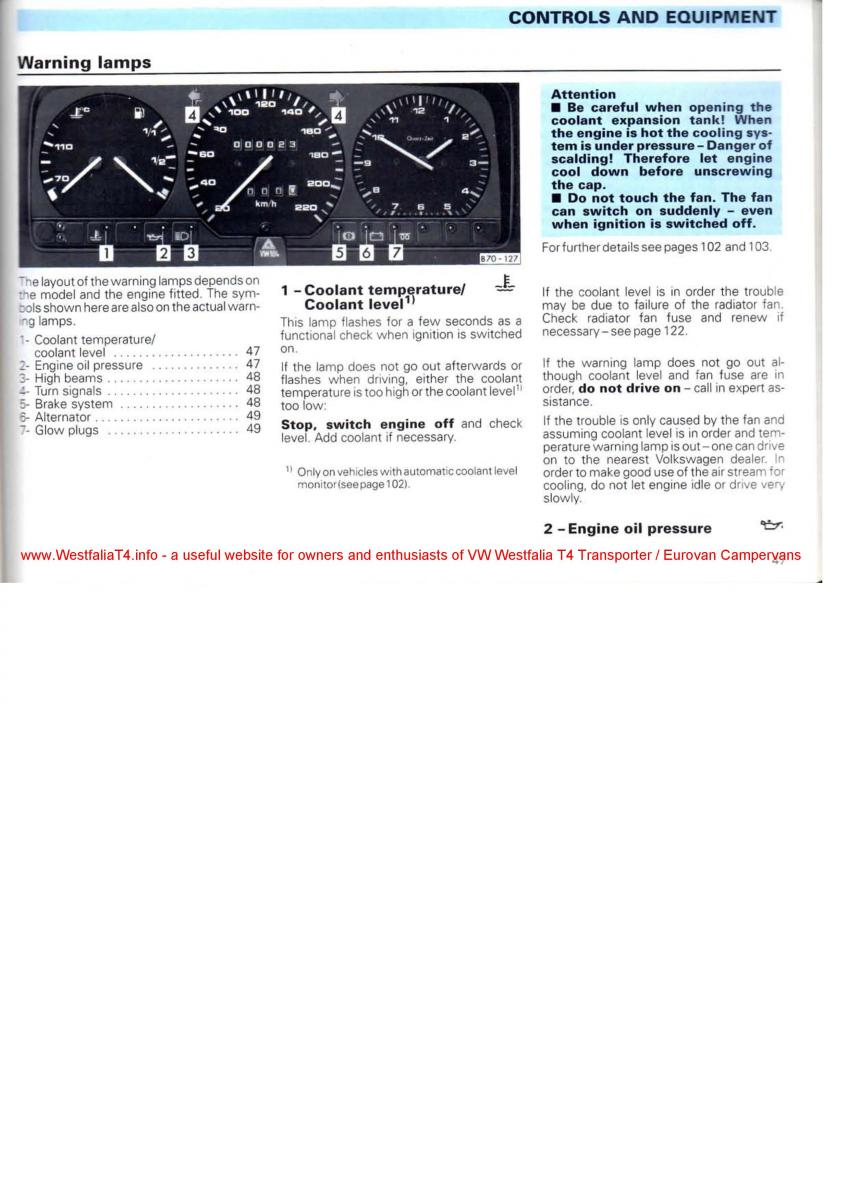

CONTROLS AND EQUIPMENT Warning lamps zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA Attention Be careful when opening the coolant expansion tank! When the engine is hot the cooling sys- tem is under pressure - Danger of scalding! Therefore let engine cool down before unscrewing the cap. Do not touch the fan. The fan can switch on suddenly - even when ignition is switched off. For further details see pages 102 and 103. ~ne layout of the warning lamps depends on Coolant temperature/ :ne model and the engine fitted. The sym- If the coolant level is in order the trouble : ols shown here are also on the actual warn- Coolant level1' may be due to failure of the radiator fan. ng lamps. Check radiator fan fuse and renew if This lamp flashes for a few seconds as a necessary-seepage 122. |- Coolant temperature/ functional check when ignition is switched on. coolant level 47 1- Engine oil pressure 47 zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBAIf the warning lamp does not go out al- If the lamp does not go out afterwards or I- High beams 48 though coolant level and fan fuse are in flashes when driving, either the coolant -- Turn signals 48 order, do not drive on - call in expert as- temperature is too high orthe coolant level1' sistance. 5- Brake system 48 zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA too low: V Alternator 49 If the trouble is only caused by the fan and Stop, switch engine off and check " Glow plugs 49 level. Add coolant if necessary. assuming coolant level is in order and tem- perature warning lamp is out - one can drive on to the nearest Volkswagen dealer. In 11 Only on vehicles with automatic coolant level order to make good use of the air stream for monitor(see page 102). cooling, do not let engine idle or drive very slowly. 2 - Engine oil pressure www.WestfaliaT4.info - a useful website for owners and enthusiasts of VW Westfalia T4 Transporter / Eurovan Campervans -7
