text version of content this owner's manual page from owners manual to the vehicle Toyota Corolla, year of production 2013:

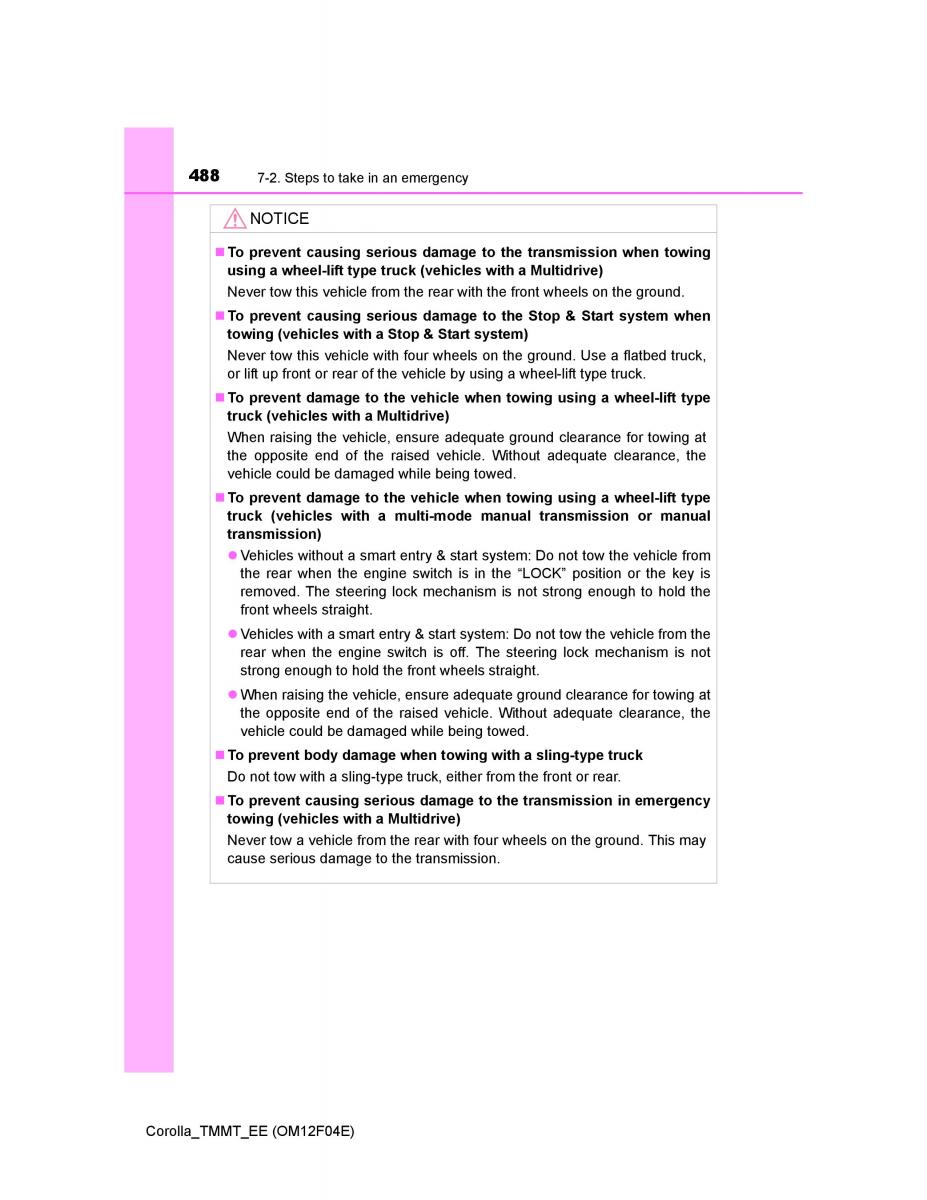

488 7-2. Steps to take in an emergency NOTICE To prevent causing serious damato the transmission when towge ing using a wheel-lift type truck (vehicles with a Multidrive) Never tow this vehicle from the rear with the front wheels on the ground. To prevent causing serious to the Sdamage top & Start system when towing (vehicles with a Stop & Start system) Never tow this vehicle with four wheels on the ground. Use a flatbed truck, or lift up front or rear of the vehicle by using a wheel-lift type truck. To prevent damage to the vehicle when towing using a wheel-lift type truck (vehicles with a Multidrive) When raising the vehicle, ensure adequate ground clearance for towing at the opposite end of the raised vehicle. Without adequate clearance, the vehicle could be damaged while being towed. To prevent damage to the vehicle when towing using a wheel-lift type truck (vehicles with a multi-mode manual transmission or manual transmission) Vehicles without a smart entry & stt syarstem: Do not tow the vehicle from the rear when the engine switch is in the “LOCK” position or the key is removed. The steering lock mechanism is not strong enough to hold the front wheels straight. Vehicles with a smart entry & start system: Do not tow the vehicle from the rear when the engine switch is off. The steering lock mechanism is not strong enough to hold the front wheels straight. When raising the vehicle, ensure adequate ground clearance for towing at the opposite end of the raised vehicle. Without adequate clearance, the vehicle could be damaged while being towed. To prevent body damage when towing with a sling-type truck Do not tow with a sling-type truck, either from the front or rear. To prevent causing serious damage to the transmission in emergency towing (vehicles with a Multidrive) Never tow a vehicle from the rear with four wheels on the ground. This may cause serious damage to the transmission. Corolla_TMMT_EE (OM12F04E)
