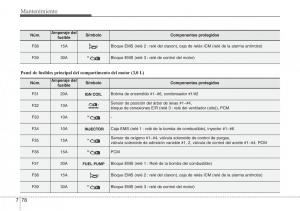

Mantenimiento
Núm. Amperaje del Símbolo Componentes protegidos
fusible
F28 20A Caja de relés ICM (relé del lavafaros)
Interruptor de límite del soporte lumbar del conductor, módulo IMS del conductor, caja de
F29 30A DRV relés del asiento eléctrico IZQ,
FUSE interruptor límite de reclinación del asiento del conductor
Caja de conexiones smart (fusible - F37/F34,
F30 40A 1 dispositivo de corte automático de fugas de corriente (relé de corte automático de fugas de
corriente, interruptor de corte automático de fugas de corriente, IPS 5))
Panel de fusibles principal del compartimento del motor(2,4 L)
Núm. Amperaje del Símbolo Componentes protegidos
fusible
F31 20A Bobinas de encendido #1~#4, condensador
F32 10A S2 Sensor de posición del árbol de levas 1/2, válvula de control del aceite 1/2,
fusible E/R y caja de relés (relé 3 : relé del ventilador (2))
F33 10A E2 -
F34 10A Caja EMS (relé 1 : relé de la bomba de combustible), inyector #1~#4
F35 15A S1 Sensor de posición del árbol de levas, sensor de oxígeno (ARRIBA/ABAJO),
válvula solenoide de control de purgas, PCM, válvula solenoide de admisión variable
F36 15A E3 PCM
F37 20A FUEL PUMP Bloque EMS (relé 1 : Relé de la bomba del combustible)
