owners manual Toyota RAV4

all ratings: 1 average rating: 5

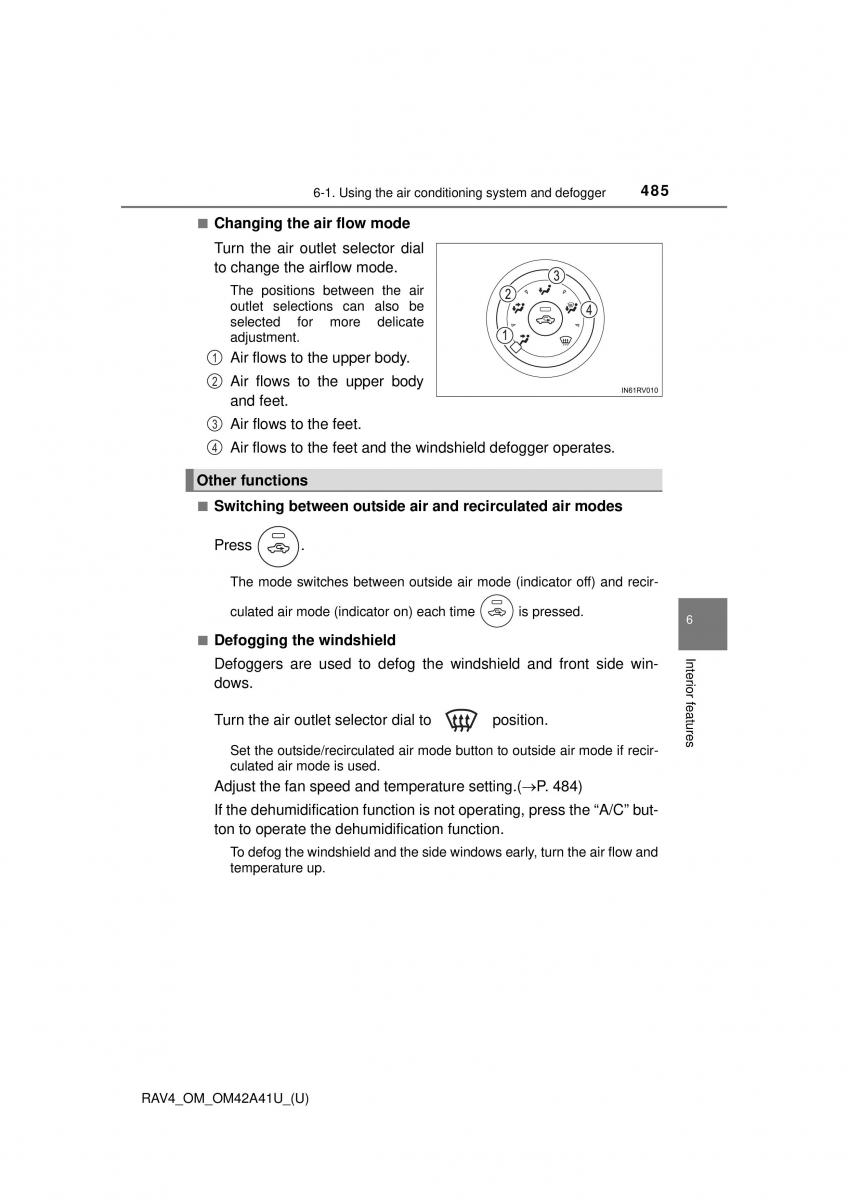

6-1. Using the air conditioning system and defogger485 ■ Changing the air flow mode Turn the air outlet selector dial to change the airflow mode. The positions between the air outlet selections can also be selected for more delicate adjustment. 1 Air flows to the upper body. 2 Air flows to the upper body and feet. 3 Air flows to the feet. 4 Air flows to the feet and the windshield defogger operates. Other functions ■ Switching between outside air and recirculated air modes Press . The mode switches between outside air mode (indicator off) and recir- culated air mode (indicator on) each time is pressed.6 ■ Defogging the windshield In Defoggers are used to defog the windshield and front side win- te dows. rior fe Turn the air outlet selector dial to position. atures Set the outside/recirculated air mode button to outside air mode if recir- culated air mode is used. Adjust the fan speed and temperature setting.(P. 484) If the dehumidification function is not operating, press the “A/C” but- ton to operate the dehumidification function. To defog the windshield and the side windows early, turn the air flow and temperature up. RAV4_OM_OM42A41U_(U)
