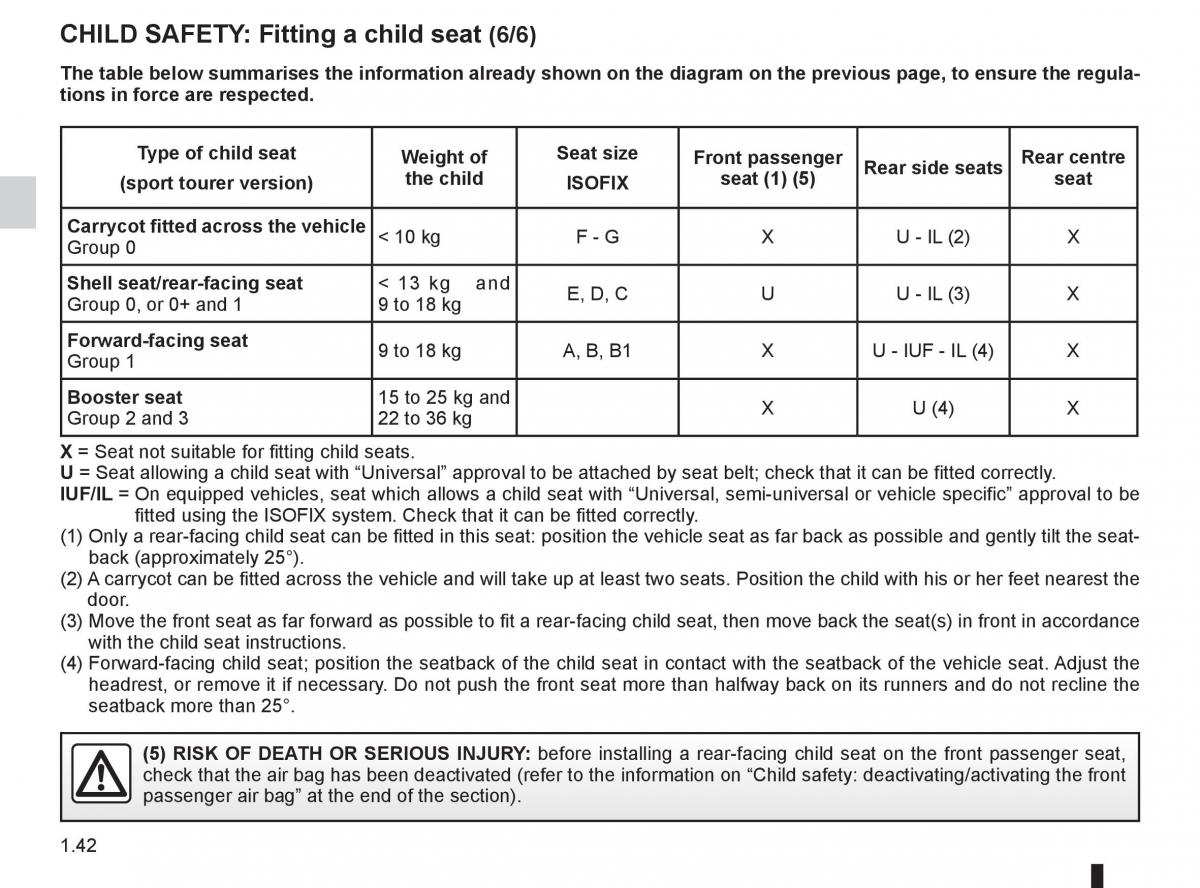

cHILd sAfETY: fitting a child seat (6/6)
The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-
tions in force are respected.
Type of child seat Weight of seat size front passenger Rear side seats Rear centre
(sport tourer version) the child IsOfIX seat (1) (5) seat
carrycot fitted across the vehicle < 10 kg F - G X U - IL (2) X
Group 0
shell seat/rear-facing seat < 13 kg and E, D, C U U - IL (3) X
Group 0, or 0+ and 1 9 to 18 kg
forward-facing seat 9 to 18 kg A, B, B1 X U - IUF - IL (4) X
Group 1
Booster seat 15 to 25 kg and X U (4) X
Group 2 and 3 22 to 36 kg
X = Seat not suitable for fitting child seats.
U = Seat allowing a child seat with “Universal” approval to be attached by seat belt; check that it can be fitted correctly.
IUf/IL = On equipped vehicles, seat which allows a child seat with “Universal, semi-universal or vehicle specific” approval to be
fitted using the ISOFIX system. Check that it can be fitted correctly.
(1) Only a rear-facing child seat can be fitted in this seat: position the vehicle seat as far back as possible and gently tilt the seat-
back (approximately 25°).
(2) A carrycot can be fitted across the vehicle and will take up at least two seats. Position the child with his or her feet nearest the
door.
(3) Move the front seat as far forward as possible to fit a rear-facing child seat, then move back the seat(s) in front in accordance
with the child seat instructions.
(4) Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and do not recline the
seatback more than 25°.
(5) RIsK Of dEATH OR sERIOUs INJURY: before installing a rear-facing child seat on the front passenger seat,
check that the air bag has been deactivated (refer to the information on “Child safety: deactivating/activating the front
passenger air bag” at the end of the section).
1.42
ENG_UD18892_5
ENG_NU_837-6_BDK95_Renault_1 Sécurité enfants : installation du siège enfant (X95 - B95 - D95 - Renault)
