owners manual Mitsubishi Outlander

owners manual Mitsubishi Outlander - year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 - Mitsubishi Outlander II 2 owners manual EN

Document: pdf (23.76 MB) 544 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander, year of production 2006 - 2013:

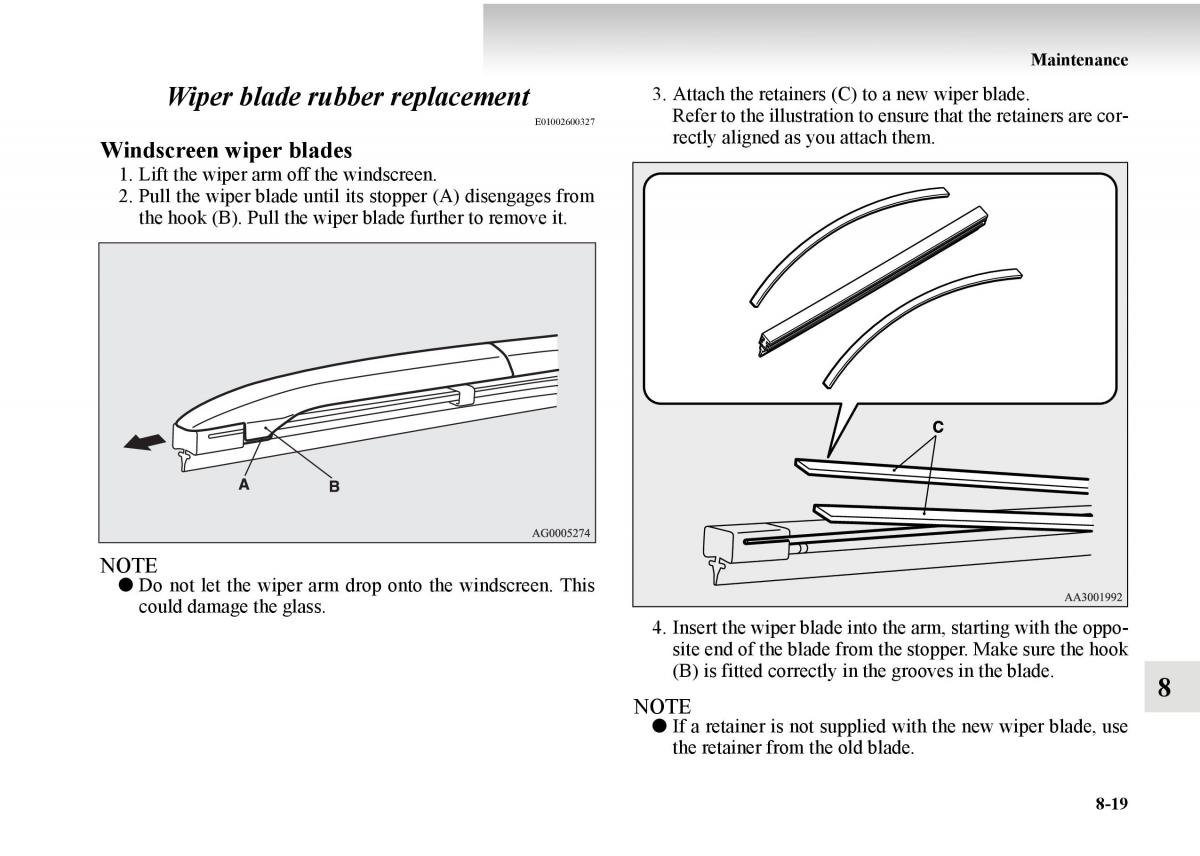

Maintenance Wiper blade rubber replacement 3. Attach the retainers (C) to a new wiper blade. E01002600327 Refer to the illustration to ensure that the retainers are cor- Windscreen wiper blades rectly aligned as you attach them. 1. Lift the wiper arm off the windscreen. 2. Pull the wiper blade until its stopper (A) disengages from the hook (B). Pull the wiper blade further to remove it. NOTE ●Do not let the wiper arm drop onto the windscreen. This could damage the glass. 4. Insert the wiper blade into the arm, starting with the oppo- site end of the blade from the stopper. Make sure the hook (B) is fitted correctly in the grooves in the blade. 8 NOTE ●If a retainer is not supplied with the new wiper blade, use the retainer from the old blade. 8-19
